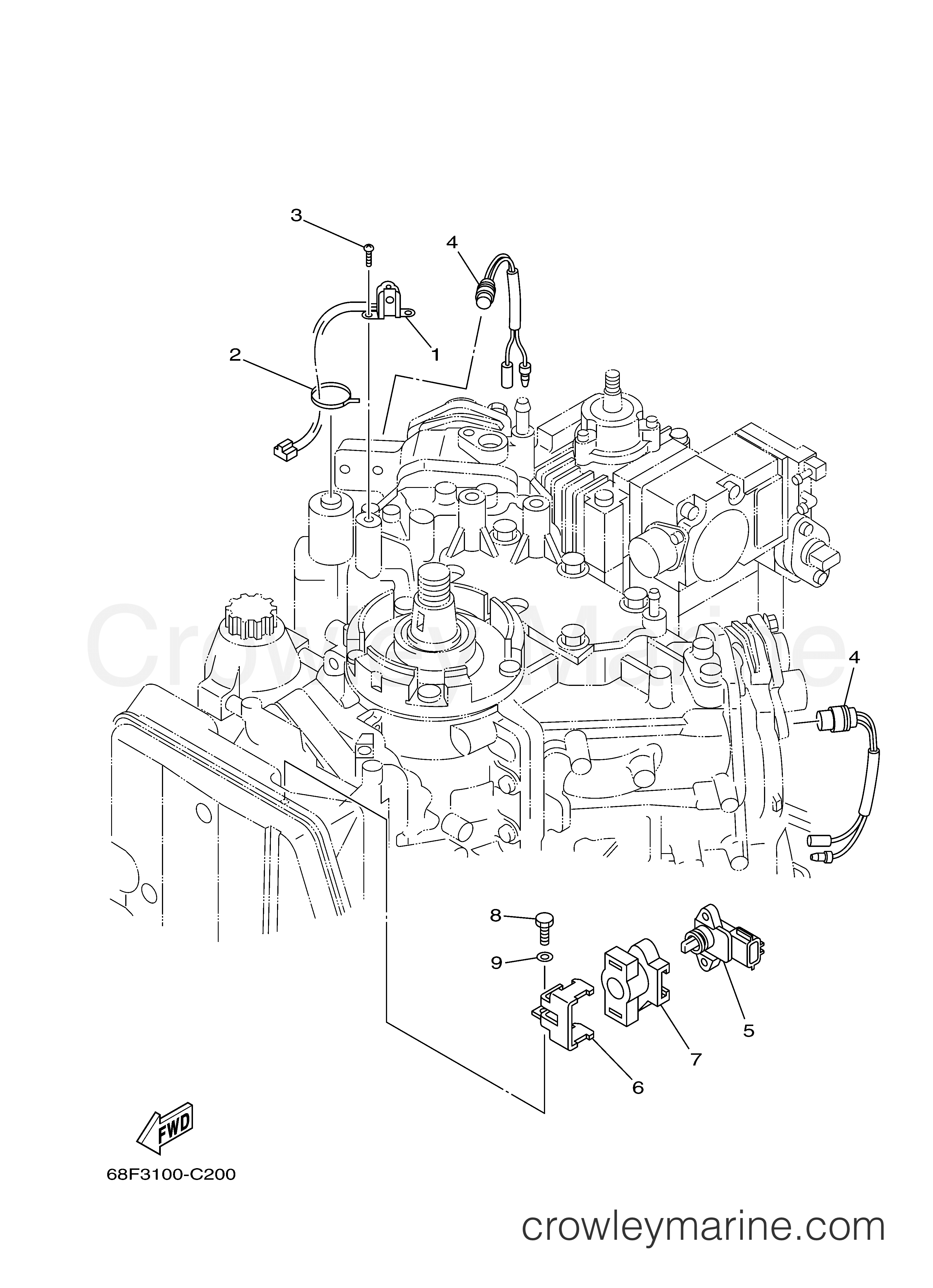

2010 Outboard 200hp - LZ200TXR ELECTRICAL 4 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LZ200TXR - ELECTRICAL 4
Change View:
Pan Head Screw
3
Yamaha Motors
Pan Head Screw97885-05012-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.05
$2.44
You save $0.61
More details
Sensor Assembly
5
Yamaha Motors
Sensor Assembly68F-83688-00-00
Required: 1
SENSOR ASSY
Cross Ship
Leaves in 2-5 days
$270.25
$229.71
You save $40.54
More details
Setting Stay
6
Yamaha Motors
Setting Stay68F-8431R-10-00
Required: 1
STAY, SETTING
Cross Ship
Leaves in 2-5 days
$15.55
$13.22
You save $2.33
More details
Grommet
7
Yamaha Motors
Grommet68F-84352-00-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$14.20
$12.07
You save $2.13
More details
BOLT, HEXAGON DEEP RECESS
8
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.21
You save $0.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
