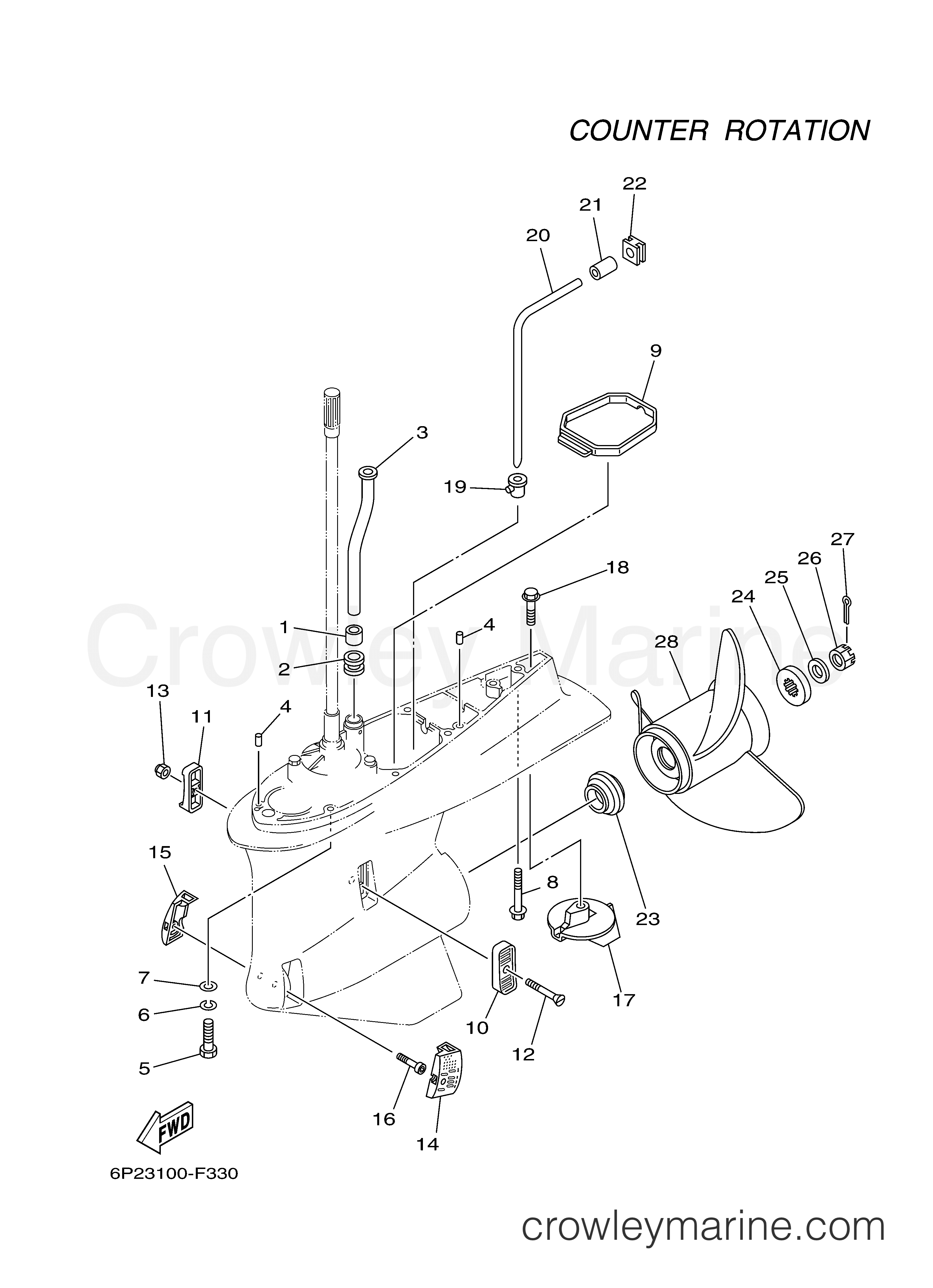

2010 Outboard 250hp - LF250TXR LOWER CASING DRIVE 4 diagram
1
Yamaha Motors
Water Seal Damper6E5-44365-01-00
Required: 1
.DAMPER, WATER SEAL 1
Supersedes: 6E5-44365-00-00
In stock
5+ in stock
$1.70
You save $0.30
2
Yamaha Motors
Water Seal Damper6E5-44366-01-00
Required: 1
.DAMPER, WATER SEAL 2
Supersedes: 6E5-44366-00-00
In stock
5+ in stock
$1.19
You save $0.21
3
Yamaha Motors
Water Tube6S1-44361-02-00
Required: 1
TUBE, WATER 1
Supersedes: 6S1-44361-01-00
$51.94
You save $9.16
In stock
Only 2 remaining
$8.84
You save $1.56
In stock
5+ in stock
$9.31
You save $1.64
6
Yamaha Motors
Spring Washer92990-10100-00
Required: 7
WASHER
Supersedes: 92995-10100-00
In stock
5+ in stock
$2.76
You save $0.49
7
Yamaha Motors
Plate Washer92990-10600-00
Required: 7
WASHER
Supersedes: 92995-10600-00
In stock
5+ in stock
$2.55
You save $0.45
8
Yamaha Motors
Bolt with Washer90119-10071-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-10MA2-00
In stock
5+ in stock
$4.55
You save $0.80
9
Yamaha Motors
Seal Damper6D0-45375-01-00
Required: 1
DAMPER, SEAL
Supersedes: 6D0-45375-00-00
$88.06
You save $15.54
10
Yamaha Motors
Water Inlet Cover6P2-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
Only 5 remaining
$9.10
You save $1.61
11
Yamaha Motors
Water Inlet Cover 26P2-45215-00-00
Required: 1
COVER, WATER INLET 2
In stock
Only 5 remaining
$9.10
You save $1.61
12
Yamaha Motors
Countersunk Screw90152-05M08-00
Required: 1
SCREW, COUNTERSUNK
In stock
5+ in stock
$4.04
You save $0.71
13
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.91
You save $0.34
14
Yamaha Motors
Water Inlet Cover6CE-45224-00-00
Required: 1
COVER, WATER INLET 3
Supersedes: 6P2-45224-00-00
In stock
5+ in stock
$14.24
You save $2.51
15
Yamaha Motors
Water Inlet Cover6CE-45225-00-00
Required: 1
COVER, WATER INLET 4
Supersedes: 6P2-45225-00-00
In stock
5+ in stock
$14.24
You save $2.51
16
Yamaha Motors
Hexagon Socket Head Bolt90110-05039-00
Required: 1
BOLT, HEAXGON SOCKET HEAD
In stock
5+ in stock
$3.02
You save $0.53
17
Yamaha Motors
Anode6CE-45373-00-00
Required: 1
TAB TRIM
Supersedes: 61A-45371-00-00
In stock
5+ in stock
$36.00
You save $6.35
In stock
5+ in stock
$4.42
You save $0.78
19
Yamaha Motors
Water Seal Damper6D0-44367-00-00
Required: 1
DAMPER, WATER SEAL 3
In stock
Only 5 remaining
$20.57
You save $3.63
20
Yamaha Motors
Water Tube6D0-44362-01-00
Required: 1
TUBE, WATER 2
In stock
Only 4 remaining
$22.99
You save $4.06
21
Yamaha Motors
Water Seal Damper6D0-44365-00-00
Required: 1
DAMPER, WATER SEAL 1
In stock
Only 2 remaining
$5.06
You save $0.89
22
Yamaha Motors
DAMPER, WATER SEAL 26D0-44366-01-00
Required: 1
DAMPER, WATER SEAL 2
Supersedes: 6D0-44366-00-00
$4.80
You save $0.85
$136.81
You save $24.14
In stock
5+ in stock
$40.59
You save $7.16
In stock
Only 1 remaining
$2.17
You save $0.38
In stock
Only 3 remaining
$17.17
You save $3.03
In stock
5+ in stock
$3.82
You save $0.68
28
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.75x21LH Stainless Steel6K1-45972-01-00
Required: 1
PROPELLER (3X13-3/4"X21"-ML)
Supersedes: 6K1-45972-01-98
$723.35
You save $127.65
28
Yamaha Motors
HS4 Prop - 4 Blade 15x23LH Stainless Steel6BS-45B74-00-00
Required: 1
PROPELLER (4X15"X23"-TL)
$793.90
You save $140.10
28
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 14.5x19LH Stainless Steel61B-45974-00-00
Required: 1
PROPELLER (3X14-1/2"X19"-TL)
Supersedes: 61B-45974-00-98
$783.70
You save $138.30
28
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 15x17LH Stainless Steel61B-45978-00-00
Required: 1
PROPELLER (3X15"X17"-TL)
Supersedes: 61B-45978-00-98
$783.70
You save $138.30
28
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 14.5x21LH Stainless Steel61B-45972-00-00
Required: 1
PROPELLER (3X14-1/2"X21"-TL)
Supersedes: 61B-45972-00-98
$783.70
You save $138.30
28
Yamaha Motors
Propeller (3X13-3/4"X19"-ML1)6K1-45974-02-98
Required: 1
PROPELLER (3X13-3/4"X19"-ML1)
$723.35
You save $127.65
28
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.75x17LH Stainless Steel6K1-45978-02-00
Required: 1
PROPELLER (3X13-3/4"X17"-ML1)
Supersedes: 6K1-45978-02-98
$723.35
You save $127.65
28
Yamaha Motors
Saltwater Series Prop - 3 Blade 15.25x15LH Stainless Steel6R1-45976-A0-00
Required: 1
PROPELLER (3X15-1/4"X15"-ML)
$656.20
You save $115.80
28
Yamaha Motors
Saltwater Series Prop - 3 Blade 15.25x17LH Stainless Steel6R1-45978-A0-00
Required: 1
PROPELLER (3X15-1/4"X17"-ML)
$656.20
You save $115.80
28
Yamaha Motors
Saltwater Series Prop - 3 Blade 14.88x21LH Stainless Steel6R1-45972-A0-00
Required: 1
PROPELLER (3X14-7/8"X21"-ML)
$656.20
You save $115.80
28
Yamaha Motors
Saltwater Series Prop - 3 Blade 14.5x23LH Stainless Steel6R1-45974-A0-00
Required: 1
PROPELLER (3X14-1/2"X23"-ML)
$725.90
You save $128.10
28
Yamaha Motors
Propeller (3X15-1/4""X19""-Ml)6R1-45970-A1-00
Required: 1
PROPELLER (3X15-1/4"X19"-ML)
$725.90
You save $128.10
28
Yamaha Motors
Saltwater Series II Prop - 3 Blade 15.25x19LH Stainless Steel6D1-45970-10-00
Required: 1
PROPELLER (3X15-1/4"X19"-TL)
Supersedes: 6D1-45970-00-00
$795.60
You save $140.40
28
Yamaha Motors
Yamaha Outboard Saltwater Series II w/SDS 15 X 21p Propeller6CF-45972-20-00
Required: 1
PROPELLER (3X15"X21"-TL)
Supersedes: 6D1-45972-00-00
$795.60
You save $140.40
28
Yamaha Motors
Saltwater Series II w/SDSD (3x15-1/2) Propeller6CF-45978-20-00
Required: 1
PROPELLER (3X15-1/2"X17"-TL)
Supersedes: 6D1-45978-00-00
$795.60
You save $140.40
28
Yamaha Motors
PROPELLER (4X15 X21)6CF-45B70-20-00
Required: 1
PROPELLER (4X15"X21"-TL)
Supersedes: 6BS-45B70-00-00
$889.95
You save $157.05
28
Yamaha Motors
HS4 Prop - 4 Blade 15x22LH Stainless Steel6BS-45B72-00-00
Required: 1
PROPELLER (4X15"X22"-TL)
$793.90
You save $140.10
28
Yamaha Motors
Propeller (3X15-1/4"X15"-ML)6K1-45970-01-98
Required: 1
PROPELLER (3X15-1/4"X15"-ML)
$723.35
You save $127.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
