2010 Outboard 225hp - LF225TXR ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

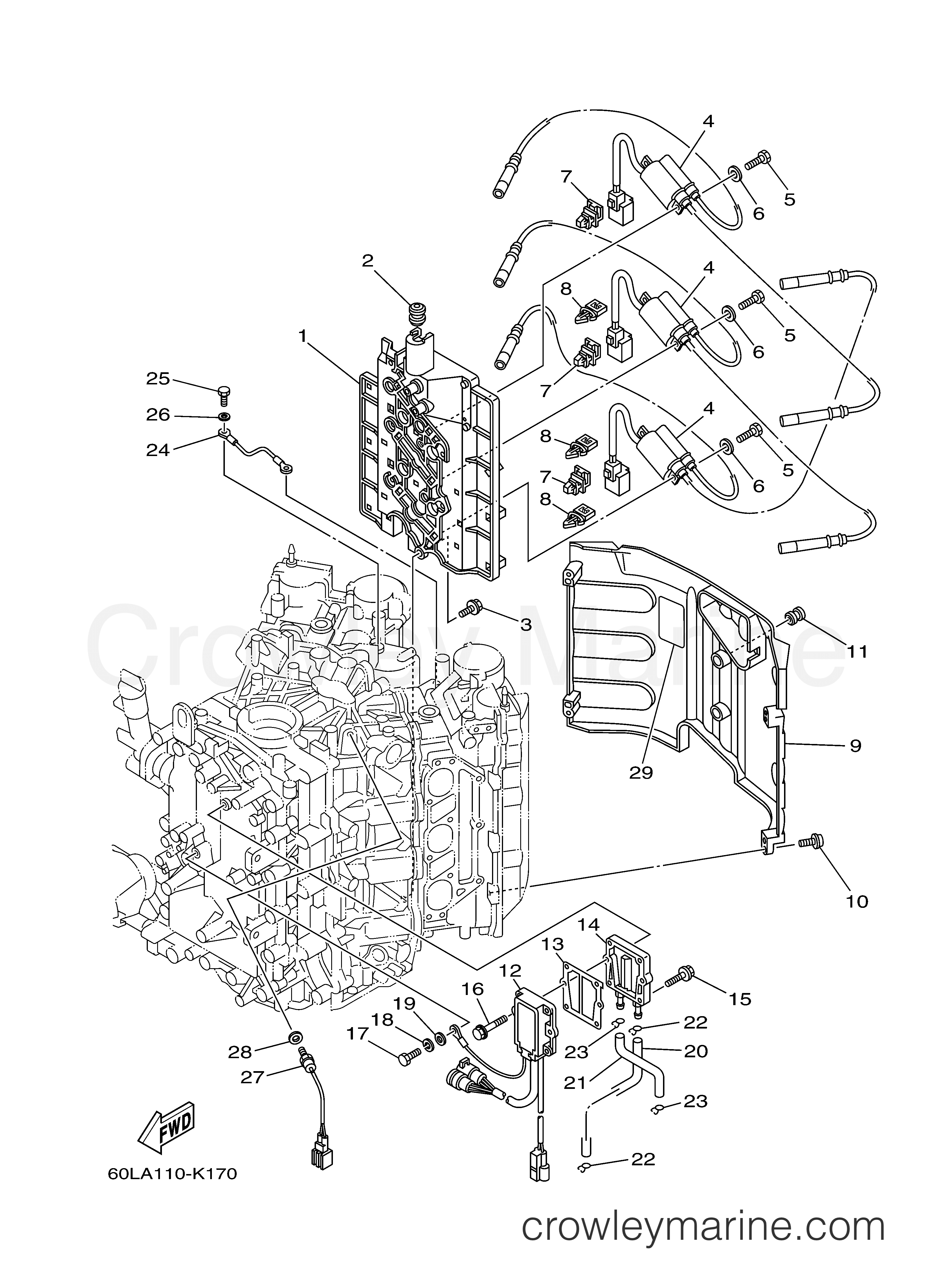

Yamaha Motors LF225TXR - ELECTRICAL 1
Change View:
Ignition Coil Bracket
1
Yamaha Motors
Ignition Coil Bracket69J-82316-00-00
Required: 1
BRACKET, IGNITION COIL
Cross Ship
Leaves in 2-5 days
$166.50
$141.53
You save $24.97
More details
Bolt with Washer
3
Yamaha Motors
Bolt with Washer90119-06283-00
Required: 6
BOLT, WITH WASHER
Supersedes: 90119-06M82-00
Cross Ship
Leaves in 2-5 days
$5.35
$4.55
You save $0.80
More details
Clamp
7
Yamaha Motors
Clamp90464-12002-00
Required: 3
.CLAMP
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Clamp
8
Yamaha Motors
Clamp90464-07M56-00
Required: 3
CLAMP
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
Ignition Coil Cover
9
Yamaha Motors
Ignition Coil Cover69J-82314-00-00
Required: 1
COVER, IGNITION COIL
Cross Ship
Leaves in 2-5 days
$116.40
$98.94
You save $17.46
More details
Rectifier & Regulator Assembly
12
Yamaha Motors
Rectifier & Regulator Assembly69J-81960-12-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$452.40
$384.54
You save $67.86
More details
Rectifier Fitting Plate
13
Yamaha Motors
Rectifier Fitting Plate69J-81975-A0-00
Required: 1
PLATE, RECTIFIER FITTING
Cross Ship
Leaves in 2-5 days
$10.70
$9.10
You save $1.61
More details
Pipe
20
Yamaha Motors
Pipe69J-12482-00-00
Required: 1
PIPE 2
Cross Ship
Leaves in 2-5 days
$37.45
$31.83
You save $5.62
More details
Pipe
21
Yamaha Motors
Pipe69J-12481-00-00
Required: 1
PIPE 1
Cross Ship
Leaves in 2-5 days
$9.20
$7.82
You save $1.38
More details
Clip
23
Yamaha Motors
Clip90467-08M18-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
Earth Lead Wire
24
Yamaha Motors
Earth Lead Wire69J-82519-00-00
Required: 1
WIRE, EARTH LEAD
Cross Ship
Leaves in 2-5 days
$13.00
$11.05
You save $1.95
More details
BOLT
25
Yamaha Motors
BOLT97095-06012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Mark
29
Yamaha Motors
Mark69J-83626-00-00
Required: 1
MARK 6
Cross Ship
Leaves in 2-5 days
$6.85
$5.82
You save $1.03
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
