All diagrams for this model

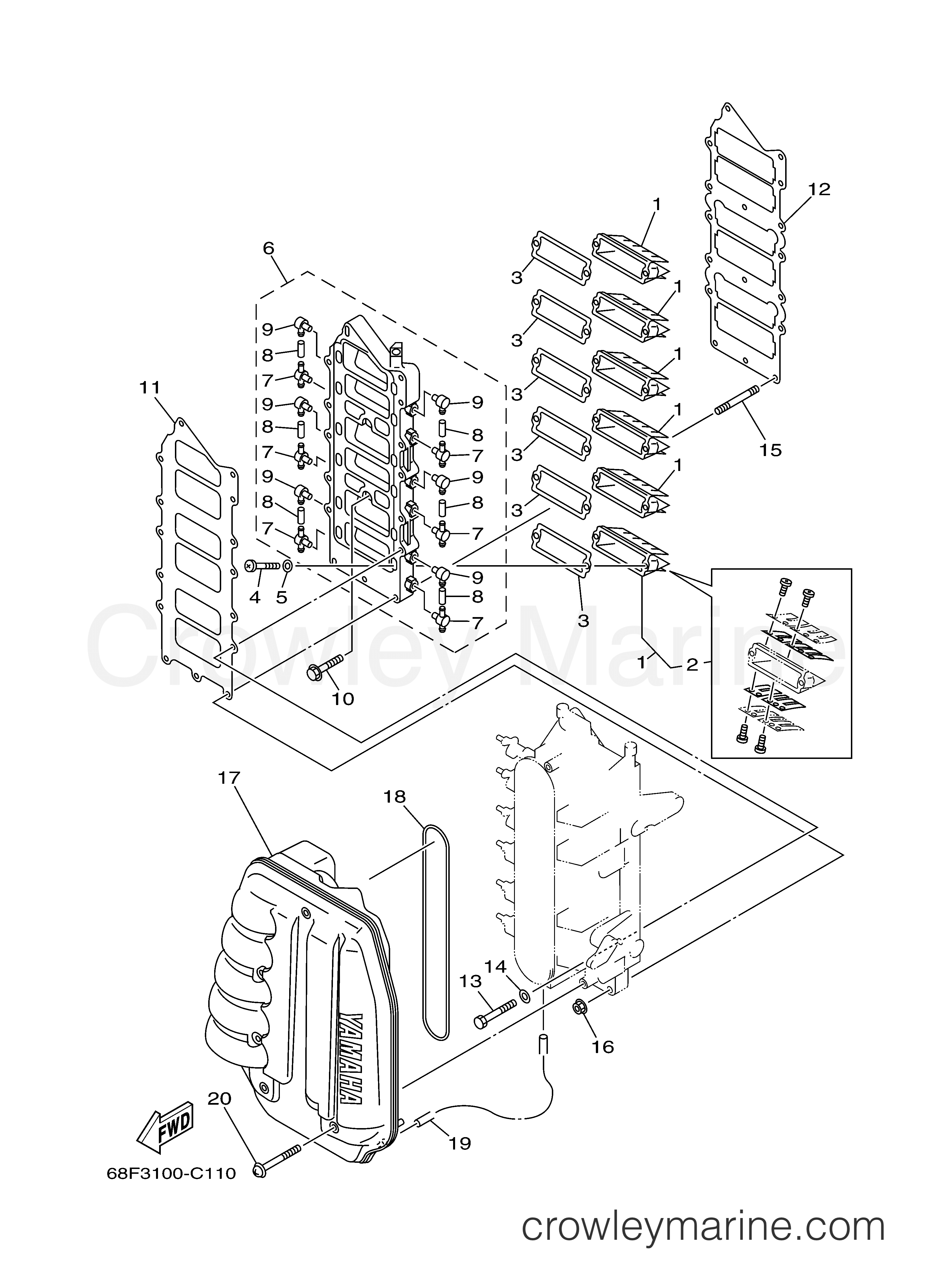

2009 Outboard 150hp - VZ150TLR INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VZ150TLR - INTAKE
Change View:
Reed Valve Assembly
1
Yamaha Motors
Reed Valve Assembly68H-13610-00-00
Required: 6
REED VALVE ASSY
Cross Ship
Leaves in 2-5 days
$169.95
$144.46
You save $25.49
More details
Reed Set
2
Yamaha Motors
Reed Set65J-W0004-01-00
Required: 1
.REED SET
Cross Ship
Leaves in 2-5 days
$89.60
$76.16
You save $13.44
More details
Valve Seat Gasket
3
Yamaha Motors
Valve Seat Gasket61A-13621-A0-00
Required: 6
.GASKET, VALVE SEAT
Cross Ship
Leaves in 2-5 days
$5.65
$4.80
You save $0.85
More details
Reed Valve Plate
6
Yamaha Motors
Reed Valve Plate68F-13624-00-1S
Required: 1
PLATE,REED VALVE
Cross Ship
Leaves in 2-5 days
$405.25
$344.46
You save $60.79
More details
Flange Bolt
10
Yamaha Motors
Flange Bolt90105-06028-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Manifold Gasket
11
Yamaha Motors
Manifold Gasket65L-13646-00-00
Required: 1
.GASKET, MANIFOLD 2
Cross Ship
Leaves in 2-5 days
$55.05
$46.79
You save $8.26
More details
Manifold Gasket
12
Yamaha Motors
Manifold Gasket65L-13645-00-00
Required: 1
.GASKET, MANIFOLD 1
Cross Ship
Leaves in 2-5 days
$49.85
$42.37
You save $7.48
More details
Intake Silencer Assembly
17
Yamaha Motors
Intake Silencer Assembly60V-14440-00-00
Required: 1
SILENCER ASSY, INTAKE
Cross Ship
Leaves in 2-5 days
$230.95
$196.31
You save $34.64
More details
SEAL
18
Yamaha Motors
SEAL60V-14476-01-00
Required: 1
.SEAL
Supersedes: 60V-14476-00-00
Cross Ship
Leaves in 2-5 days
$53.00
$45.05
You save $7.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
