All diagrams for this model

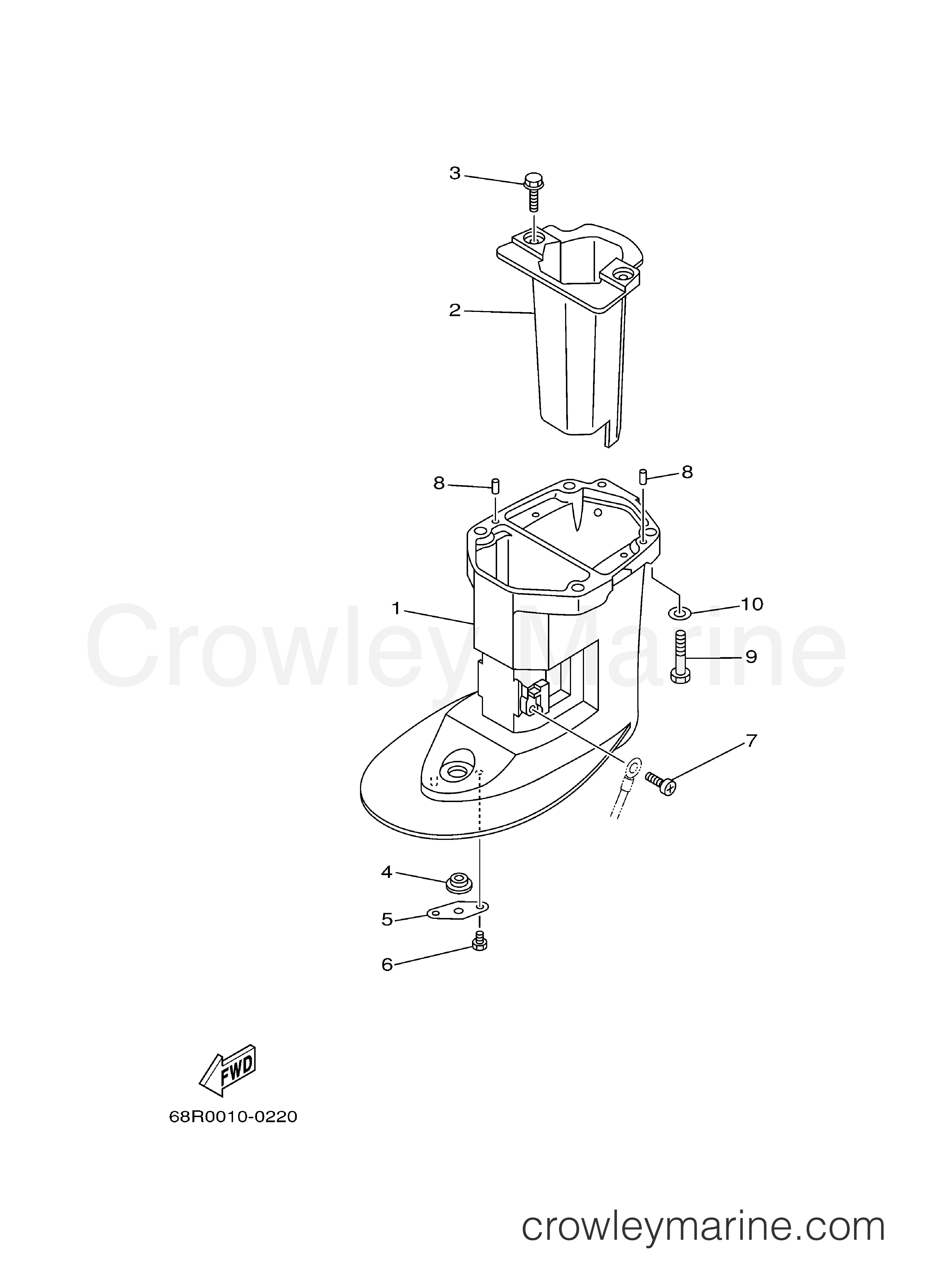

2009 Outboard 9.9hp - F9.9FELR UPPER CASING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F9.9FELR - UPPER CASING
Change View:
Upper Casing
1
Yamaha Motors
Upper Casing6AU-45111-10-8D
Required: 1
CASING, UPPER
Supersedes: 6AU-45111-10-4D
Cross Ship
Leaves in 2-5 days
$355.25
$301.96
You save $53.29
More details
Muffler
2
Yamaha Motors
Muffler6AU-14711-00-CA
Required: 1
MUFFLER 1
Supersedes: 6AU-14711-00-5B
Cross Ship
Leaves in 2-5 days
$136.55
$116.07
You save $20.48
More details
BOLT, HEXAGON W/W DE
3
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-06514-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97575-06514-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Pan Head Screw
7
Yamaha Motors
Pan Head Screw97885-05008-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.85
$2.42
You save $0.43
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
