2009 Outboard 15hp - F15CMSH UPPER CASING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

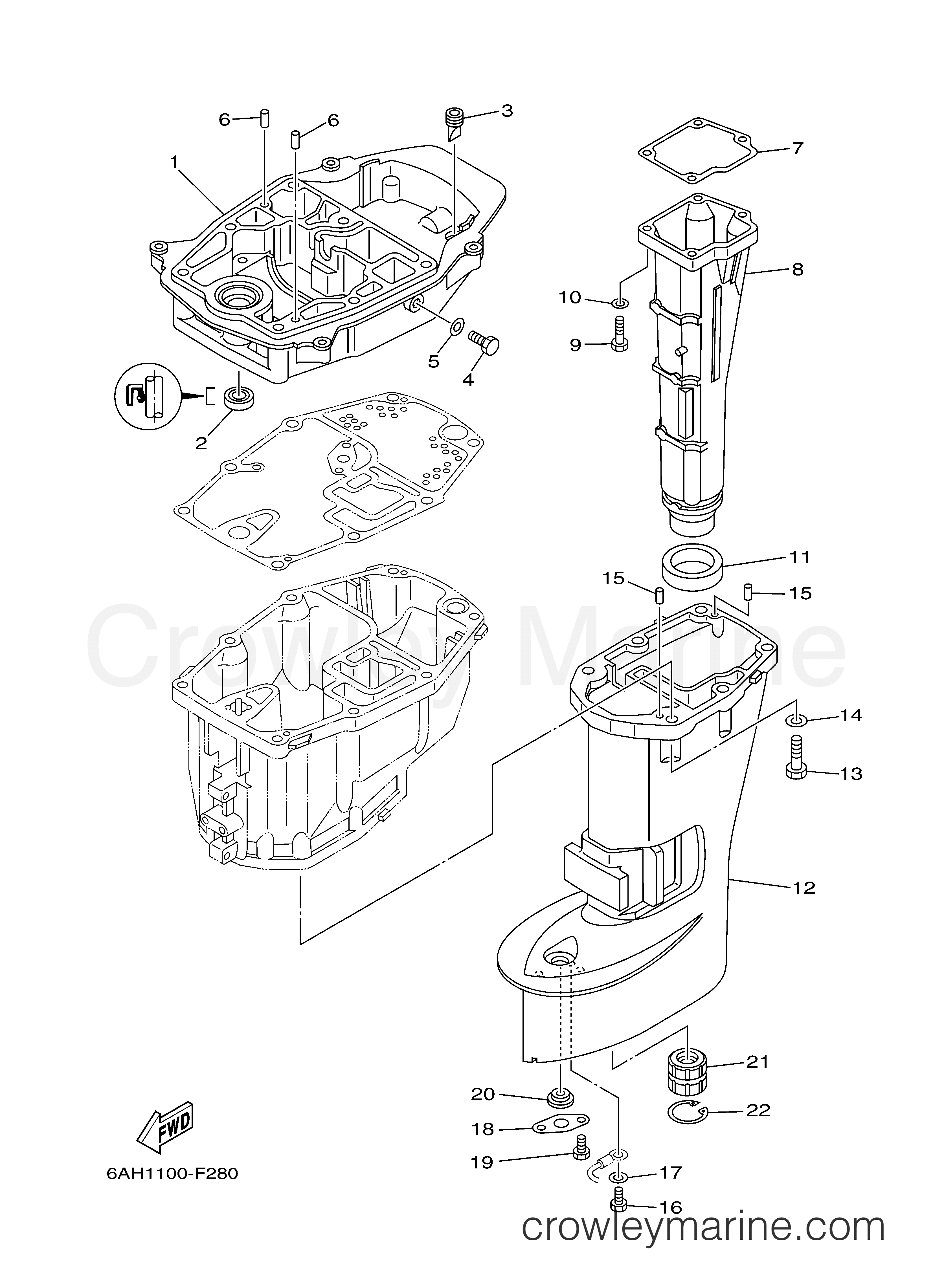

Yamaha Motors F15CMSH - UPPER CASING
Change View:
Exhaust Guide
1
Yamaha Motors
Exhaust Guide6AH-41137-00-CA
Required: 1
GUIDE, EXHAUST
Supersedes: 6AH-41137-00-5B
Cross Ship
Leaves in 2-5 days
$388.45
$330.18
You save $58.27
More details
Seal Rubber
3
Yamaha Motors
Seal Rubber65W-42717-00-00
Required: 1
RUBBER, SEAL 2
Cross Ship
Leaves in 2-5 days
$6.70
$5.70
You save $1.00
More details
BOLT, HEXAGON DEEP R
4
Yamaha Motors
BOLT, HEXAGON DEEP R97D95-08014-00
Required: 1
BOLT
Supersedes: 97095-08014-00
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
Gasket
5
Yamaha Motors
Gasket90430-08143-00
Required: 1
.GASKET
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Exhaust Manifold Gasket
7
Yamaha Motors
Exhaust Manifold Gasket6AH-41134-00-00
Required: 1
.GASKET, EXHAUST MANIFOLD
Cross Ship
Leaves in 2-5 days
$6.30
$5.35
You save $0.95
More details
Muffler
8
Yamaha Motors
Muffler6AH-14711-00-CA
Required: 1
MUFFLER 1
Supersedes: 6AH-14711-00-5B
Cross Ship
Leaves in 2-5 days
$64.20
$54.57
You save $9.63
More details
BOLT
9
Yamaha Motors
BOLT97095-06025-00
Required: 4
BOLT
Supersedes: 97075-06025-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Seal Ext
11
Yamaha Motors
Seal Ext6AH-41138-00-00
Required: 1
.SEAL, EXT. 1
Cross Ship
Leaves in 2-5 days
$13.75
$11.69
You save $2.06
More details
Upper Casing
12
Yamaha Motors
Upper Casing6AH-45111-00-4D
Required: 1
CASING, UPPER
Cross Ship
Leaves in 2-5 days
$452.20
$384.37
You save $67.83
More details
Bolt
16
Yamaha Motors
Bolt97095-05010-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
