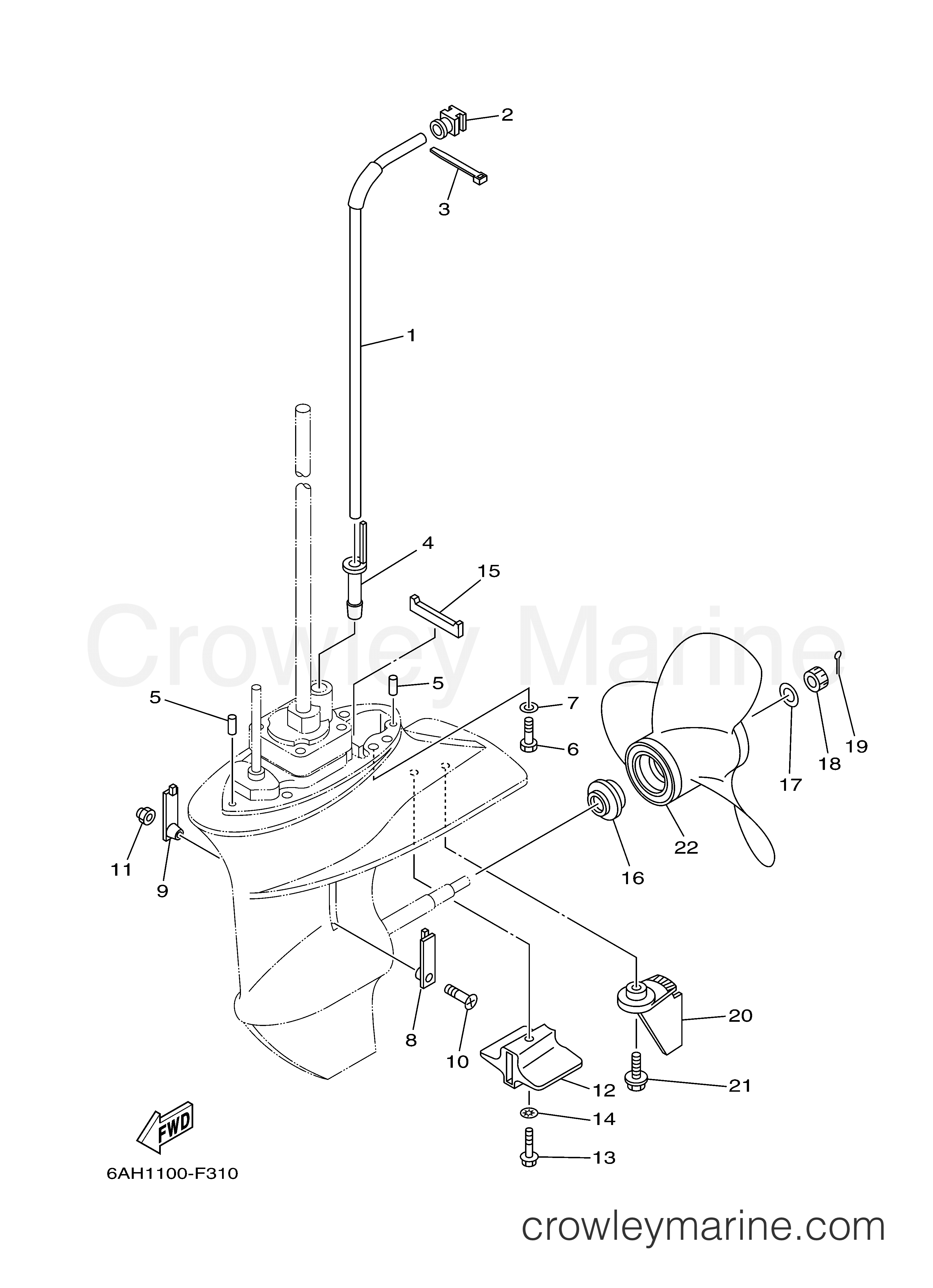

2008 Outboard 20hp - F20ELR LOWER CASING DRIVE 2 diagram
1
Yamaha Motors
Water Tube6AH-44361-11-00
Required: 1
TUBE, WATER
Supersedes: 6AH-44361-10-00
$103.06
You save $18.19
2
Yamaha Motors
Water Seal Damper 16AH-44365-01-00
Required: 1
.DAMPER, WATER SEAL 1
Supersedes: 6AH-44365-00-00
$1.74
You save $0.31
3
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
4
Yamaha Motors
RUBBER, WATER SEAL 46AH-44368-01-00
Required: 1
.RUBBER, WATER SEAL 4
Supersedes: 6AH-44368-00-00
$6.21
You save $1.10
5
Yamaha Motors
Dowel Pin93604-10M03-00
Required: 2
PIN, DOWEL
Supersedes: 93604-12M07-00
In stock
Only 1 remaining
$4.42
You save $0.78
6
Yamaha Motors
Bolt97080-08030-00
Required: 4
BOLT
Supersedes: 97075-08030-00
In stock
5+ in stock
$3.91
You save $0.69
7
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
8
Yamaha Motors
Water Inlet Cover6G1-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
Only 1 remaining
$6.71
You save $1.19
9
Yamaha Motors
Water Inlet Cover 263V-45215-00-00
Required: 1
COVER, WATER INLET 2
In stock
Only 2 remaining
$8.03
You save $1.42
10
Yamaha Motors
Countersunk Screw90152-05011-00
Required: 1
SCREW, COUNTERSUNK
Supersedes: 90152-05M04-00
In stock
Only 5 remaining
$2.85
You save $0.50
11
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.91
You save $0.34
$22.61
You save $3.99
13
Yamaha Motors
DEEP FLANGE BOLT95D95-06035-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06035-00
In stock
Only 5 remaining
$0.94
You save $0.17
14
Yamaha Motors
Washer92990-06300-00
Required: 1
WASHER, INTERNAL TOOTH
In stock
5+ in stock
$2.29
You save $0.41
In stock
Only 1 remaining
$5.61
You save $0.99
In stock
Only 2 remaining
$19.46
You save $3.44
17
Yamaha Motors
Plate Washer90201-10M01-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$5.57
You save $0.98
In stock
Only 5 remaining
$6.08
You save $1.07
19
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 1
PIN. COTTER
Supersedes: 91490-30020-00
In stock
5+ in stock
$3.39
You save $0.60
In stock
Only 2 remaining
$22.82
You save $4.03
21
Yamaha Motors
Bolt with Washer90119-06311-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06M88-00
In stock
Only 3 remaining
$1.69
You save $0.30
22
Yamaha Motors
Propeller (3X9-1/4"X10-1/2"-J)683-45943-00-EL
Required: 1
PROPELLER (3X9-1/4"X10-1/2"-J)
$135.15
You save $23.85
22
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9.75RH Aluminum683-45952-00-00
Required: 1
PROPELLER (3X9-1/4"X9-3/4"-J)
Supersedes: 683-45952-00-EL
$153.00
You save $27.00
22
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x12RH Aluminum683-45941-00-00
Required: 1
PROPELLER (3X9-1/4"X12"-J)
Supersedes: 683-45941-00-EL
$135.15
You save $23.85
22
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x10RH Aluminum63V-45952-10-00
Required: 1
PROPELLER (3X9-1/4"X10"-J1)
Supersedes: 63V-45952-10-EL
$153.00
You save $27.00
22
Yamaha Motors
Propeller (3X9-1/4"X11"-J1)63V-45943-10-EL
Required: 1
PROPELLER (3X9-1/4"X11"-J1)
$153.00
You save $27.00
22
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x9RH Aluminum63V-45945-10-00
Required: 1
PROPELLER (3X9-1/4"X9"-J1)
Supersedes: 63V-45945-10-EL
In stock
Only 2 remaining
$153.00
You save $27.00
22
Yamaha Motors
Aluminum Prop - 3 Blade 9.25x12RH Aluminum63V-45941-10-00
Required: 1
PROPELLER (3X9-1/4"X12"-J1)
Supersedes: 63V-45941-10-EL
$153.00
You save $27.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
