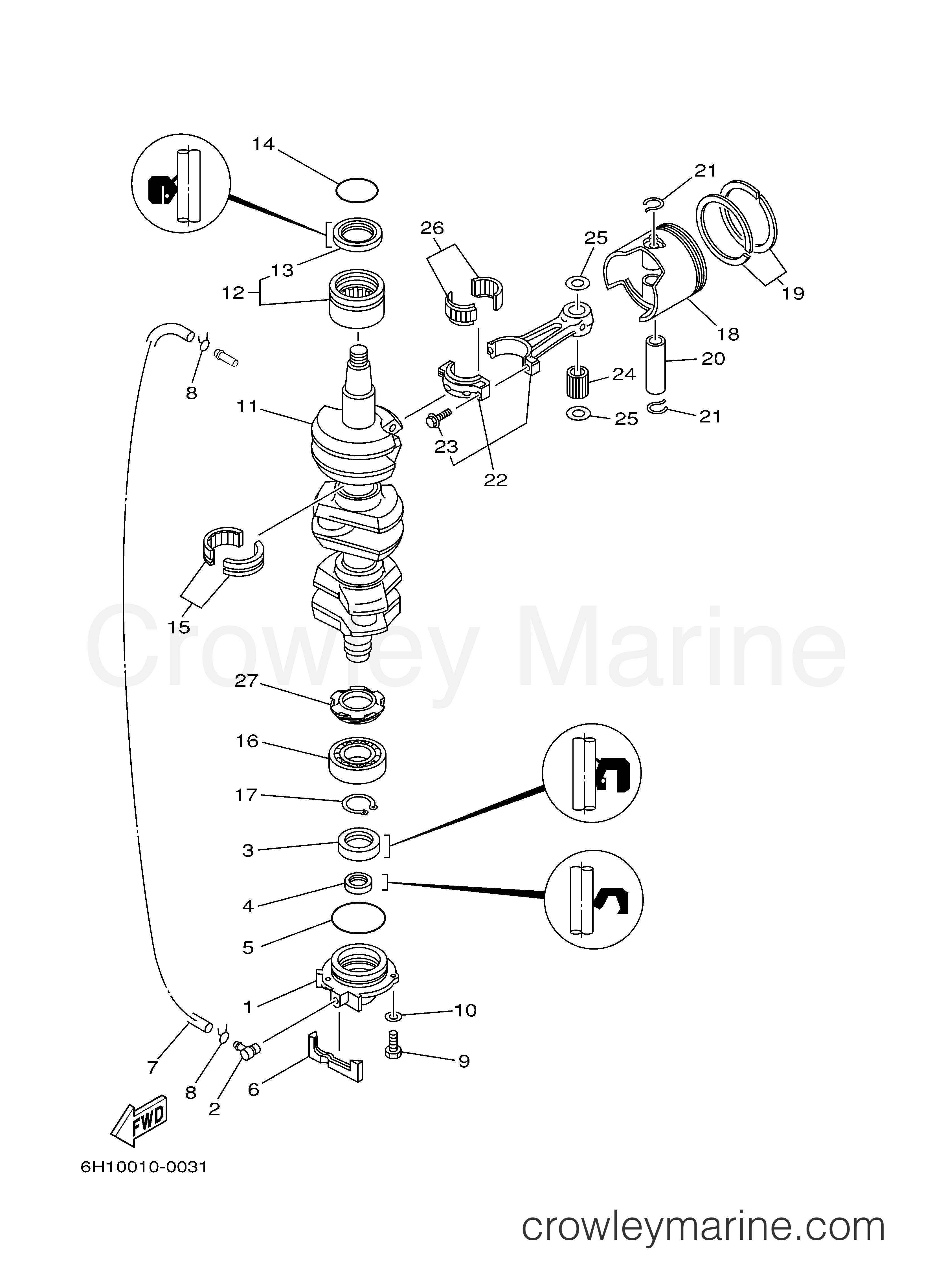

2008 Outboard 90hp - 90TLR CRANKSHAFT PISTON diagram
1
Yamaha Motors
Oil Seal Housing6H1-15359-01-94
Required: 1
HOUSING, OIL SEAL
$53.42
You save $9.43
2
Yamaha Motors
Check Valve Assembly688-11370-01-00
Required: 1
CHECK VALVE ASSY
In stock
Only 1 remaining
$13.56
You save $2.39
$9.44
You save $1.67
In stock
Only 2 remaining
$5.91
You save $1.04
In stock
Only 1 remaining
$8.84
You save $1.56
6
Yamaha Motors
Crankcase Seal688-15379-00-00
Required: 1
SEAL, CRANKCASE
$13.81
You save $2.44
$19.54
You save $3.45
In stock
Only 3 remaining
$2.72
You save $0.48
9
Yamaha Motors
Bolt97080-06020-00
Required: 3
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
10
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
$857.10
You save $151.25
$94.34
You save $16.65
13
Yamaha Motors
SD-TYPE OIL SEAL93102-36351-00
Required: 1
.OIL SEAL
Supersedes: 93102-36M02-00
In stock
Only 1 remaining
$9.10
You save $1.61
In stock
Only 1 remaining
$8.20
You save $1.45
$121.54
You save $21.45
$73.09
You save $12.90
17
Yamaha Motors
S -type Circlip93410-32075-00
Required: 1
CIRCLIP
Supersedes: 93410-32M00-00
In stock
5+ in stock
$8.92
You save $1.57
18
Yamaha Motors
Piston (0.25MM O/S)6H1-11635-03-00
Required: 3
PISTON (0.25MM O/S)
$151.05
You save $26.66
18
Yamaha Motors
Piston (0.50MM O/S)6H1-11636-03-00
Required: 3
PISTON (0.50MM O/S)
$151.05
You save $26.66
$140.04
You save $24.71
19
Yamaha Motors
Piston Ring Set (Standard)688-11603-A0-00
Required: 3
PISTON RING SET (STD)
In stock
Only 5 remaining
$52.19
You save $9.21
19
Yamaha Motors
Piston Ring Set (0.50Mm O/S)688-11605-A0-00
Required: 3
PISTON RING SET (0.50MM O/S)
$55.76
You save $9.84
19
Yamaha Motors
Piston Ring Set688-11604-A0-00
Required: 3
PISTON RING SET (0.25MM O/S)
In stock
Only 1 remaining
$52.19
You save $9.21
$17.55
You save $3.10
21
Yamaha Motors
Piston Pin Clip688-11634-10-00
Required: 6
CLIP, PISTON PIN
$4.68
You save $0.83
22
Yamaha Motors
Connecting Rod Assembly688-11650-03-00
Required: 3
CONNECTING ROD ASSY
$215.22
You save $37.98
$6.63
You save $1.17
In stock
Only 1 remaining
$3.23
You save $0.57
25
Yamaha Motors
Plate Washer90201-20417-00
Required: 6
WASHER, PLATE
In stock
Only 2 remaining
$6.08
You save $1.07
$99.44
You save $17.55
$132.52
You save $23.38
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
