All diagrams for this model

2007 Outboard 8hp - F8CMSH ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

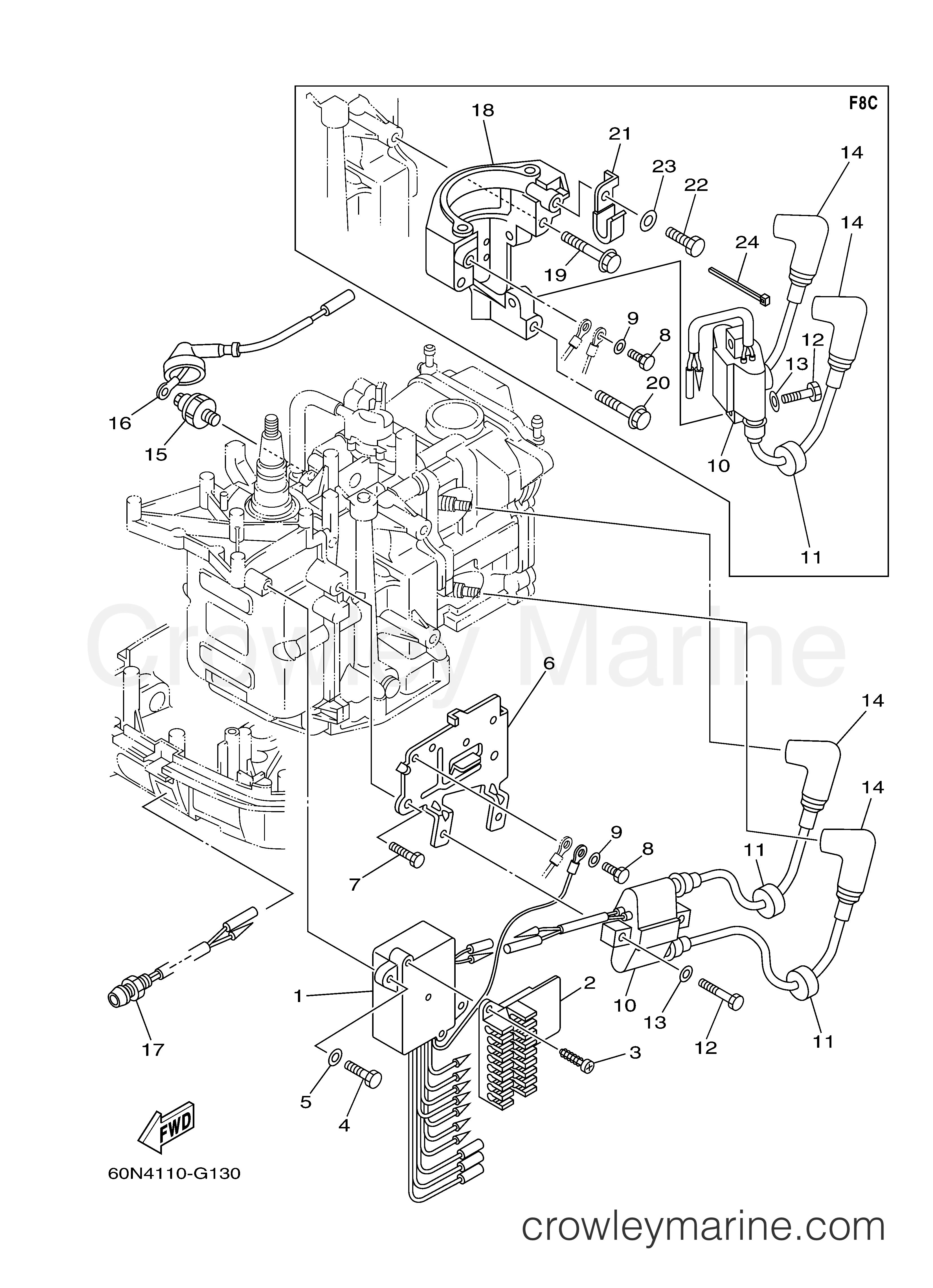

Yamaha Motors F8CMSH - ELECTRICAL 1
Change View:
C.D.I. UNIT Assembly
1
Yamaha Motors
C.D.I. UNIT Assembly68T-85540-00-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$444.85
$378.12
You save $66.73
More details
Coupler Clamp
2
Yamaha Motors
Coupler Clamp68T-82522-00-00
Required: 1
CLAMP, COUPLER
Cross Ship
Leaves in 2-5 days
$6.85
$5.82
You save $1.03
More details
Tapping Screw
3
Yamaha Motors
Tapping Screw97780-40112-00
Required: 2
SCREW, TAPPING
Supersedes: 97780-40512-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Bracket
6
Yamaha Motors
Bracket68T-85542-00-00
Required: 1
BRACKET
Cross Ship
Leaves in 2-5 days
$34.60
$29.41
You save $5.19
More details
BOLT, HEXAGON DEEP RECESS
7
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-08012-00
Required: 2
BOLT
Supersedes: 97095-08012-00
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
BOLT
8
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
BOLT
12
Yamaha Motors
BOLT97095-06025-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Oil Pressure Switch Assembly
15
Yamaha Motors
Oil Pressure Switch Assembly67F-82504-00-00
Required: 1
OIL PRESSURE SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$76.25
$64.81
You save $11.44
More details
Wire Lead 2
16
Yamaha Motors
Wire Lead 268T-82127-11-00
Required: 1
WIRE, LEAD 2
Supersedes: 68T-82127-10-00
Cross Ship
Leaves in 2-5 days
$19.30
$16.41
You save $2.89
More details
Emergency Signal Light Assembly
17
Yamaha Motors
Emergency Signal Light Assembly68T-85410-00-00
Required: 1
EMERGENCY SIGNAL LIGHT ASSY
Cross Ship
Leaves in 2-5 days
$52.05
$44.24
You save $7.81
More details
Starting Motor Bracket
18
Yamaha Motors
Starting Motor Bracket68T-81822-01-00
Required: 1
BRACKET, STARTING MOTOR
Supersedes: 68T-81822-01-94
Cross Ship
Leaves in 2-5 days
$56.85
$48.32
You save $8.53
More details
Bolt with Washer
19
Yamaha Motors
Bolt with Washer90119-08046-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$6.25
$5.31
You save $0.94
More details
Bolt with Washer
20
Yamaha Motors
Bolt with Washer90119-08020-00
Required: 1
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
BOLT
22
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
