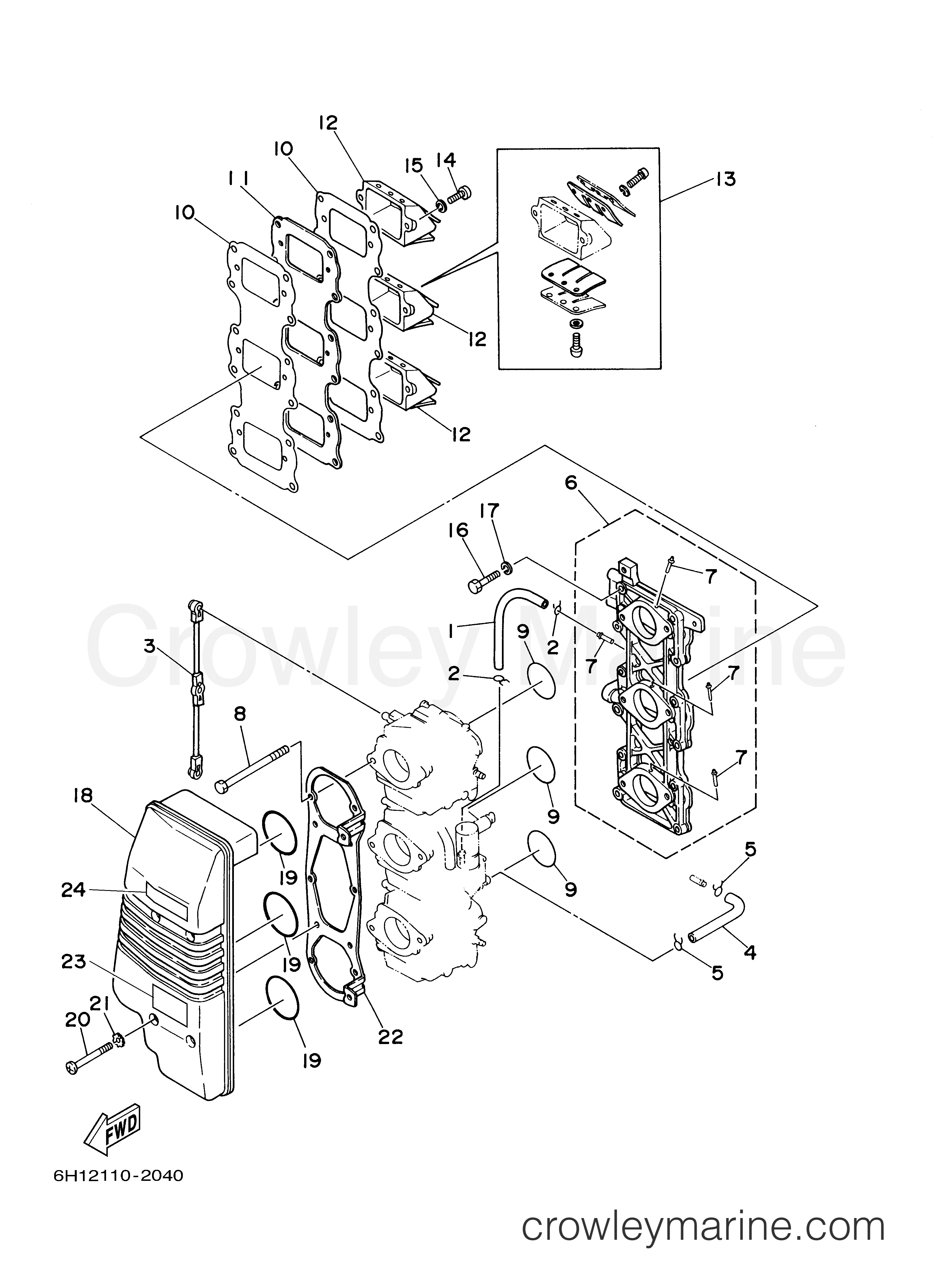

2007 Outboard 90hp - 90TLR INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Hose (L570)90445-07MF1-00

Required: 1

HOSE (L408)

Supersedes: 90445-07M23-00

In stock

Only 4 remaining

~~$8.15~~

$6.93

You save $1.22

CLIP

In stock

Only 3 remaining

~~$3.20~~

$2.72

You save $0.48

More details

Yamaha Motors

Accelerator Lever Rod688-41217-01-00

Required: 1

ROD, ACCEL. LEVER

In stock

5+ in stock

~~$18.90~~

$16.06

You save $2.84

.PIPE

~~$5.55~~

$4.72

You save $0.83

CLIP

In stock

5+ in stock

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Intake 1 & Manifold99999-04031-00

Required: 1

MANIFOLD 1

Supersedes: 6H1-13641-02-94

~~$84.40~~

$71.74

You save $12.66

More details

Yamaha Motors

Joint Pipe6H1-14485-00-00

Required: 4

.PIPE, JOINT

~~$7.15~~

$6.08

You save $1.07

More details

Yamaha Motors

BOLT, HEXAGON DEEP RECESS97D95-06095-00

Required: 6

BOLT

Supersedes: 97095-06095-00

~~$3.25~~

$2.76

You save $0.49

.O-RING

In stock

Only 5 remaining

~~$6.85~~

$5.82

You save $1.03

More details

Yamaha Motors

Valve Seat Gasket688-13621-A1-00

Required: 2

.GASKET, VALVE SEAT

In stock

5+ in stock

~~$6.60~~

$5.61

You save $0.99

More details

Yamaha Motors

Reed Valve Plate688-13624-00-00

Required: 1

PLATE,REED VALVE

~~$17.70~~

$15.04

You save $2.66

More details

Yamaha Motors

Reed Valve Assembly688-13610-00-00

Required: 3

REED VALVE ASSY

~~$98.30~~

$83.55

You save $14.75

More details

Yamaha Motors

Reed Set688-W0004-00-00

Required: 1

.REED SET

In stock

Only 4 remaining

~~$63.15~~

$53.68

You save $9.47

More details

Yamaha Motors

Pan Head Screw97885-05020-00

Required: 6

.SCREW, PAN HEAD

Supersedes: 97880-05020-00

~~$4.15~~

$3.53

You save $0.62

More details

Yamaha Motors

Spring Washer92990-05100-00

Required: 6

.WASHER, SPRING

In stock

Only 5 remaining

~~$0.35~~

$0.30

You save $0.05

BOLT

Supersedes: 97013-06030-00

In stock

5+ in stock

~~$4.10~~

$3.49

You save $0.62

More details

Yamaha Motors

.WASHER, SPRING92990-06100-00

Required: 12

WASHER, SPRING

Supersedes: 92903-06100-00

~~$3.45~~

$2.93

You save $0.52

More details

Yamaha Motors

Intake Silencer Assembly6H1-14440-02-00

Required: 1

SILENCER ASSY, INTAKE

In stock

Only 1 remaining

~~$67.65~~

$57.50

You save $10.15

O-RING

In stock

5+ in stock

~~$8.49~~

$7.22

You save $1.27

More details

Yamaha Motors

Pan Head Screw97885-06050-00

Required: 4

SCREW, PAN HEAD

In stock

Only 4 remaining

~~$4.75~~

$4.04

You save $0.71

WASHER

In stock

Only 4 remaining

~~$3.95~~

$3.36

You save $0.59

STAY

~~$45.80~~

$38.93

You save $6.87

More details

Yamaha Motors

Caution Mark6H1-85711-60-00

Required: 1

MARK, CAUTION

~~$7.40~~

$6.29

You save $1.11

MARK 5

In stock

Only 1 remaining

~~$5.00~~

$4.25

You save $0.75

More details
