All diagrams for this model

2006 Outboard 9.9hp - T9.9ELH2K ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

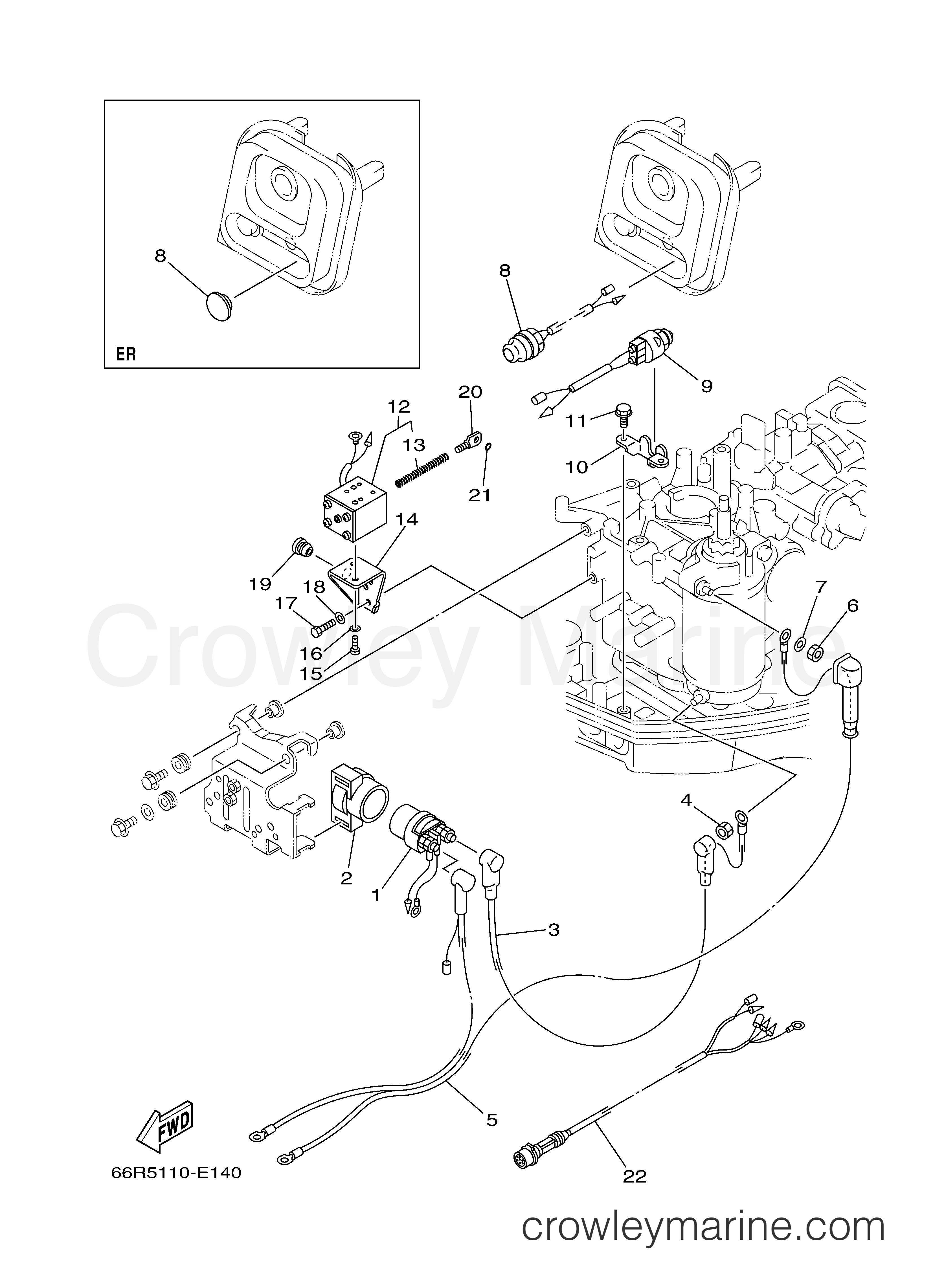

Yamaha Motors T9.9ELH2K - ELECTRICAL 2
Change View:
HOLDER, RELAY
2
Yamaha Motors
HOLDER, RELAY6G1-81952-01-00
Required: 1
HOLDER, RELAY
Supersedes: 6G1-81952-00-00
Cross Ship
Leaves in 2-5 days
$14.20
$12.07
You save $2.13
More details
GROMMET, WATER TUBE (UPPER)
8
Yamaha Motors
GROMMET, WATER TUBE (UPPER)6G1-42725-01-00
Required: 1
GROMMET
Supersedes: 6G1-42725-00-00
Cross Ship
Leaves in 2-5 days
$10.70
$9.10
You save $1.61
More details
Neutral Switch Stay
10
Yamaha Motors
Neutral Switch Stay6J8-82554-00-00
Required: 1
STAY, NEUTRAL SWITCH
Cross Ship
Leaves in 2-5 days
$15.10
$12.83
You save $2.27
More details
Pull Wire
13
Yamaha Motors
Pull Wire66M-86116-00-00
Required: 1
.WIRE, PULL
Cross Ship
Leaves in 2-5 days
$3.65
$3.10
You save $0.55
More details
Solenoid Stay
14
Yamaha Motors
Solenoid Stay66M-86112-00-00
Required: 1
STAY, SOLENOID
Cross Ship
Leaves in 2-5 days
$24.70
$20.99
You save $3.71
More details
Screw With Washer
15
Yamaha Motors
Screw With Washer97980-05108-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97880-05008-00
Cross Ship
Leaves in 2-5 days
$4.80
$4.08
You save $0.72
More details
BOLT, HEXAGON DEEP RECESS
17
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Grommet
19
Yamaha Motors
Grommet90480-10M13-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$7.15
$6.08
You save $1.07
More details
Wire Pull Hook
20
Yamaha Motors
Wire Pull Hook66M-86117-00-00
Required: 1
HOOK, WIRE PULL
Cross Ship
Leaves in 2-5 days
$4.80
$4.08
You save $0.72
More details
Wire Harness Assembly (10P)
22
Yamaha Motors
Wire Harness Assembly (10P)66M-82590-10-00
Required: 1
WIRE HARNESS ASSY (10P)
Cross Ship
Leaves in 2-5 days
$121.80
$103.53
You save $18.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
