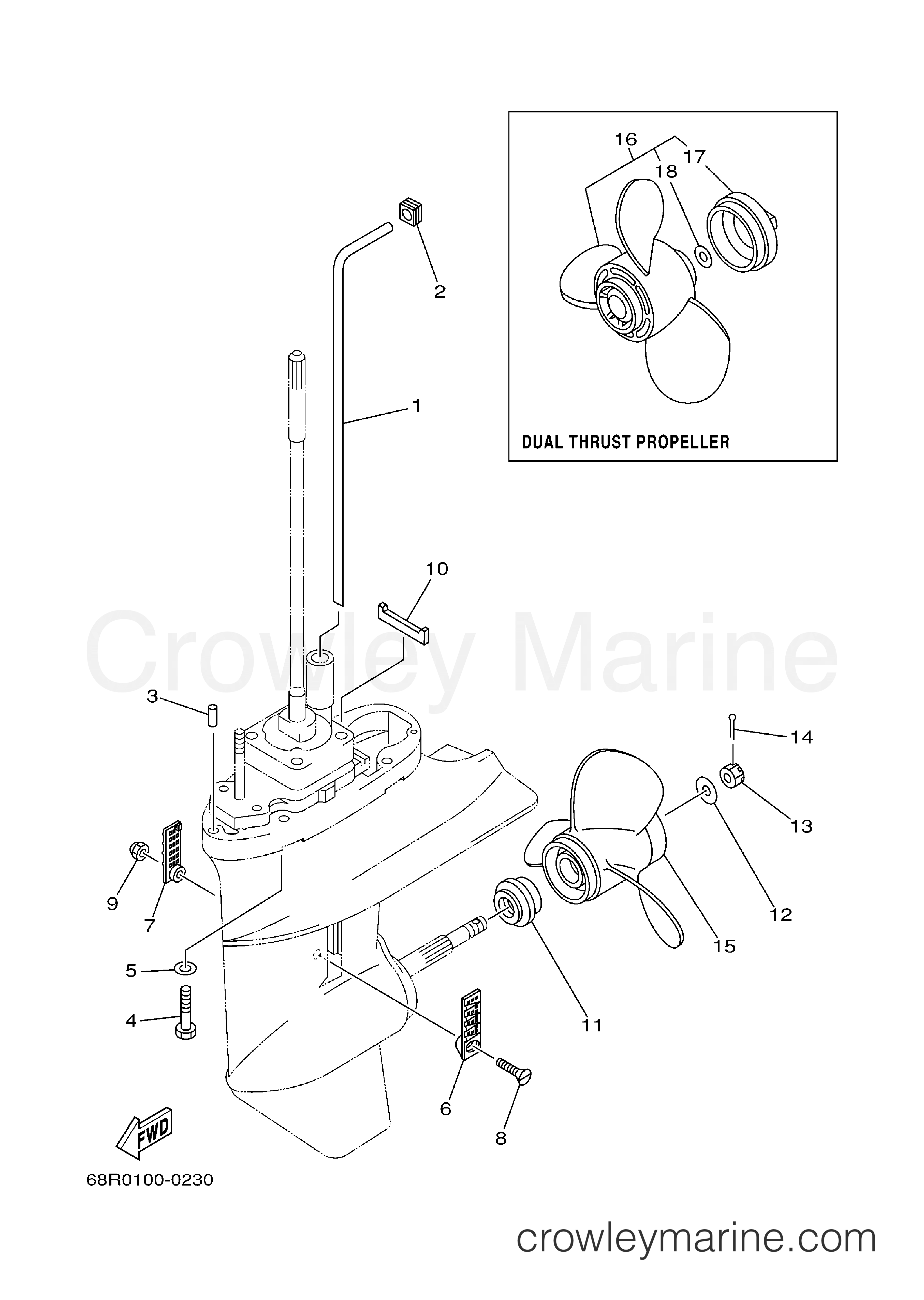

2006 Outboard 8hp - F8MLH LOWER CASING DRIVE 2 diagram
1
Yamaha Motors
Water Tube68T-44361-10-00
Required: 1
TUBE, WATER 1
$15.94
You save $2.81
1
Yamaha Motors
Water Tube68T-44361-00-00
Required: 1
TUBE, WATER 1
$13.81
You save $2.44
2
Yamaha Motors
Water Seal Damper 163V-44365-11-00
Required: 1
DAMPER, WATER SEAL 1
Supersedes: 63V-44365-10-00
In stock
Only 2 remaining
$4.08
You save $0.72
3
Yamaha Motors
Dowel Pin93604-10M03-00
Required: 2
PIN, DOWEL
Supersedes: 93604-12M07-00
In stock
Only 1 remaining
$4.42
You save $0.78
4
Yamaha Motors
Bolt97095-08035-00
Required: 4
BOLT
Supersedes: 97075-08035-00
In stock
5+ in stock
$4.67
You save $0.82
5
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
6
Yamaha Motors
Water Inlet Cover6G1-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
Only 1 remaining
$6.71
You save $1.19
7
Yamaha Motors
Water Inlet Cover 26G1-45215-00-00
Required: 1
COVER, WATER INLET 2
$6.93
You save $1.22
8
Yamaha Motors
Countersunk Screw90152-05M03-00
Required: 1
SCREW, COUNTERSUNK
In stock
Only 1 remaining
$3.36
You save $0.59
9
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.91
You save $0.34
In stock
Only 1 remaining
$5.61
You save $0.99
11
Yamaha Motors
Spacer6G1-45987-02-00
Required: 1
SPACER 1
Supersedes: 6N0-G5987-10-00
In stock
Only 1 remaining
$19.04
You save $3.36
12
Yamaha Motors
Plate Washer90201-10M01-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$5.57
You save $0.98
In stock
Only 5 remaining
$6.08
You save $1.07
14
Yamaha Motors
PIN. COTTER91490-30025-00
Required: 1
PIN. COTTER
Supersedes: 91490-30020-00
In stock
5+ in stock
$3.39
You save $0.60
15
Yamaha Motors
Aluminum Prop - 3 Blade 8.5x8.5RH Aluminum6G1-45941-00-00
Required: 1
PROPELLER (3X8-1/2"X8-1/2"-N)
Supersedes: 6G1-45941-00-EL
$133.45
You save $23.55
15
Yamaha Motors
Aluminum Prop - 3 Blade 8.5x8RH Aluminum6G1-45952-00-00
Required: 1
PROPELLER (3X8-1/2"X8"-N)
Supersedes: 6G1-45952-00-EL
$133.45
You save $23.55
15
Yamaha Motors
Aluminum Prop - 3 Blade 8.5x6.5RH Aluminum6G1-45947-00-00
Required: 1
PROPELLER (3X8-1/2"X6-1/2"-N)
Supersedes: 6G1-45947-00-EL
$133.45
You save $23.55
15
Yamaha Motors
Aluminum Prop - 3 Blade 8.5x7.5RH Aluminum6G1-45943-00-00
Required: 1
PROPELLER (3X8-1/2"X7-1/2"-N)
Supersedes: 6G1-45943-00-EL
In stock
5+ in stock
$133.45
You save $23.55
16
Yamaha Motors
PROP DUAL THRUST6G1-W4592-00-EL
Required: 1
PROP. DUAL THRUST
$42.38
You save $7.48
16
Yamaha Motors
Dual Thrust Prop - 3 Blade 9x7RH Aluminum6G1-W4591-01-00
Required: 1
PROPELLER (3X9"X7"-N)
Supersedes: 6G1-W4591-01-EL
$133.45
You save $23.55
17
Yamaha Motors
Propeller Nut6G1-45616-01-00
Required: 1
.NUT, PROPELLER
$29.71
You save $5.24
18
Yamaha Motors
Plate Washer90201-10M02-00
Required: 1
.WASHER, PLATE
In stock
Only 2 remaining
$3.91
You save $0.69
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
