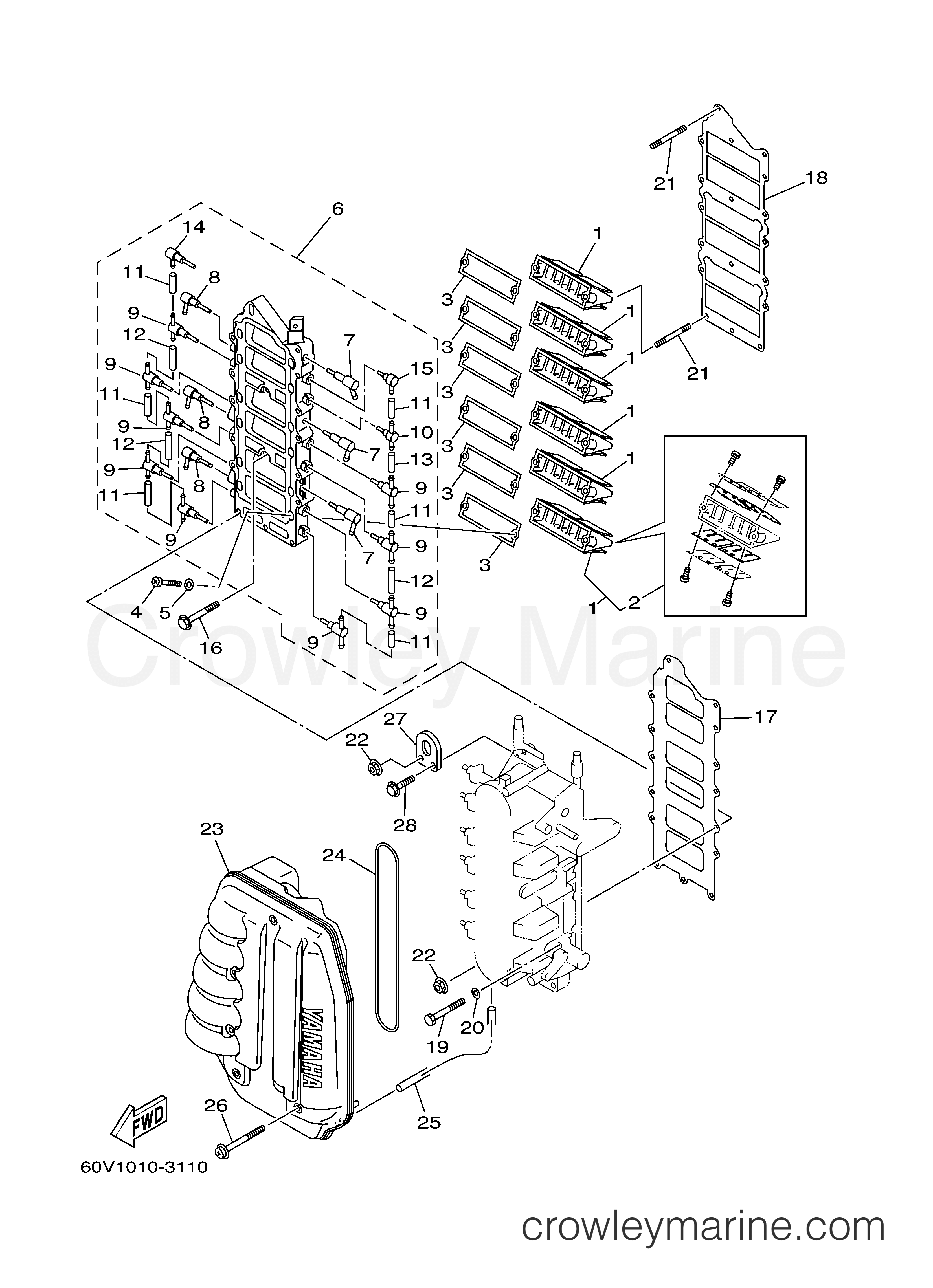

2005 Outboard 200hp - VZ200TLRD INTAKE diagram
1
Yamaha Motors
Reed Valve Assembly60V-13610-00-00
Required: 6
REED VALVE ASSY
$177.18
You save $31.27
$94.99
You save $16.76
3
Yamaha Motors
Valve Seat Gasket60V-13621-A0-00
Required: 6
.GASKET, VALVE SEAT
In stock
Only 1 remaining
$3.57
You save $0.63
4
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 12
SCREW, PAN HEAD
Supersedes: 97880-05016-00
In stock
5+ in stock
$3.91
You save $0.69
5
Yamaha Motors
Plate Washer92990-05600-00
Required: 12
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
6
Yamaha Motors
Reed Valve Plate60V-13624-00-1S
Required: 1
PLATE,REED VALVE
$514.97
You save $90.88
$22.40
You save $3.95
$17.76
You save $3.14
9
Yamaha Motors
Check Valve60V-11379-00-00
Required: 9
.VALVE, CHECK
$27.46
You save $4.85
10
Yamaha Motors
Check Valve Assembly6F6-11370-01-00
Required: 1
.CHECK VALVE ASSY
$12.45
You save $2.20
11
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 6
.HOSE (L34)
Supersedes: 90445-07M03-00
In stock
5+ in stock
$6.29
You save $1.11
12
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 3
.HOSE (L60)
Supersedes: 90445-07016-00
In stock
5+ in stock
$6.29
You save $1.11
13
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 1
.HOSE (L65)
Supersedes: 90445-07015-00
In stock
5+ in stock
$6.29
You save $1.11
14
Yamaha Motors
Check Valve60V-11369-00-00
Required: 1
.VALVE, CHECK
$21.93
You save $3.87
15
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 1
.CHECK VALVE ASSY
In stock
Only 4 remaining
$14.24
You save $2.51
$3.02
You save $0.53
17
Yamaha Motors
Manifold Gasket60V-13646-00-00
Required: 1
.GASKET, MANIFOLD 2
$42.20
You save $7.45
18
Yamaha Motors
Manifold Gasket60V-13645-00-00
Required: 1
.GASKET, MANIFOLD 1
$38.04
You save $6.71
In stock
Only 5 remaining
$2.89
You save $0.51
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 12
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$12.20
You save $2.15
In stock
Only 5 remaining
$4.08
You save $0.72
23
Yamaha Motors
Intake Silencer Assembly60V-14440-00-00
Required: 1
SILENCER ASSY, INTAKE
$196.31
You save $34.64
24
Yamaha Motors
SEAL60V-14476-01-00
Required: 1
.SEAL
Supersedes: 60V-14476-00-00
$45.05
You save $7.95
25
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L250)
Supersedes: 90445-07M44-00
In stock
Only 2 remaining
$6.29
You save $1.11
26
Yamaha Motors
Screw With Washer90159-06M16-00
Required: 6
SCREW, WITH WASHER
In stock
5+ in stock
$2.59
You save $0.46
27
Yamaha Motors
Engine Hanger63P-11119-10-00
Required: 1
HANGER, ENGINE
Supersedes: 68F-11119-00-00
In stock
Only 1 remaining
$9.82
You save $1.73
28
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 1
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
