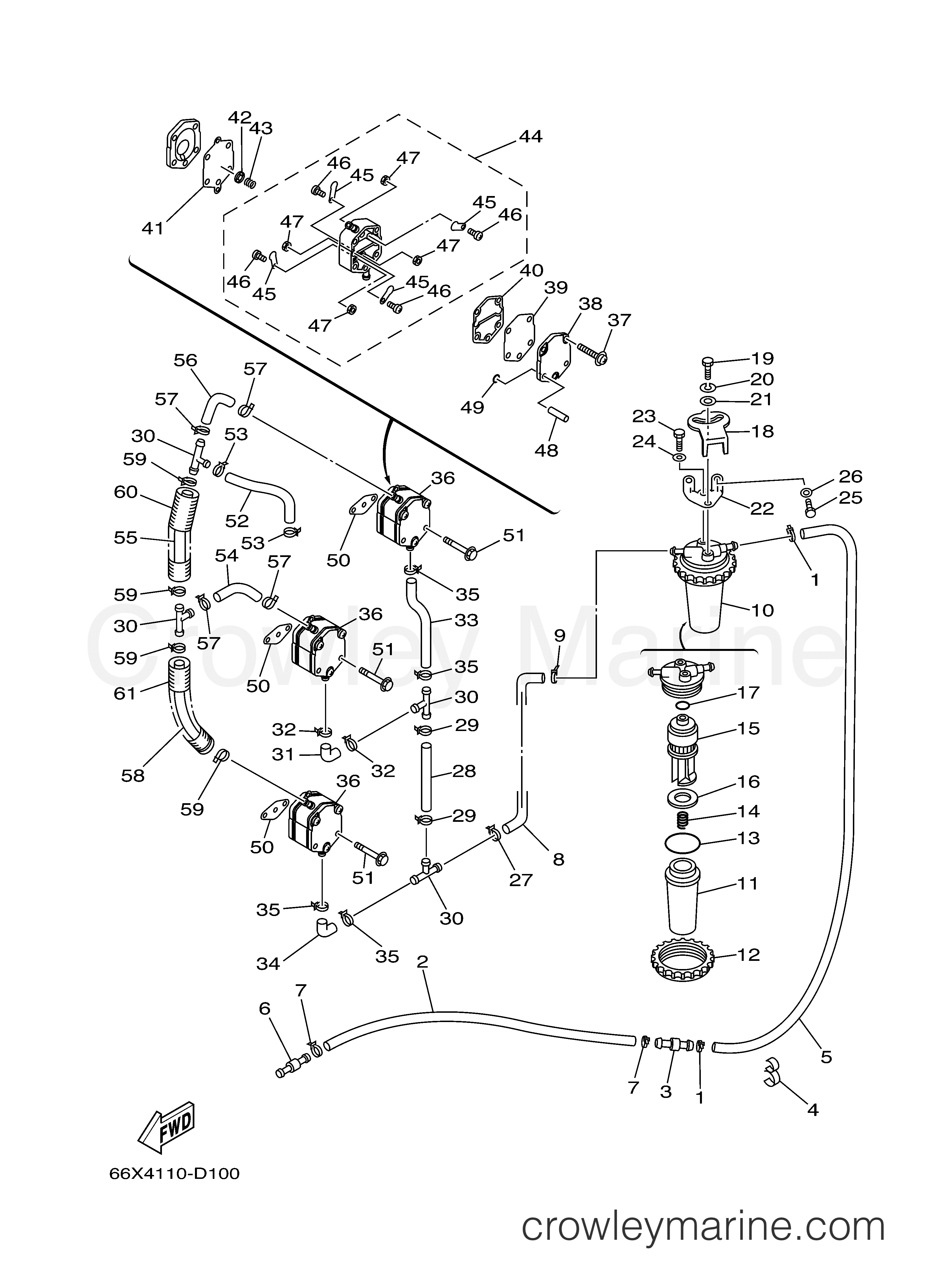

2005 Outboard 200hp - VX200TLRD FUEL diagram
1
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
In stock
Only 4 remaining
$49.68
You save $12.42
3
Yamaha Motors
Joint Pipe6R3-24377-00-00
Required: 1
PIPE, JOINT 2
In stock
Only 1 remaining
$7.08
You save $1.77
$1.20
You save $0.30
5
Yamaha Motors
Pipe61A-24313-10-00
Required: 1
PIPE 3
Supersedes: 61A-24313-00-00
$13.12
You save $3.28
6
Yamaha Motors
Joint Pipe6R3-24377-10-00
Required: 1
PIPE, JOINT 2
In stock
Only 3 remaining
$4.76
You save $1.19
7
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
8
Yamaha Motors
Fuel Pipe68F-24311-10-00
Required: 1
PIPE, FUEL 1
Supersedes: 68F-24311-00-00
$12.40
You save $3.10
9
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
10
Yamaha Motors
Filter Assembly6P3-24560-07-00
Required: 1
FILTER ASSY
Supersedes: 65L-24560-00-00
$142.76
You save $25.19
In stock
5+ in stock
$11.32
You save $2.83
In stock
Only 3 remaining
$17.72
You save $4.43
13
Yamaha Motors
O-Ring61A-24564-01-00
Required: 1
.O-RING
Supersedes: 61A-24564-00-00
In stock
5+ in stock
$5.68
You save $1.42
In stock
Only 4 remaining
$11.68
You save $2.92
15
Yamaha Motors
Filter Element65L-24563-00-00
Required: 1
.ELEMENT, FILTER
In stock
5+ in stock
$24.60
You save $6.15
16
Yamaha Motors
Water Level Float61A-24469-00-00
Required: 1
.FLOAT, WATER LEVEL
In stock
Only 2 remaining
$8.32
You save $2.08
17
Yamaha Motors
GASKET65L-24564-01-00
Required: 1
.O-RING
Supersedes: 65L-24564-00-00
In stock
5+ in stock
$8.76
You save $2.19
-50%
18
Yamaha Motors
Filter Holder60H-24558-00-00
Required: 1
HOLDER, FILTER
In stock
Only 1 remaining
$12.50
You save $12.50
$2.21
You save $0.55
20
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
21
Yamaha Motors
Plate Washer90201-06M02-00
Required: 1
WASHER, PLATE
Supersedes: 90201-06068-00
In stock
Only 3 remaining
$2.04
You save $0.51
22
Yamaha Motors
Obsolete Yamaha Part61A-24566-01-00
Required: 1
BRACKET, FILTER
Supersedes: 61A-24566-00-00
$6.54
You save $1.16
In stock
5+ in stock
$1.24
You save $0.31
24
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
$2.21
You save $0.55
26
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.28
You save $0.57
27
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
In stock
Only 4 remaining
$5.72
You save $1.43
29
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
30
Yamaha Motors
Joint Pipe6E5-24378-00-00
Required: 4
PIPE, JOINT 3
In stock
Only 2 remaining
$16.92
You save $4.23
In stock
5+ in stock
$10.76
You save $2.69
32
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
In stock
Only 4 remaining
$12.40
You save $3.10
In stock
5+ in stock
$10.76
You save $2.69
35
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
36
FUEL PUMP ASSY6E5-24410-09-00
Required: 3
FUEL PUMP ASSY
Supersedes: 6E5-24410-04-00
In stock
5+ in stock
$44.16
You save $11.04
37
Yamaha Motors
Screw (M8 X 40)6E5-24444-09-00
Required: 3
.SCREW
Supersedes: 6E5-24444-01-00
$5.52
You save $0.98
$22.99
You save $4.06
$10.75
You save $1.90
40
Yamaha Motors
Body Gasket6E5-24435-01-00
Required: 1
.GASKET, BODY 2
$5.35
You save $0.95
$44.41
You save $7.84
42
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
$3.87
You save $0.68
43
Yamaha Motors
Diaphragm Spring6E5-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
$8.80
You save $1.55
$62.65
You save $11.05
45
Yamaha Motors
Check Valve62Y-24421-01-00
Required: 4
..VALVE, CHECK
Supersedes: 6A0-24421-01-00
In stock
5+ in stock
$12.24
You save $3.06
46
Yamaha Motors
Pan Head Screw6A0-14325-00-00
Required: 4
..SCREW, PAN HEAD
In stock
Only 3 remaining
$4.55
You save $0.80
In stock
Only 3 remaining
$1.48
You save $0.37
48
Yamaha Motors
Fuel Pump Bushing6E5-24492-00-00
Required: 2
.BUSH, FUEL PUMP
$11.94
You save $2.11
$6.29
You save $1.11
50
Yamaha Motors
Fuel Pump Gasket650-24431-A0-00
Required: 3
GASKET, FUEL PUMP 1
In stock
5+ in stock
$2.80
You save $0.70
51
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06550-00
Required: 6
BOLT, WITH WASHER
Supersedes: 97595-06550-00
$1.57
You save $0.28
$6.29
You save $1.11
53
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
In stock
5+ in stock
$10.76
You save $2.69
55
Yamaha Motors
Hose (L85)90445-13579-00
Required: 1
HOSE (L70)
Supersedes: 90445-13M14-00
In stock
5+ in stock
$3.36
You save $0.84
In stock
Only 1 remaining
$5.76
You save $1.44
57
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
58
Yamaha Motors
Pipe6E5-24313-10-00
Required: 1
PIPE 3
Supersedes: 6E5-24313-00-00
In stock
Only 2 remaining
$15.84
You save $3.96
59
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
60
Yamaha Motors
Tube6N7-83557-00-00
Required: 1
TUBE
Supersedes: 6E9-83557-70-00
$6.33
You save $1.12
61
Yamaha Motors
Tube6N7-83557-00-00
Required: 1
TUBE
Supersedes: 65L-83557-00-00
$6.33
You save $1.12
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
