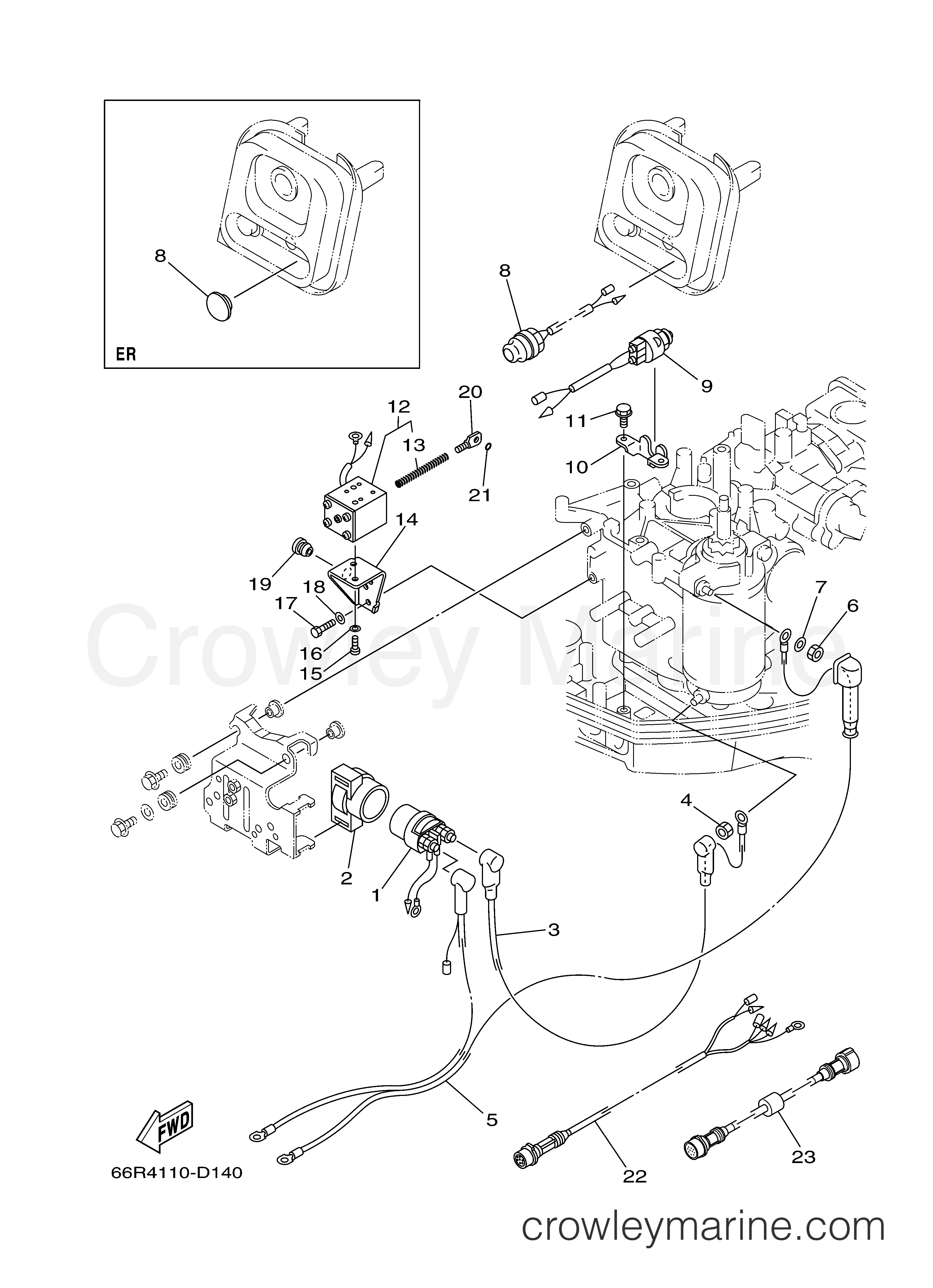

2005 Outboard 9.9hp - T9.9ELH2D ELECTRICAL 2 diagram
1
Yamaha Motors
Starter Relay6G1-81941-10-00
Required: 1
STARTER RELAY ASSY
In stock
5+ in stock
$74.84
You save $13.21
2
Yamaha Motors
HOLDER, RELAY6G1-81952-01-00
Required: 1
HOLDER, RELAY
Supersedes: 6G1-81952-00-00
$12.07
You save $2.13
In stock
Only 1 remaining
$17.72
You save $3.13
In stock
Only 3 remaining
$2.85
You save $0.50
5
Yamaha Motors
BATTERY CABLE (RL45)66R-82105-01-00
Required: 1
BATTERY CABLE
Supersedes: 66R-82105-00-00
In stock
Only 1 remaining
$181.65
You save $32.06
In stock
Only 2 remaining
$3.02
You save $0.53
7
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
8
Yamaha Motors
Starting Switch Assembly65W-81870-00-00
Required: 1
STARTING SWITCH ASSY
In stock
Only 1 remaining
$24.06
You save $4.25
8
Yamaha Motors
GROMMET, WATER TUBE (UPPER)6G1-42725-01-00
Required: 1
GROMMET
Supersedes: 6G1-42725-00-00
$9.10
You save $1.61
9
Yamaha Motors
Obsolete Yamaha Part688-82540-12-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 6H3-82540-00-00
In stock
Only 5 remaining
$40.76
You save $7.19
10
Yamaha Motors
Neutral Switch Stay6J8-82554-00-00
Required: 1
STAY, NEUTRAL SWITCH
$12.83
You save $2.27
In stock
Only 5 remaining
$1.54
You save $0.27
12
Yamaha Motors
Solenoid Coil66M-86111-00-00
Required: 1
COIL, SOLENOID
In stock
Only 1 remaining
$105.61
You save $18.64
$3.10
You save $0.55
14
Yamaha Motors
Solenoid Stay66M-86112-00-00
Required: 1
STAY, SOLENOID
$20.99
You save $3.71
15
Yamaha Motors
Screw With Washer97980-05108-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97880-05008-00
$4.08
You save $0.72
16
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
$2.35
You save $0.41
18
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
$6.08
You save $1.07
20
Yamaha Motors
Wire Pull Hook66M-86117-00-00
Required: 1
HOOK, WIRE PULL
$4.08
You save $0.72
In stock
5+ in stock
$5.82
You save $1.03
22
Yamaha Motors
Wire Harness Assembly66M-82590-00-00
Required: 1
WIRE HARNESS ASSY
$115.98
You save $20.47
23
Yamaha Motors
EXTENSION, WIRE HARNESS703-8258A-01-00
Required: 1
EXTENSION, WIRE HARNESS (0.5M)
Supersedes: 703-8258A-00-00
$208.25
You save $36.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
