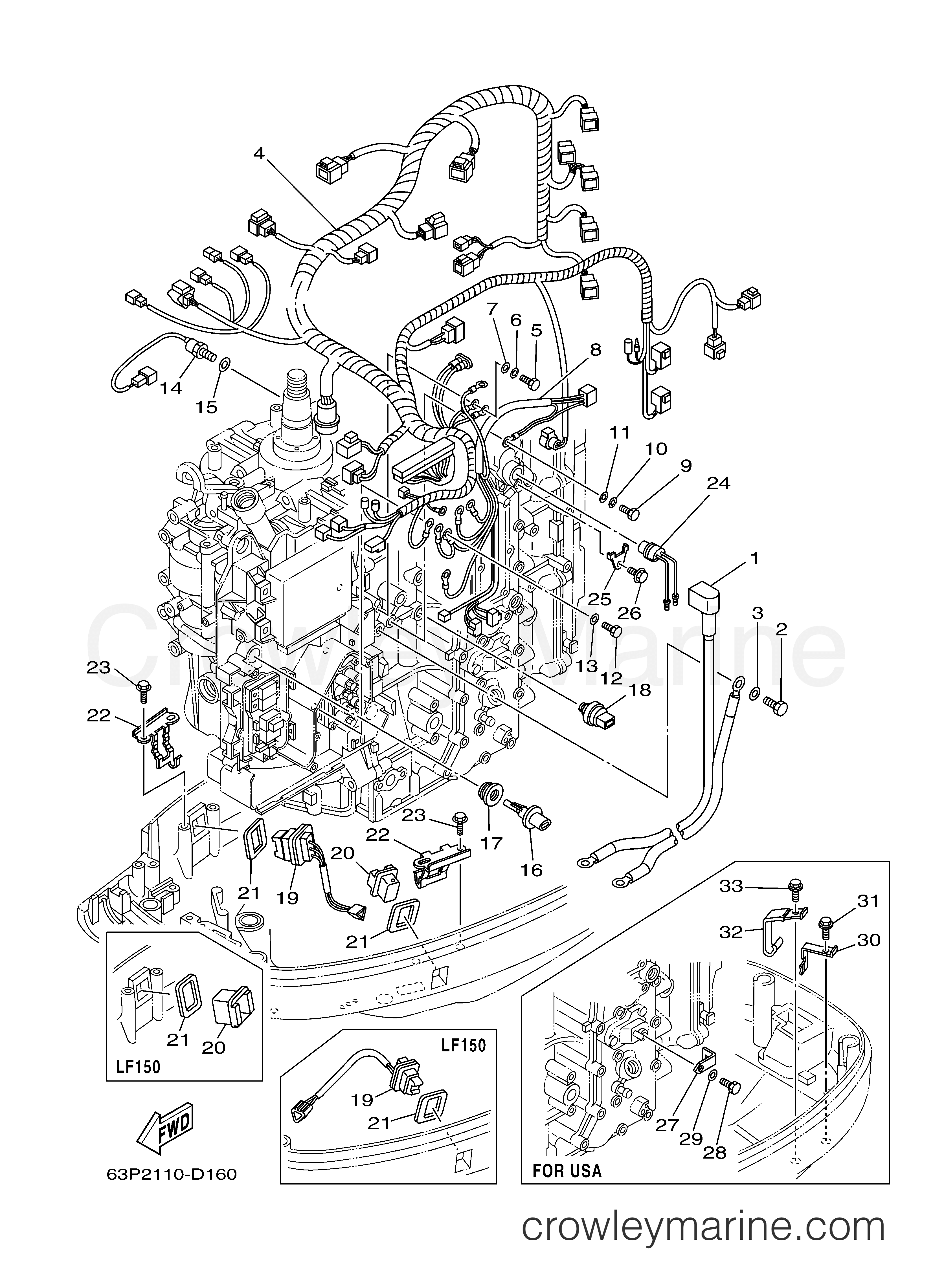

2005 Outboard 150hp - LF150TXRD ELECTRICAL 3 diagram
1
Yamaha Motors
Battery Cable63P-82105-01-00
Required: 1
BATTERY CABLE
Supersedes: 63P-82105-00-00
$360.61
You save $63.64
$4.72
You save $0.83
3
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
4
Yamaha Motors
Wire Harness Assembly63P-82590-21-00
Required: 1
WIRE HARNESS ASSY
Supersedes: 63P-82590-20-00
$972.06
You save $171.54
5
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
6
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
8
Yamaha Motors
Wire Harness Assembly63P-8259M-00-00
Required: 1
WIRE HARNESS ASSY 2
$193.12
You save $34.08
9
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
10
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
$2.54
You save $0.45
13
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
14
Yamaha Motors
THERMOSENSOR ASSY61A-85790-01-00
Required: 1
THERMOSENSOR ASSY
Supersedes: 61A-85790-00-00
In stock
Only 3 remaining
$122.48
You save $21.62
15
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.55
You save $0.45
16
Yamaha Motors
Air Temperature Sensor63P-85886-00-00
Required: 1
SENSOR, AIR TEMPERATURE
$39.06
You save $6.89
$6.29
You save $1.11
18
Yamaha Motors
SENDER, OIL PRESSURE6AW-83651-01-00
Required: 1
SENDER, OIL PRESSURE
Supersedes: 69J-83651-00-00
$308.63
You save $54.47
19
Yamaha Motors
Trim & Tilt Switch Assembly69J-82563-01-00
Required: 1
TRIM & TILT SWITCH ASSY
Supersedes: 69J-82563-00-00
In stock
5+ in stock
$54.32
You save $9.59
20
Yamaha Motors
Bottom Cover69J-42723-01-00
Required: 1
COVER, BOTTOM
Supersedes: 69J-42723-00-8D
$29.03
You save $5.12
21
Yamaha Motors
Tank Cap Gasket69J-82587-01-00
Required: 2
GASKET
Supersedes: 69J-82587-00-00
In stock
Only 2 remaining
$4.72
You save $0.83
22
Yamaha Motors
Bracket63P-83614-01-00
Required: 2
BRACKET
Supersedes: 63P-83614-00-00
$19.38
You save $3.42
In stock
Only 5 remaining
$1.54
You save $0.27
24
Yamaha Motors
Thermo Switch Assembly6P2-82560-01-00
Required: 1
THERMO SWITCH ASSY
Supersedes: 69J-82560-00-00
In stock
Only 5 remaining
$49.30
You save $8.70
$13.43
You save $2.37
In stock
Only 5 remaining
$1.54
You save $0.27
27
Yamaha Motors
Bracket63P-8366P-01-00
Required: 1
BRACKET 4
Supersedes: 63P-8366P-00-00
$6.88
You save $1.21
$2.54
You save $0.45
29
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
30
Yamaha Motors
Bracket69J-8366G-02-00
Required: 1
BRACKET 3
Supersedes: 69J-8366G-00-00
$6.46
You save $1.14
In stock
Only 5 remaining
$1.54
You save $0.27
$11.86
You save $2.09
In stock
Only 5 remaining
$1.54
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
