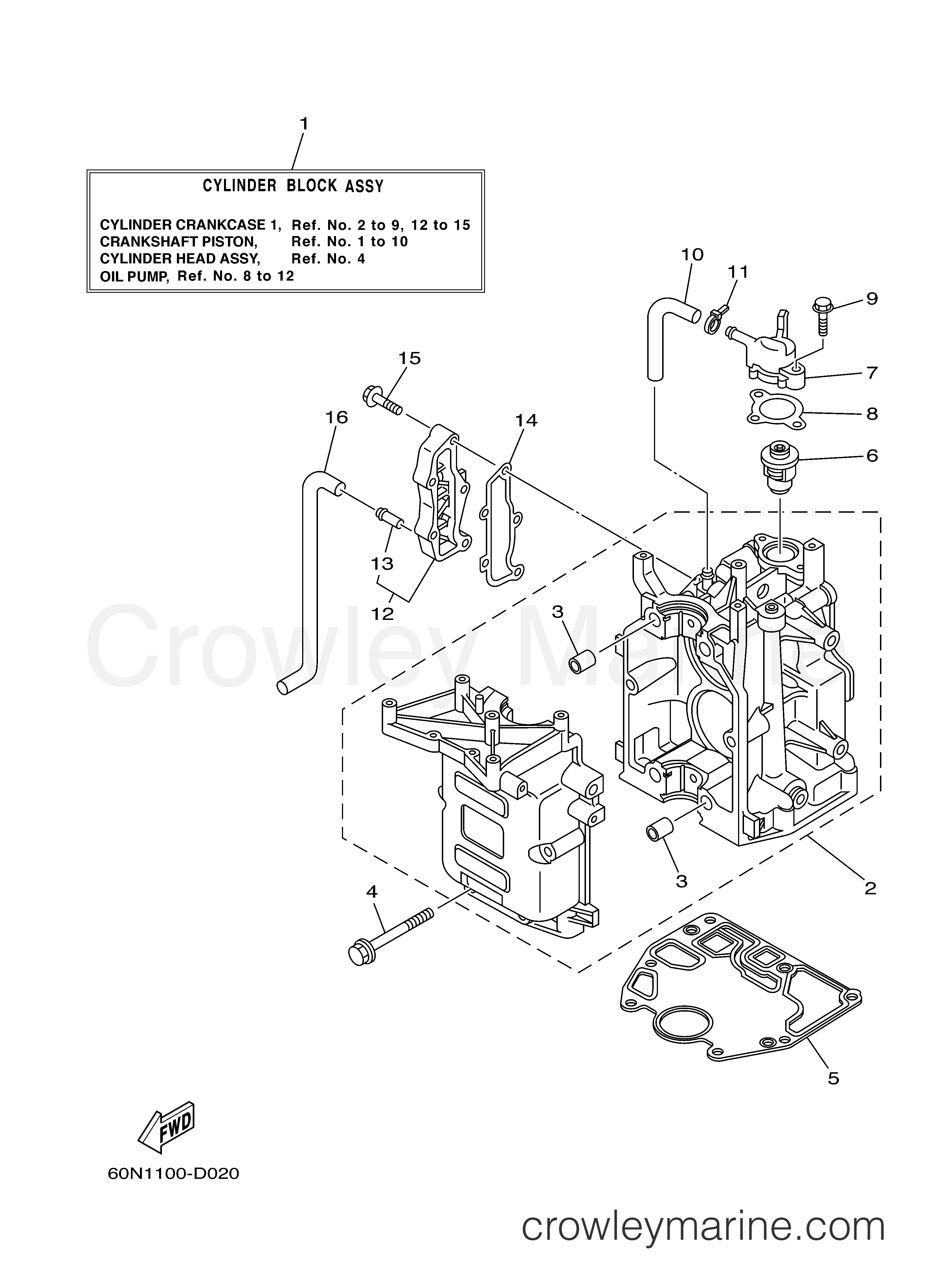

2005 Outboard 8hp - F8MSHD CYLINDER CRANKCASE 1 diagram
1
Yamaha Motors
Cylinder Block Assembly60R-WE09B-00-1S
Required: 1
CYLINDER BLOCK ASSY
$1536.25
You save $271.10
2
Yamaha Motors
Crankcase Assembly6AU-15100-00-00
Required: 1
CRANKCASE ASSY
Supersedes: 60R-E5100-00-1S
$1369.77
You save $241.73
$3.99
You save $0.70
4
Yamaha Motors
Bolt with Washer90119-08015-00
Required: 6
BOLT, WITH WASHER
Supersedes: 90119-08M29-00
In stock
5+ in stock
$2.42
You save $0.43
5
Yamaha Motors
Cylinder Gasket68T-11351-00-00
Required: 1
.GASKET, CYLINDER
$21.72
You save $3.83
In stock
5+ in stock
$38.76
You save $6.84
7
Yamaha Motors
Thermostat Cover68T-12413-00-1S
Required: 1
COVER, THERMOSTAT
$17.85
You save $3.15
8
Yamaha Motors
Cover Gasket6G8-12414-A0-00
Required: 1
.GASKET, COVER
Supersedes: 60R-E2414-A0-00
In stock
5+ in stock
$7.06
You save $1.25
9
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
10
Yamaha Motors
Pipe68T-12481-00-00
Required: 1
PIPE 1
Supersedes: 60R-E2481-00-00
$13.30
You save $2.35
11
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
12
Yamaha Motors
Exhaust Outer Cover6AU-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 60R-G1113-00-1S
$23.93
You save $4.22
13
Yamaha Motors
.PIPE, JOINT 36E9-24378-00-00
Required: 1
.PIPE, JOINT 3
$3.40
You save $0.60
14
Yamaha Motors
Exhaust Outer Cover Gasket68T-41114-A0-00
Required: 1
.GASKET, EXHAUST OUTER COVER
$5.61
You save $0.99
15
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 5
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
16
Yamaha Motors
Pipe68T-12482-00-00
Required: 1
PIPE 2
Supersedes: 60R-E2482-00-00
$13.22
You save $2.33
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
