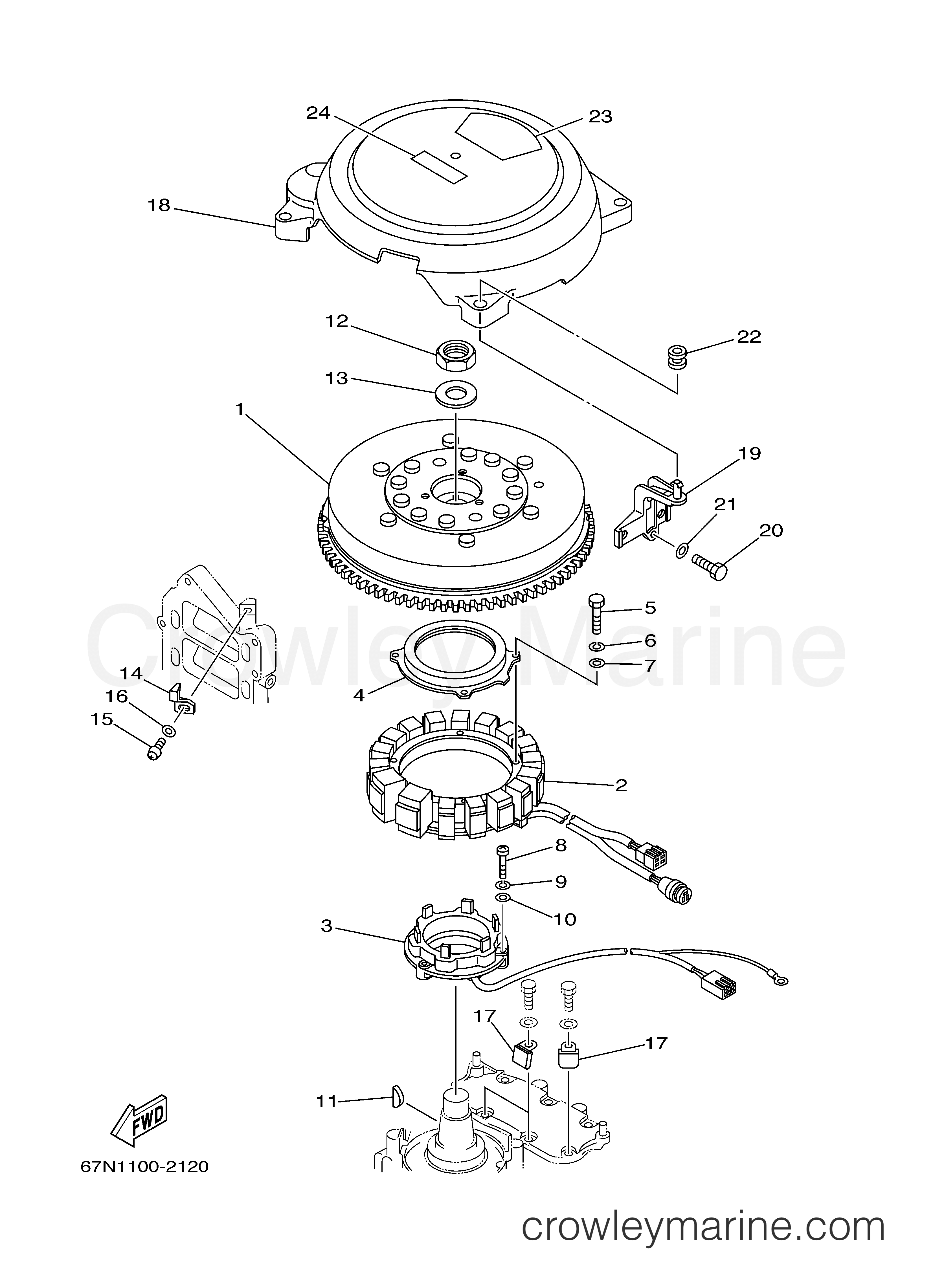

2005 Outboard 150hp - DX150TLRD GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DX150TLRD - GENERATOR
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly67H-85550-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$1256.55
$1068.07
You save $188.48
More details
STATOR ASSY
2
Yamaha Motors
STATOR ASSY65L-85510-11-00
Required: 1
STATOR ASSY
Supersedes: 65L-85510-00-00
Cross Ship
Leaves in 2-5 days
$1025.15
$871.38
You save $153.77
More details
Pulser Coil
3
Yamaha Motors
Pulser Coil61A-85580-01-00
Required: 1
COIL, PULSER
Cross Ship
Leaves in 2-5 days
$490.65
$417.05
You save $73.60
More details
Cover
4
Yamaha Motors
Cover61A-83721-00-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$27.40
$23.29
You save $4.11
More details
.WASHER, SPRING
6
Yamaha Motors
.WASHER, SPRING92990-06100-00
Required: 4
WASHER, SPRING
Supersedes: 92903-06100-00
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98580-05530-00
Required: 3
SCREW, PAN HEAD
Supersedes: 97885-05030-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Nut
12
Yamaha Motors
Nut90170-24M22-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$14.99
$12.74
You save $2.25
More details
Plate Washer
13
Yamaha Motors
Plate Washer90201-25M02-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$7.70
$6.54
You save $1.16
More details
Timing Plate
14
Yamaha Motors
Timing Plate6E5-81332-00-00
Required: 1
PLATE, TIMING
Cross Ship
Leaves in 2-5 days
$23.55
$20.02
You save $3.53
More details
Clamp
17
Yamaha Motors
Clamp90465-06M84-00
Required: 3
CLAMP
Cross Ship
Leaves in 2-5 days
$6.05
$5.14
You save $0.91
More details
Flywheel Cover
18
Yamaha Motors
Flywheel Cover67H-81337-00-00
Required: 1
COVER, FLYWHEEL
Cross Ship
Leaves in 2-5 days
$54.85
$46.62
You save $8.23
More details
Lead Clamp
19
Yamaha Motors
Lead Clamp65L-81338-00-1S
Required: 1
CLAMP, LEAD
Cross Ship
Leaves in 2-5 days
$38.85
$33.02
You save $5.83
More details
Caution Label
23
Yamaha Motors
Caution Label67H-14488-00-00
Required: 1
LABEL, CAUTION
Cross Ship
Leaves in 2-5 days
$6.75
$5.74
You save $1.01
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
