All diagrams for this model

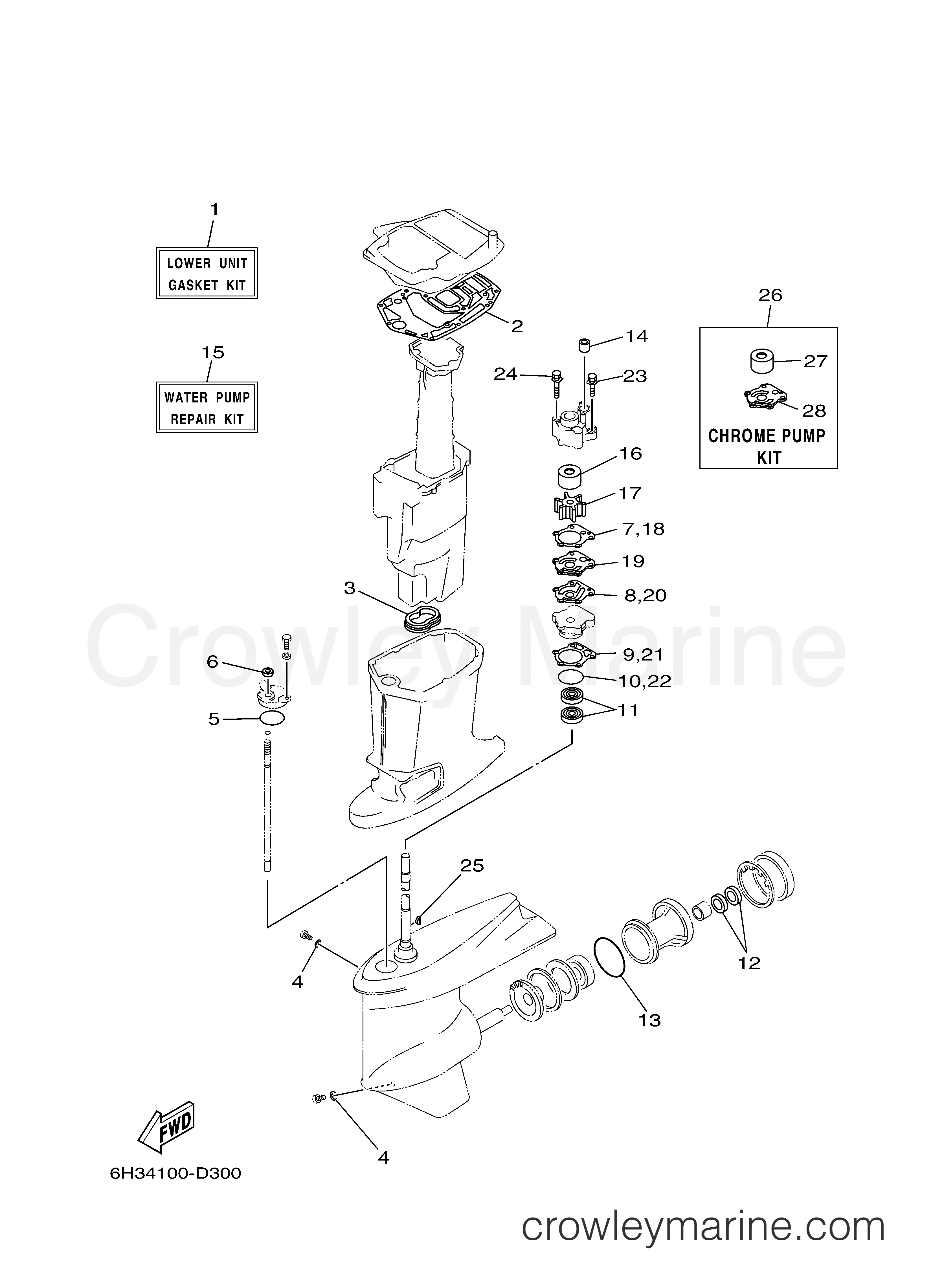

2005 Outboard 60hp - 60TLRD REPAIR KIT 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 60TLRD - REPAIR KIT 2
Change View:
LOWER UNIT GASKET KIT
1
Yamaha Motors
LOWER UNIT GASKET KIT6H2-W0001-21-00
Required: 1
LOWER UNIT GASKET KIT
Supersedes: 6H2-W0001-20-00
Cross Ship
Leaves in 2-5 days
$70.20
$59.67
You save $10.53
More details
Upper Casing Gasket
2
Yamaha Motors
Upper Casing Gasket6H3-45114-A1-00
Required: 1
.GASKET, UPPER CASING
Cross Ship
Leaves in 2-5 days
$12.45
$9.96
You save $2.49
More details
Cartridge Insert
27
Yamaha Motors
Cartridge Insert69D-44322-00-00
Required: 1
.INSERT, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$64.25
$54.61
You save $9.64
More details
Outer Plate
28
Yamaha Motors
Outer Plate688-44323-40-00
Required: 1
.OUTER PLATE, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$52.25
$44.41
You save $7.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
