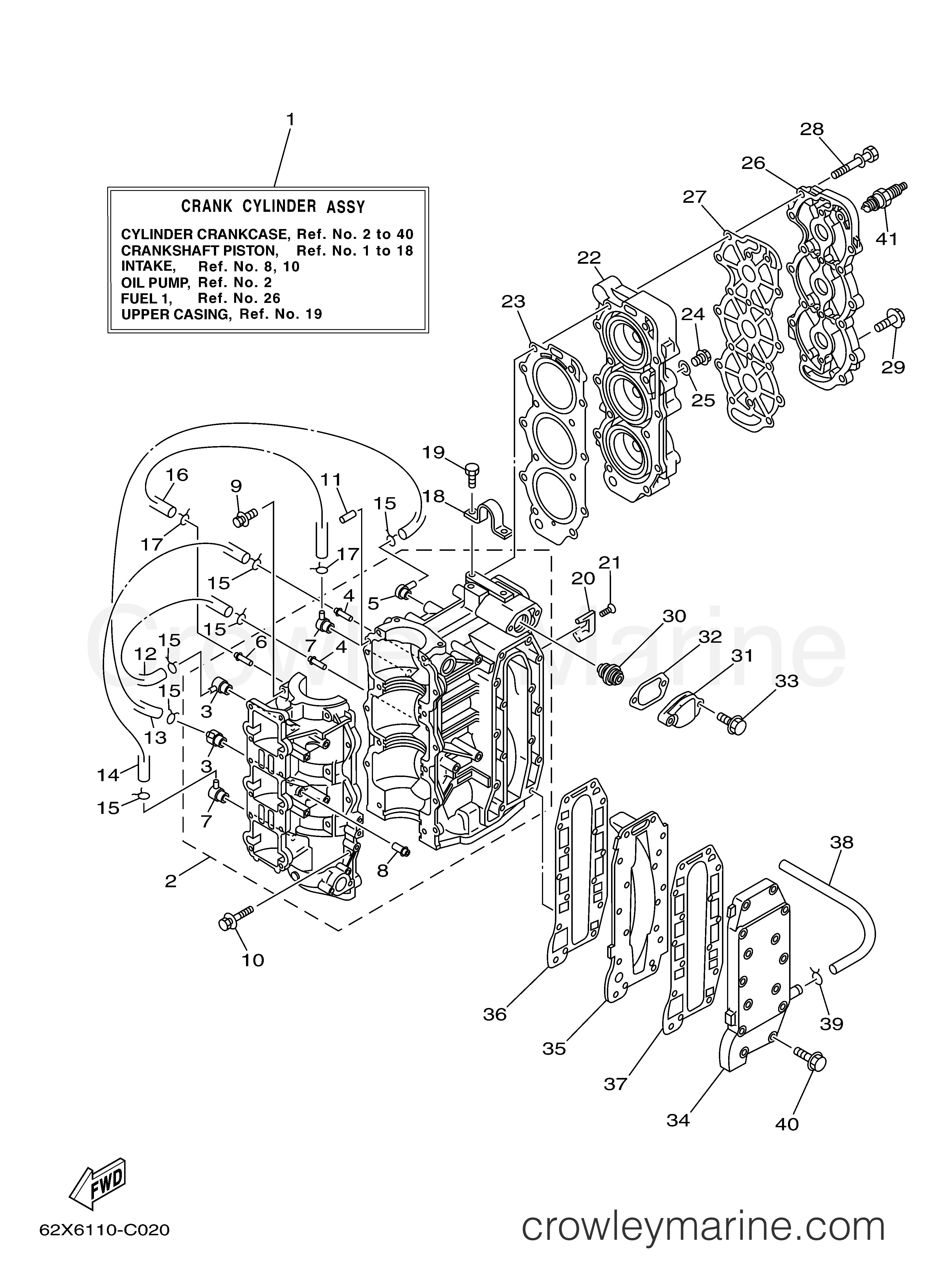

2005 Outboard 50hp - 50TLRD CYLINDER CRANKCASE diagram
1
Yamaha Motors
Crank Cylinder Assembly63D-W0090-13-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 63D-W0090-11-1S
$1800.00
You save $317.65
2
Yamaha Motors
Crankcase Assembly6H4-15100-13-00
Required: 1
CRANKCASE ASSY
Supersedes: 6H4-15100-13-1S
In stock
Only 1 remaining
$1953.72
You save $344.78
3
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 2
.CHECK VALVE ASSY
In stock
Only 4 remaining
$14.24
You save $2.51
$6.88
You save $1.21
5
Yamaha Motors
Hose Nipple6H4-11372-01-00
Required: 1
.NIPPLE, HOSE
$7.52
You save $1.33
$6.88
You save $1.21
7
Yamaha Motors
Check Valve Assembly688-11370-01-00
Required: 2
.CHECK VALVE ASSY
In stock
Only 1 remaining
$13.56
You save $2.39
8
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.93
You save $0.87
9
Yamaha Motors
Bolt with Washer90119-08019-00
Required: 8
BOLT, WITH WASHER
In stock
Only 1 remaining
$4.29
You save $0.76
10
Yamaha Motors
Bolt with Washer90119-06M13-00
Required: 6
BOLT, WITH WASHER
In stock
Only 4 remaining
$4.17
You save $0.74
In stock
5+ in stock
$3.91
You save $0.69
12
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L360)
Supersedes: 90445-07M46-00
In stock
Only 2 remaining
$6.29
You save $1.11
13
Yamaha Motors
Hose90445-07M67-00
Required: 1
HOSE (L310)
Supersedes: 90445-07M27-00
$6.29
You save $1.11
14
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L240)
Supersedes: 90445-07M24-00
In stock
Only 2 remaining
$6.29
You save $1.11
In stock
Only 3 remaining
$2.72
You save $0.48
In stock
5+ in stock
$6.29
You save $1.11
In stock
Only 3 remaining
$2.72
You save $0.48
18
Yamaha Motors
Engine Hanger6H4-11119-01-00
Required: 1
HANGER, ENGINE
$10.84
You save $1.91
$2.42
You save $0.43
In stock
5+ in stock
$5.95
You save $1.05
21
Yamaha Motors
Flat Head Screw98780-04016-00
Required: 2
SCREW, FLAT HEAD
In stock
5+ in stock
$1.27
You save $0.22
22
Yamaha Motors
Cylinder Head63D-11111-00-1S
Required: 1
HEAD, CYLINDER 1
In stock
Only 5 remaining
$154.83
You save $27.32
23
Yamaha Motors
Cylinder Head Gasket63D-11181-A2-00
Required: 1
.GASKET, CYLINDER HEAD 1
Supersedes: 63D-11181-A1-00
In stock
Only 4 remaining
$46.16
You save $8.15
24
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 2 remaining
$2.55
You save $0.45
26
Yamaha Motors
Cylinder Head Cover63D-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
$65.49
You save $11.56
27
Yamaha Motors
Head Cover Gasket63D-11193-A0-00
Required: 1
.GASKET, HEAD COVER 1
In stock
Only 1 remaining
$18.83
You save $3.32
28
Yamaha Motors
Bolt with Washer90119-08015-00
Required: 14
BOLT, WITH WASHER
In stock
5+ in stock
$2.42
You save $0.43
29
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 4
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
In stock
5+ in stock
$27.50
You save $4.85
31
Yamaha Motors
Thermostat Cover6H4-12413-00-1S
Required: 1
COVER, THERMOSTAT
In stock
5+ in stock
$12.07
You save $2.13
32
Yamaha Motors
Cover Gasket61A-12414-A0-00
Required: 1
GASKET, COVER
Supersedes: 6J8-12414-A0-00
In stock
Only 5 remaining
$5.14
You save $0.91
33
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
34
Yamaha Motors
Exhaust Outer Cover6H4-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
In stock
5+ in stock
$52.78
You save $9.32
35
Yamaha Motors
Exhaust Inner Cover6H4-41111-00-1S
Required: 1
INNER COVER, EXHAUST
In stock
Only 4 remaining
$46.92
You save $8.28
36
Yamaha Motors
Exhaust Inner Cover Gasket6H4-41112-A0-00
Required: 1
.GASKET, EXHAUST INNER COVER
In stock
Only 1 remaining
$14.41
You save $2.54
37
Yamaha Motors
Exhaust Cover Gasket6H4-41114-A0-00
Required: 1
GASKET, EXHAUST COVER
In stock
Only 1 remaining
$6.08
You save $1.07
38
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L240)
Supersedes: 90445-09M37-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
40
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 13
BOLT, WITH WASHER
In stock
5+ in stock
$3.02
You save $0.53
41
Yamaha Motors
BR8HS NGK SCREW TOPBR8-HS000-00-00
Required: 3
PLUG, SPARK (NGK B8HS-10)
Supersedes: 94702-00160-00
$4.25
You save $0.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
