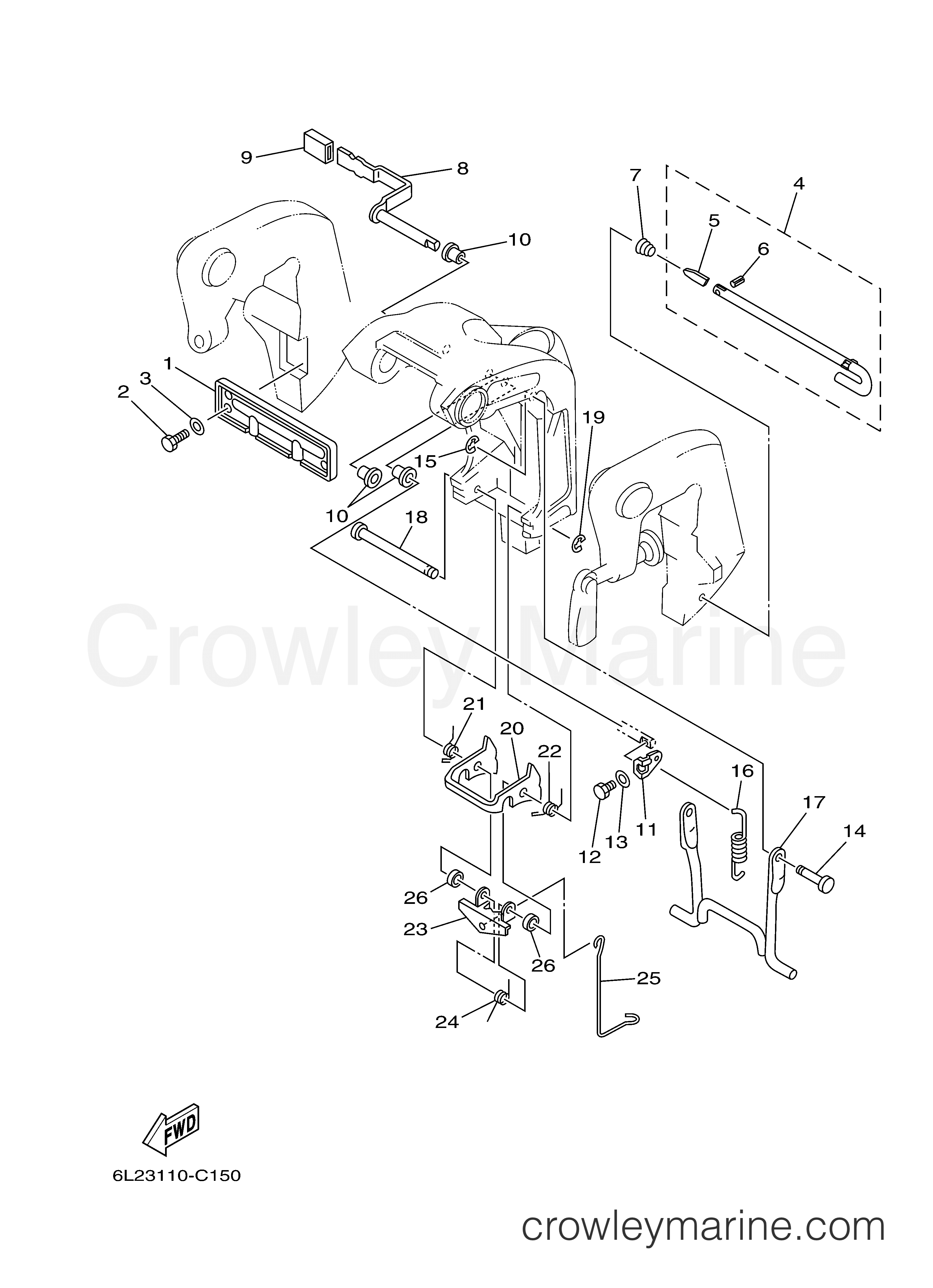

2005 Outboard 25hp - 25ELR BRACKET 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 25ELR - BRACKET 2
Change View:
BOLT
2
Yamaha Motors
BOLT97095-06010-00
Required: 4
BOLT
Supersedes: 97090-06010-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Tilt Lock Plate
5
Yamaha Motors
Tilt Lock Plate689-43165-00-00
Required: 1
.PLATE, TILT LOCK
Cross Ship
Leaves in 2-5 days
$7.70
$6.54
You save $1.16
More details
Spring Pin
6
Yamaha Motors
Spring Pin91690-30008-00
Required: 1
.PIN, SPRING
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Conical Spring
7
Yamaha Motors
Conical Spring90502-10M07-00
Required: 1
SPRING, CONICAL
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Tilt Lever Assembly
8
Yamaha Motors
Tilt Lever Assembly6L2-43630-01-00
Required: 1
TILT LEVER ASSY
Cross Ship
Leaves in 2-5 days
$45.80
$38.93
You save $6.87
More details
Bolt
12
Yamaha Motors
Bolt97095-05010-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Stopper Shaft
14
Yamaha Motors
Stopper Shaft6L2-43191-01-00
Required: 1
SHAFT, STOPPER
Cross Ship
Leaves in 2-5 days
$8.60
$7.31
You save $1.29
More details
Tilt Lock Shaft
18
Yamaha Motors
Tilt Lock Shaft6J8-43611-01-00
Required: 1
SHAFT, TILT LOCK
Cross Ship
Leaves in 2-5 days
$11.55
$9.82
You save $1.73
More details
Torsion Spring
21
Yamaha Motors
Torsion Spring90508-12M28-00
Required: 1
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Torsion Spring
22
Yamaha Motors
Torsion Spring90508-12M29-00
Required: 1
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$5.55
$4.72
You save $0.83
More details
Tilt Lock Plate
23
Yamaha Motors
Tilt Lock Plate6L2-43615-00-00
Required: 1
PLATE, TILT LOCK
Cross Ship
Leaves in 2-5 days
$14.75
$12.54
You save $2.21
More details
Lock Spring
24
Yamaha Motors
Lock Spring6L2-43657-00-00
Required: 1
SPRING, LOCK
Cross Ship
Leaves in 2-5 days
$6.60
$5.61
You save $0.99
More details
DAMPER, WATER SEAL 1
26
Yamaha Motors
DAMPER, WATER SEAL 16G0-44365-01-00
Required: 2
DAMPER, WATER SEAL
Supersedes: 6G0-44365-00-00
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
