2005 Outboard 15hp - 15MSH TOP COWLING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

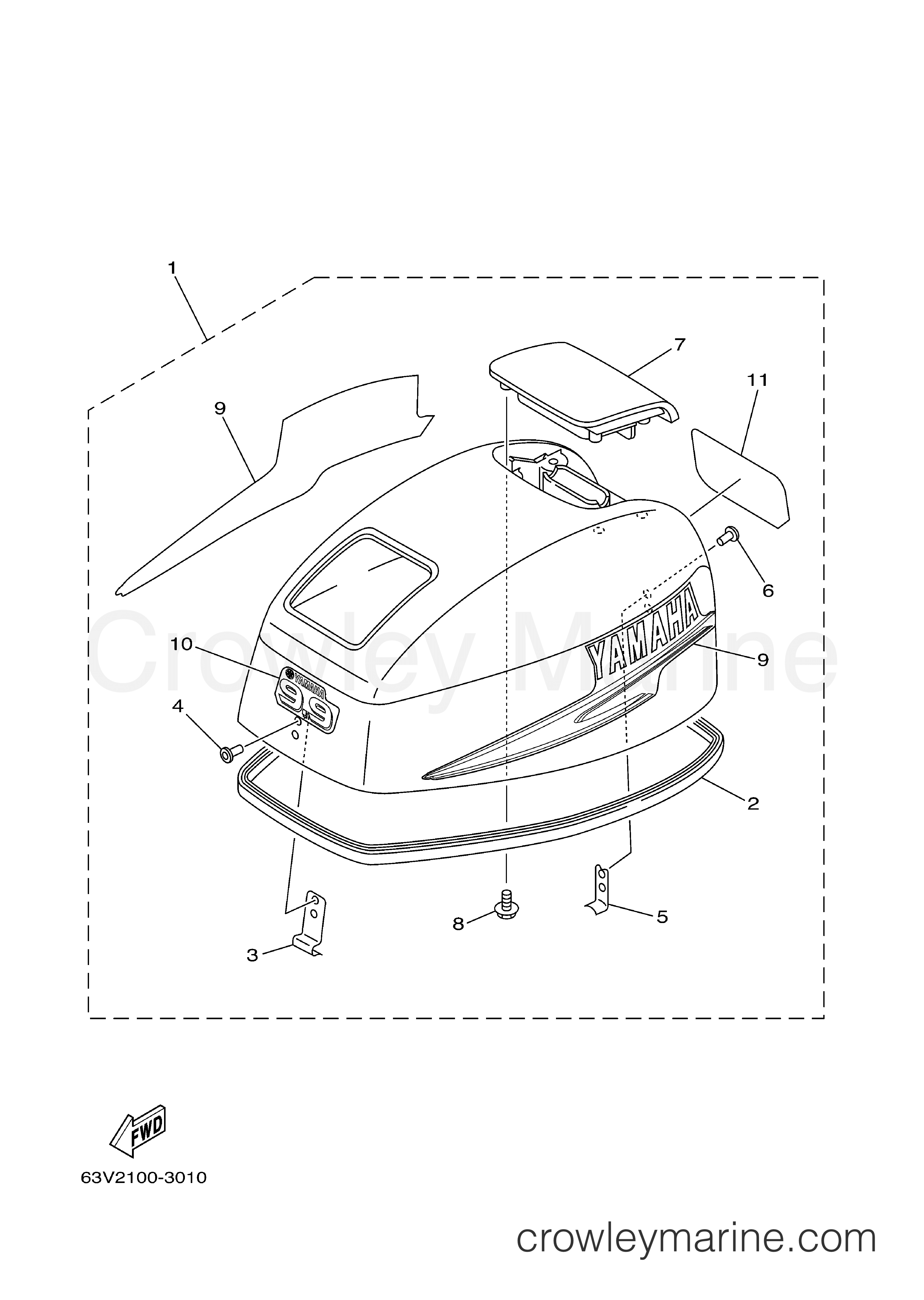

Yamaha Motors 15MSH - TOP COWLING
Change View:
Top Cowling Assembly
1
Yamaha Motors
Top Cowling Assembly63W-42610-30-00
Required: 1
TOP COWLING ASSY
Supersedes: 63W-42610-30-4D
Cross Ship
Leaves in 2-5 days
$375.90
$319.52
You save $56.38
More details
Seal
2
Yamaha Motors
Seal63V-42615-00-00
Required: 1
.SEAL
Cross Ship
Leaves in 20-30 days
$32.65
$27.75
You save $4.90
More details
Hook
3
Yamaha Motors
Hook6G1-42651-02-00
Required: 1
.HOOK
Cross Ship
Leaves in 2-5 days
$13.50
$11.47
You save $2.03
More details
MOLDING, AIR DUCT
7
Yamaha Motors
MOLDING, AIR DUCT63V-42613-A0-8D
Required: 1
.MOLDING, AIR DUCT
Supersedes: 63V-42613-01-4D
Cross Ship
Leaves in 2-5 days
$100.65
$85.55
You save $15.10
More details
BOLT, HEXAGON W/W DE
8
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 4
.BOLT, WITH WASHER
Supersedes: 97595-06516-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Cap
9
Yamaha Motors
Cap63V-W0070-21-00
Required: 1
.GRAPHIC SET
Supersedes: 63V-W0070-20-00
Cross Ship
Leaves in 2-5 days
$72.35
$61.50
You save $10.85
More details
Rear Graphic
11
Yamaha Motors
Rear Graphic63W-42678-20-00
Required: 1
.GRAPHIC, REAR
Cross Ship
Leaves in 2-5 days
$15.30
$13.00
You save $2.29
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
