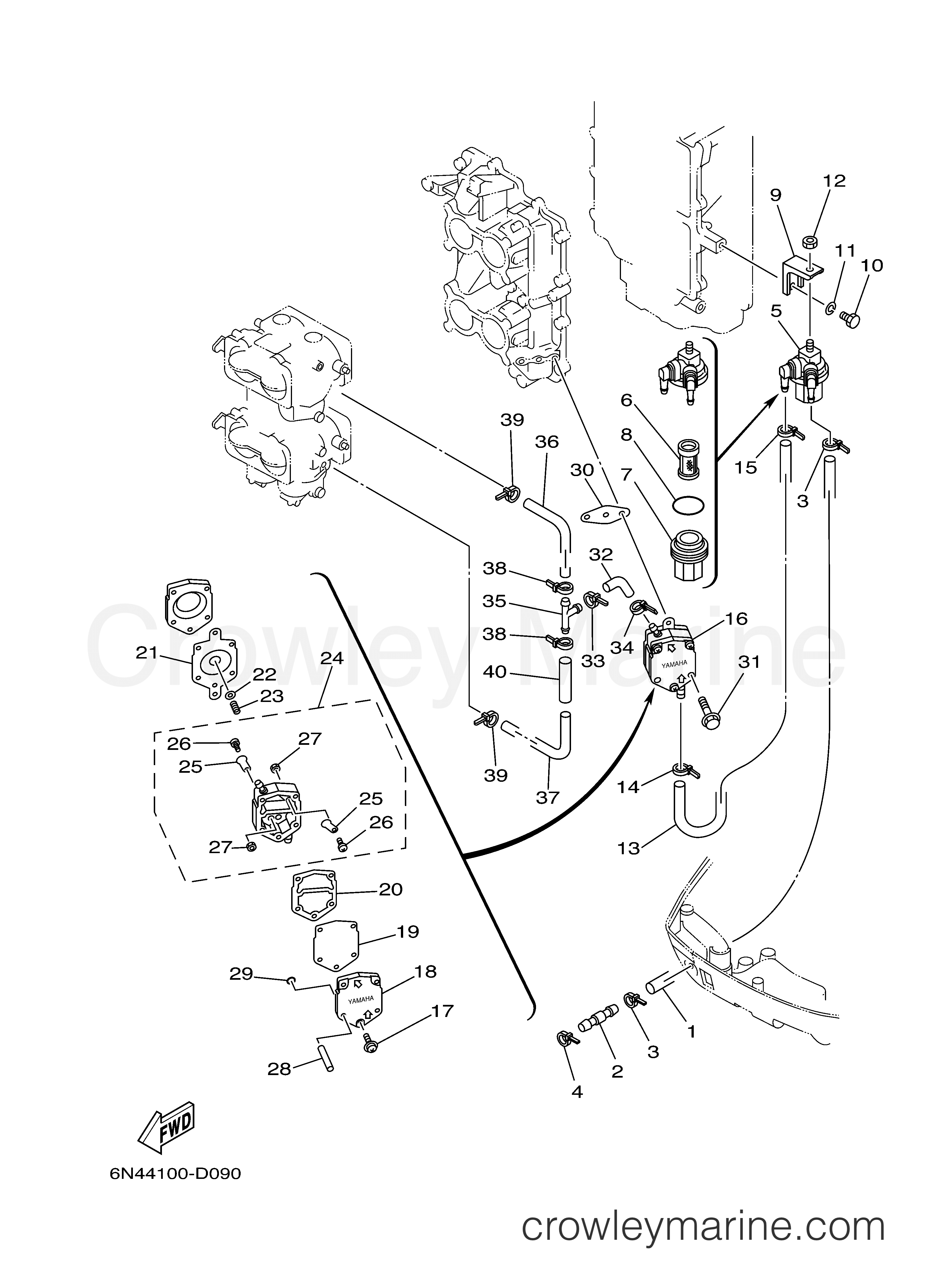

2005 Outboard 115hp - 115TXR FUEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 115TXR - FUEL
Change View:
Filter Bracket
9
Yamaha Motors
Filter Bracket6E5-24566-00-00
Required: 1
BRACKET, FILTER
Cross Ship
Leaves in 2-5 days
$35.85
$30.47
You save $5.38
More details
.WASHER, SPRING
11
Yamaha Motors
.WASHER, SPRING92990-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92903-06100-00
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details
Screw (M8 X 40)
17
Yamaha Motors
Screw (M8 X 40)6E5-24444-09-00
Required: 3
.SCREW
Supersedes: 6E5-24444-01-00
Cross Ship
Leaves in 2-5 days
$6.50
$5.52
You save $0.98
More details
Body
18
Yamaha Motors
Body6E5-24413-01-00
Required: 1
.BODY 2
Cross Ship
Leaves in 2-5 days
$27.05
$22.99
You save $4.06
More details
Diaphragm
19
Yamaha Motors
Diaphragm6E5-24471-01-00
Required: 1
.DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$12.65
$10.75
You save $1.90
More details
Body Gasket
20
Yamaha Motors
Body Gasket6E5-24435-01-00
Required: 1
.GASKET, BODY 2
Cross Ship
Leaves in 2-5 days
$6.30
$5.35
You save $0.95
More details
Diaphragm
21
Yamaha Motors
Diaphragm6E5-24411-01-00
Required: 1
.DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$52.25
$44.41
You save $7.84
More details
Spring Seat
22
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
Diaphragm Spring
23
Yamaha Motors
Diaphragm Spring6E5-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$10.35
$8.80
You save $1.55
More details
Body
24
Yamaha Motors
Body6E5-24412-11-00
Required: 1
.BODY 1
Cross Ship
Leaves in 2-5 days
$73.70
$62.65
You save $11.05
More details
Fuel Pump Bushing
28
Yamaha Motors
Fuel Pump Bushing6E5-24492-00-00
Required: 2
..BUSH, FUEL PUMP
Cross Ship
Leaves in 2-5 days
$14.05
$11.94
You save $2.11
More details
O-Ring
29
Yamaha Motors
O-Ring6E5-24486-00-00
Required: 2
.O-RING
Cross Ship
Leaves in 2-5 days
$7.40
$6.29
You save $1.11
More details
BOLT, HEXAGON W/W DE
31
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06550-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06550-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
