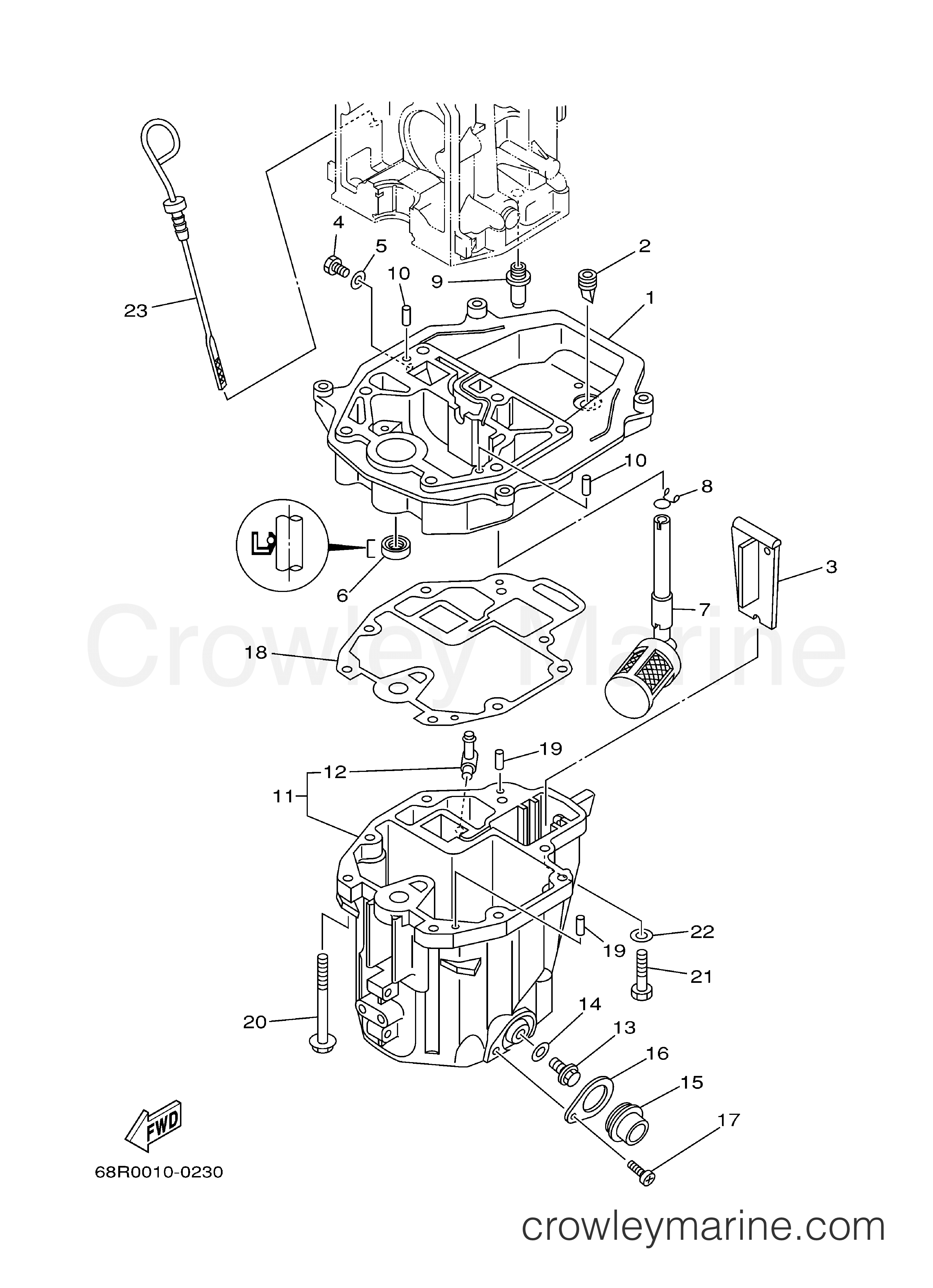

2004 Outboard 8hp - T8PLRC OIL PAN diagram
1
Yamaha Motors
Exhaust Guide68T-41137-00-5B
Required: 1
GUIDE, EXHAUST
Supersedes: 68T-41137-00-94
$177.44
You save $31.31
2
Yamaha Motors
Seal Rubber65W-42717-00-00
Required: 1
RUBBER, SEAL 2
$5.70
You save $1.00
$29.24
You save $5.16
$0.94
You save $0.17
$2.85
You save $0.50
$10.58
You save $1.87
$79.60
You save $14.05
In stock
Only 3 remaining
$2.29
You save $0.41
9
Yamaha Motors
Relief Valve Assembly6G8-11575-00-00
Required: 1
RELIEF VALVE ASSY
$58.65
You save $10.35
In stock
Only 2 remaining
$2.17
You save $0.38
11
Yamaha Motors
Oil Pan68T-15311-01-CA
Required: 1
OIL PAN
Supersedes: 68T-15311-00-5B
$166.73
You save $29.42
12
Yamaha Motors
Hose Nipple6H1-11372-00-00
Required: 1
.NIPPLE, HOSE
$44.24
You save $7.81
13
Yamaha Motors
Straight Screw Plug90340-10M10-00
Required: 1
PLUG, STRAIGHT SCREW
$10.12
You save $1.79
In stock
Only 5 remaining
$2.29
You save $0.41
$5.99
You save $1.06
16
Yamaha Motors
Engine Mount Spacer68T-15317-00-00
Required: 1
SPACER, ENGINE MOUNT
In stock
Only 1 remaining
$3.10
You save $0.55
17
Yamaha Motors
Pan Head Screw97885-05008-00
Required: 1
SCREW, PAN HEAD
$2.42
You save $0.43
$28.82
You save $5.09
19
Yamaha Motors
Dowel Pin93604-10M03-00
Required: 2
PIN, DOWEL
Supersedes: 93604-12M07-00
In stock
Only 1 remaining
$4.42
You save $0.78
20
Yamaha Motors
Bolt with Washer90119-08201-00
Required: 6
BOLT, WITH WASHER
Supersedes: 90119-08005-00
$7.69
You save $1.36
21
Yamaha Motors
Bolt97080-08030-00
Required: 2
BOLT
Supersedes: 97075-08030-00
In stock
5+ in stock
$3.91
You save $0.69
22
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
23
Yamaha Motors
Oil Level Plug68T-15362-00-00
Required: 1
PLUG, OIL LEVEL
$30.30
You save $5.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
