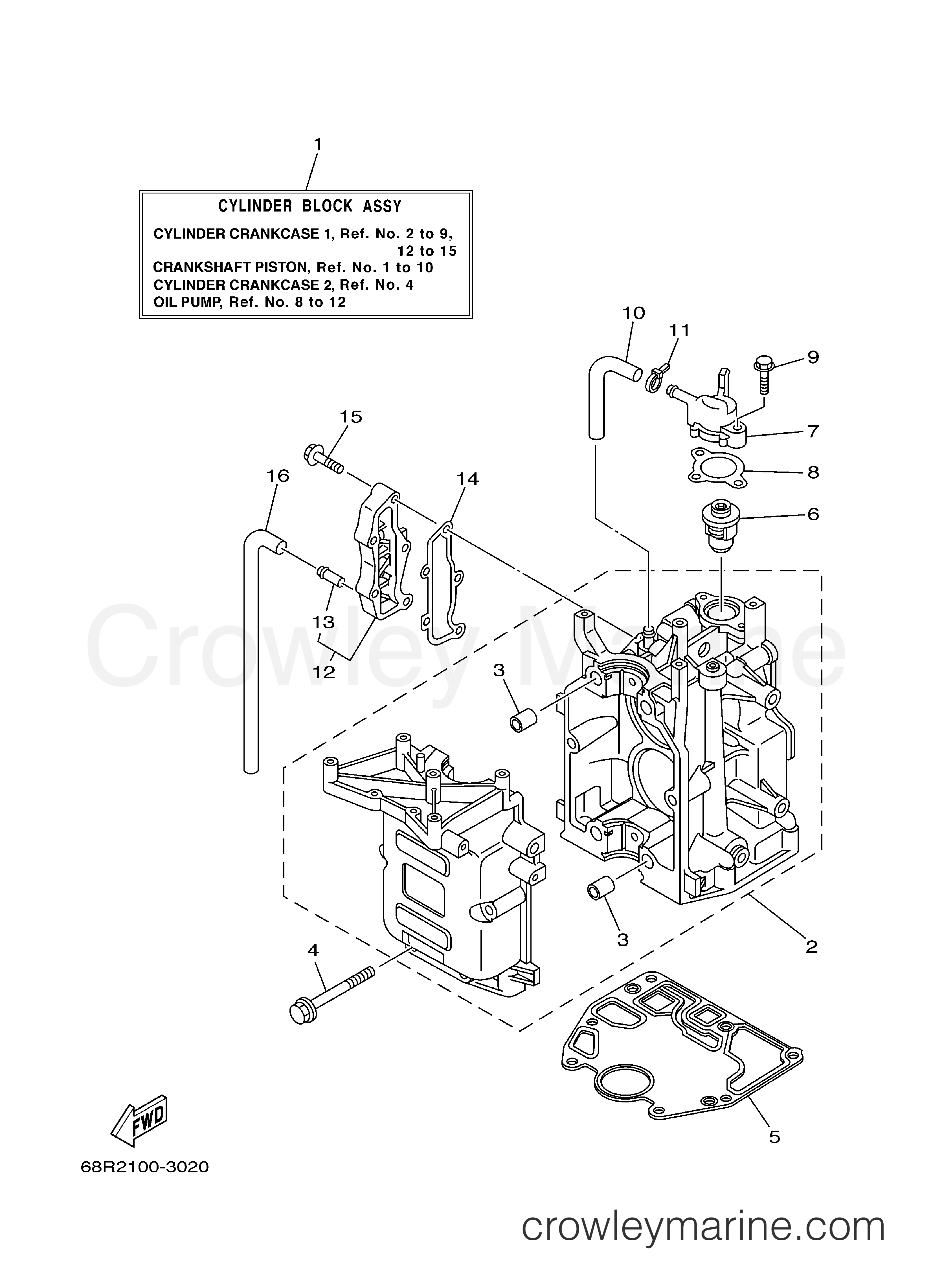

2004 Outboard 8hp - T8PLRC CYLINDER CRANKCASE 1 diagram
1
Yamaha Motors
Cylinder Block Assembly60R-WE09B-00-1S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 68T-W009B-10-1S
$1536.25
You save $271.10
2
Yamaha Motors
Crankcase Assembly6AU-15100-00-00
Required: 1
CRANKCASE ASSY
Supersedes: 68T-15100-10-1S
$1369.77
You save $241.73
-50%
In stock
Only 2 remaining
$2.45
You save $2.45
4
Yamaha Motors
Bolt with Washer90119-08015-00
Required: 6
BOLT, WITH WASHER
Supersedes: 90119-08M29-00
In stock
5+ in stock
$2.28
You save $0.57
5
Yamaha Motors
Cylinder Gasket68T-11351-00-00
Required: 1
.GASKET, CYLINDER
$20.44
You save $5.11
6
Yamaha Motors
Thermostat66M-12411-01-00
Required: 1
THERMOSTAT
Supersedes: 66M-12411-00-00
In stock
5+ in stock
$36.48
You save $9.12
7
Yamaha Motors
Thermostat Cover68T-12413-00-1S
Required: 1
COVER, THERMOSTAT
$17.85
You save $3.15
8
Yamaha Motors
Cover Gasket6G8-12414-A0-00
Required: 1
.GASKET, COVER
In stock
5+ in stock
$6.64
You save $1.66
9
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
$13.30
You save $2.35
11
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
12
Yamaha Motors
Exhaust Outer Cover6AU-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 68T-41113-00-1S
$23.93
You save $4.22
13
Yamaha Motors
.PIPE, JOINT 36E9-24378-00-00
Required: 1
.PIPE, JOINT 3
$3.40
You save $0.60
14
Yamaha Motors
Exhaust Outer Cover Gasket68T-41114-A0-00
Required: 1
.GASKET, EXHAUST OUTER COVER
$5.28
You save $1.32
15
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 5
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
$13.22
You save $2.33
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
