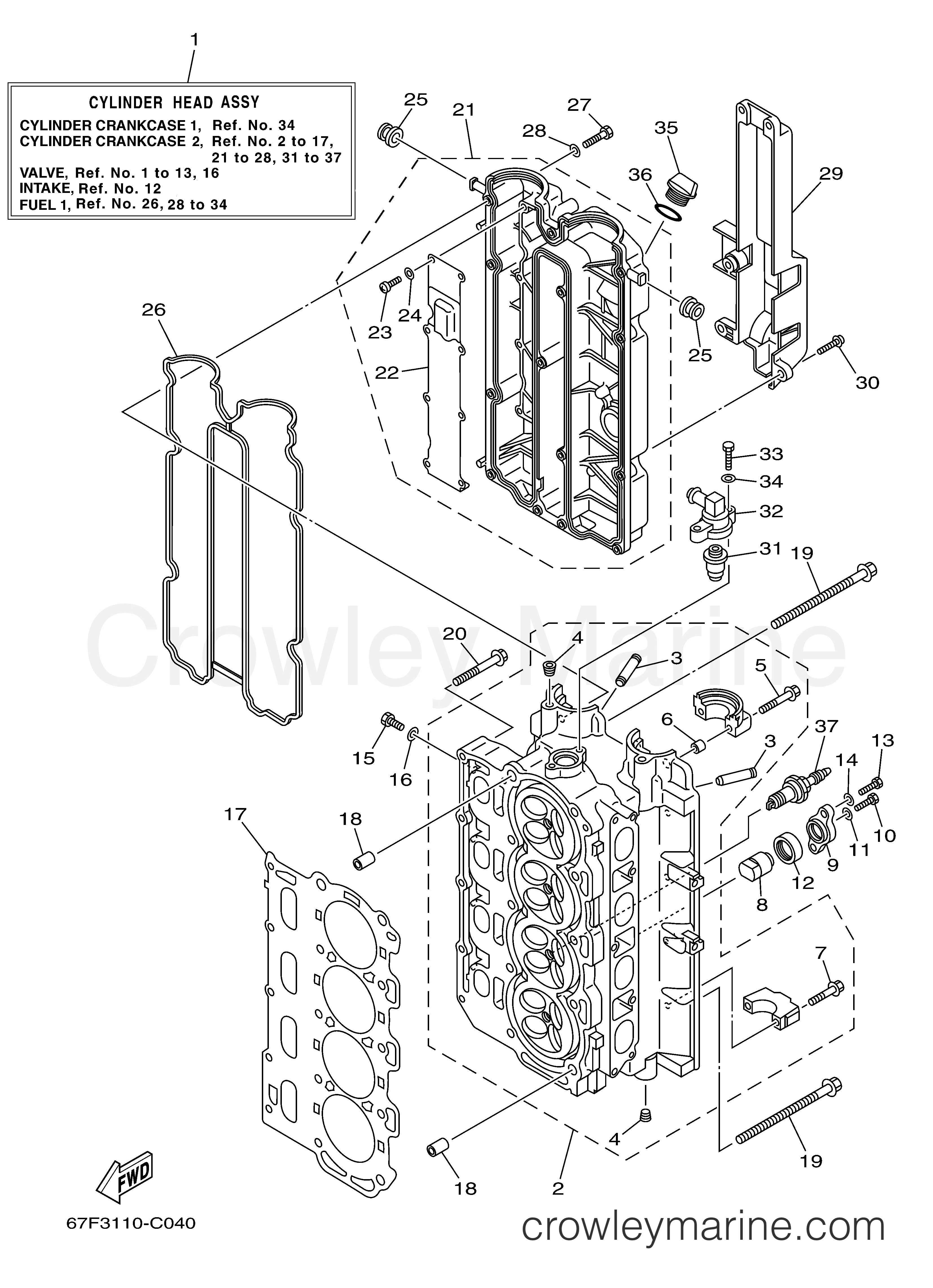

2004 Outboard 90hp - F90TLRC CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Obsolete Yamaha Part67F-W009A-23-9S
Required: 1
CYLINDER HEAD COMPLETE
Supersedes: 67F-W009A-21-1S
$4315.28
You save $761.52
2
Yamaha Motors
Cylinder Head Assembly 67F-11110-11-94
Required: 1
CYLINDER HEAD ASSY
$2689.06
You save $474.54
3
Yamaha Motors
Valve Guide67F-11133-10-00
Required: 16
.GUIDE, VALVE 1
$108.46
You save $19.14
4
Yamaha Motors
Taper Screw Plug90344-51008-00
Required: 4
.PLUG, TAPER SCREW
Supersedes: 90344-51019-00
In stock
Only 1 remaining
$2.59
You save $0.46
5
Yamaha Motors
Washer-Cam Caps Bolt90119-07235-00
Required: 4
.BOLT/WASHER-CAM CAPS
$3.10
You save $0.55
$4.72
You save $0.83
7
Yamaha Motors
Bolt With Washer90119-07234-00
Required: 16
.BOLT, WITH WASHER
$2.72
You save $0.48
8
Yamaha Motors
Anode68V-11325-01-00
Required: 2
ANODE
Supersedes: 68V-11325-00-00
In stock
5+ in stock
$23.04
You save $4.07
9
Yamaha Motors
ANODE COVER ASSY67F-11301-11-00
Required: 2
COVER, ANODE
Supersedes: 67F-11327-00-94
$46.37
You save $8.18
10
Yamaha Motors
BOLT97095-06020-00
Required: 2
BOLT
Supersedes: 97075-06020-00
$3.82
You save $0.68
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
12
Yamaha Motors
Anode Grommet67F-11328-01-00
Required: 2
.GROMMET, ANODE
Supersedes: 67F-11328-00-00
In stock
5+ in stock
$3.23
You save $0.57
$5.06
You save $0.89
14
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
$0.94
You save $0.17
$2.85
You save $0.50
17
Yamaha Motors
Cylinder Head Gasket67F-11181-03-00
Required: 1
.GASKET, CYLINDER HEAD 1
Supersedes: 67F-11181-02-00
In stock
Only 2 remaining
$123.17
You save $21.73
18
Yamaha Motors
Dowel Pin99530-14016-00
Required: 2
COLLAR
Supersedes: 90387-10M08-00
In stock
Only 4 remaining
$3.23
You save $0.57
$5.52
You save $0.98
20
Yamaha Motors
Bolt with Washer90119-08M91-00
Required: 5
BOLT, WITH WASHER
In stock
5+ in stock
$4.17
You save $0.74
21
Yamaha Motors
Cylinder Head Cover68V-11191-00-9S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 68V-11191-00-1S
$272.09
You save $48.01
22
Yamaha Motors
Breather Cover67F-11168-00-00
Required: 1
.COVER, BREATHER
$40.55
You save $7.16
23
Yamaha Motors
Pan Head Screw98507-04008-00
Required: 8
.SCREW, PAN HEAD
$1.82
You save $0.32
$1.57
You save $0.28
In stock
5+ in stock
$8.07
You save $1.42
26
Yamaha Motors
Cylinder Seal67F-11356-00-00
Required: 1
.SEAL, CYLINDER 2
$52.78
You save $9.32
27
Yamaha Motors
Bolt97080-06030-00
Required: 14
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 14
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
29
Yamaha Motors
COVER, CYLINDER HEAD 267F-11192-02-00
Required: 1
COVER, CYLINDER HEAD 2
Supersedes: 67F-11192-00-00
In stock
5+ in stock
$16.41
You save $2.89
30
Yamaha Motors
Screw With Washer90159-06M29-00
Required: 5
SCREW, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
31
Yamaha Motors
Thermostat67F-12411-01-00
Required: 1
THERMOSTAT
Supersedes: 67F-12411-00-00
In stock
5+ in stock
$38.67
You save $6.83
32
Yamaha Motors
Thermostat Cover68V-12413-00-9S
Required: 1
COVER, THERMOSTAT
Supersedes: 68V-12413-00-1S
In stock
Only 1 remaining
$16.83
You save $2.97
$2.85
You save $0.50
34
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$11.47
You save $2.03
36
Yamaha Motors
"O"-Ring93210-25070-00
Required: 1
.O-RING
Supersedes: 93210-24M79-00
$5.52
You save $0.97
37
Yamaha Motors
(NGK LFR5A-11) Spark PlugLFR-5A110-00-00
Required: 4
PLUG, SPARK (NGK LFR5A-11)
Supersedes: NGK-LFR5A-11-00
In stock
5+ in stock
$10.63
You save $1.88
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
