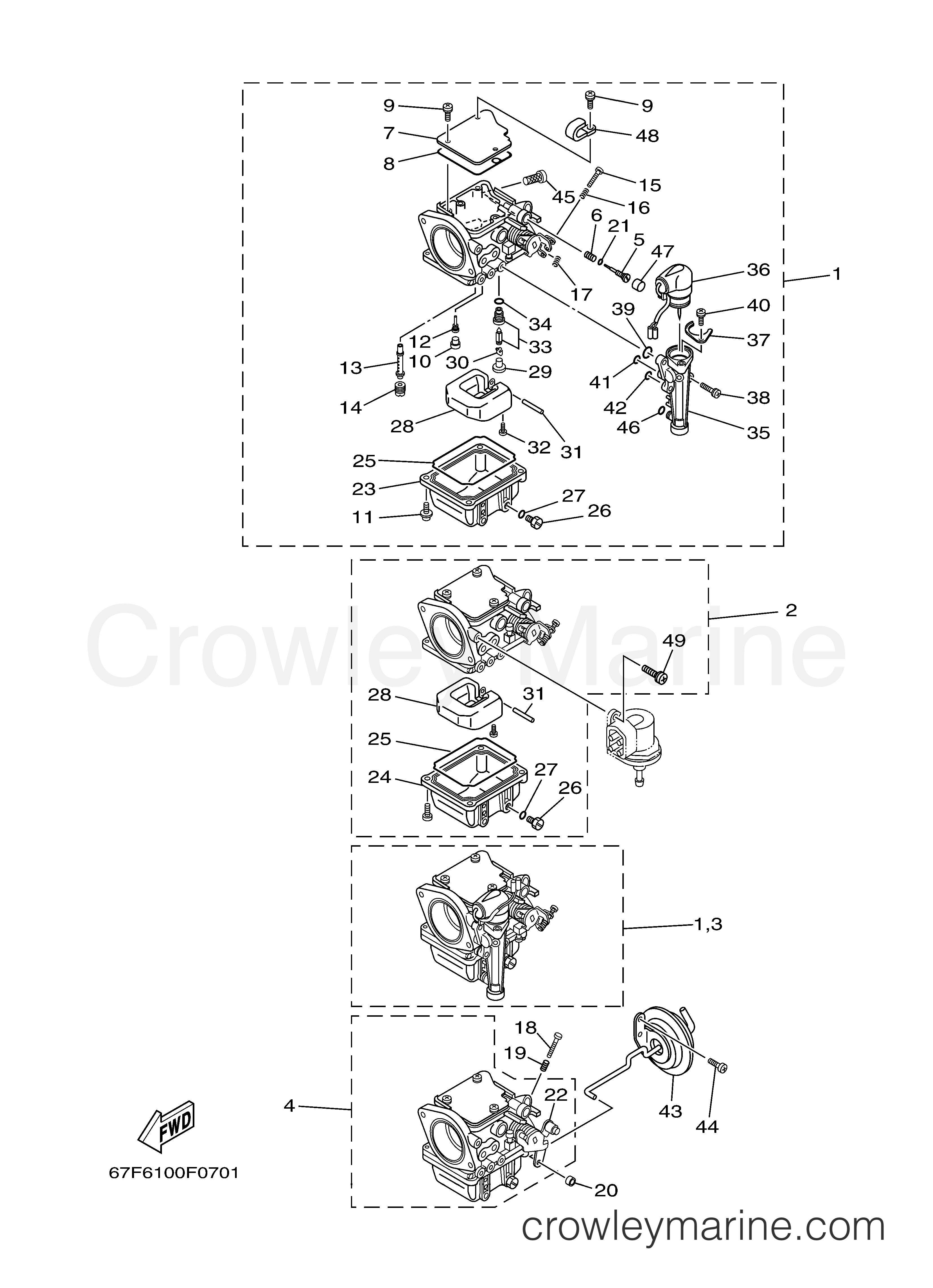

2004 Outboard 75hp - F75TLRC CARBURETOR 1 diagram
1
Yamaha Motors
Carburetor Assembly67G-14901-41-00
Required: 1
CARBURETOR ASSY 1
$567.72
You save $100.19
2
Yamaha Motors
Carburetor Assembly67G-14902-41-00
Required: 1
CARBURETOR ASSY 2
$647.23
You save $114.22
3
Yamaha Motors
Carburetor Assembly67G-14901-41-00
Required: 1
CARBURETOR ASSY 1
$567.72
You save $100.19
4
Yamaha Motors
Carburetor Assembly67G-14904-41-00
Required: 1
CARBURETOR ASSY 4
$637.67
You save $112.53
5
Yamaha Motors
Pilot Screw67F-14923-00-00
Required: 4
.SCREW, PILOT
In stock
Only 1 remaining
$21.68
You save $3.82
In stock
5+ in stock
$2.93
You save $0.52
$23.50
You save $4.15
In stock
5+ in stock
$20.95
You save $3.70
9
Yamaha Motors
Screw98580-04010-00
Required: 12
.SCREW, PAN HEAD
Supersedes: 97803-04010-00
In stock
Only 2 remaining
$8.07
You save $1.42
In stock
Only 4 remaining
$7.73
You save $1.37
11
Yamaha Motors
Screw With Washer97980-04114-00
Required: 16
.SCREW, WITH WASHER
In stock
5+ in stock
$4.55
You save $0.80
$34.04
You save $6.01
$39.82
You save $7.03
14
Yamaha Motors
Main Jet (#115)62P-14943-30-00
Required: 4
.JET, MAIN (#115)
$25.80
You save $4.55
$5.74
You save $1.01
In stock
Only 1 remaining
$5.74
You save $1.01
$4.93
You save $0.87
$9.18
You save $1.62
19
Yamaha Motors
Compression Spring90501-10326-00
Required: 1
.SPRING, COMPRESSION
$6.29
You save $1.11
$5.74
You save $1.01
$4.72
You save $0.83
In stock
Only 2 remaining
$12.07
You save $2.13
23
Yamaha Motors
Float Chamber Body67F-14980-01-00
Required: 2
..BODY, FLOAT CHAMBER
Supersedes: 67F-14980-00-00
$167.19
You save $29.50
24
Yamaha Motors
Float Chamber Body67F-14980-11-00
Required: 2
..BODY, FLOAT CHAMBER
Supersedes: 67F-14980-10-00
$167.19
You save $29.50
25
Yamaha Motors
Float Chamber Gasket67F-14984-00-00
Required: 4
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$19.38
You save $3.42
26
Yamaha Motors
SCREW, DRAIN6H3-14992-01-00
Required: 4
.SCREW, DRAIN
Supersedes: 6H3-14992-00-00
In stock
5+ in stock
$18.15
You save $3.20
In stock
5+ in stock
$8.07
You save $1.42
In stock
5+ in stock
$21.55
You save $3.80
In stock
Only 3 remaining
$6.88
You save $1.21
$6.12
You save $1.08
31
Yamaha Motors
Float Arm Pin6H4-14548-00-00
Required: 4
.PIN, FLOAT ARM
$8.20
You save $1.45
32
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 4
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.70
You save $0.30
33
Yamaha Motors
NEEDLE VALVE ASSY60C-14590-03-00
Required: 4
.NEEDLE VALVE ASSY
Supersedes: 60C-14590-01-00
$42.20
You save $7.45
In stock
5+ in stock
$5.70
You save $1.00
35
Yamaha Motors
BODY, STARTER67F-14378-01-00
Required: 2
..BODY, STARTER
Supersedes: 67F-14378-00-00
$173.91
You save $30.69
36
Yamaha Motors
PRIME STARTER ASSY67F-14380-02-00
Required: 2
..PRIME STARTER ASSY
Supersedes: 67F-14380-01-00
In stock
Only 1 remaining
$343.53
You save $60.62
37
Yamaha Motors
Starter Lever Plate67F-14178-00-00
Required: 2
..PLATE, STARTER LEVER
$15.55
You save $2.75
$5.74
You save $1.01
In stock
5+ in stock
$5.74
You save $1.01
$5.70
You save $1.00
In stock
5+ in stock
$4.72
You save $0.83
In stock
5+ in stock
$4.72
You save $0.83
43
Yamaha Motors
Diaphragm Assembly67F-14369-00-00
Required: 1
DIAPHRAGM ASSY 2
$126.69
You save $22.36
44
Yamaha Motors
Pan Head Screw67F-14325-00-00
Required: 2
SCREW, PAN HEAD
In stock
Only 2 remaining
$8.67
You save $1.53
45
Yamaha Motors
Filter Element67F-14371-01-00
Required: 4
.ELEMENT, FILTER
$15.38
You save $2.71
In stock
5+ in stock
$5.31
You save $0.94
47
Yamaha Motors
Plug67F-14355-10-00
Required: 4
.PLUG
Supersedes: 67F-14355-00-00
$4.76
You save $0.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
