All diagrams for this model

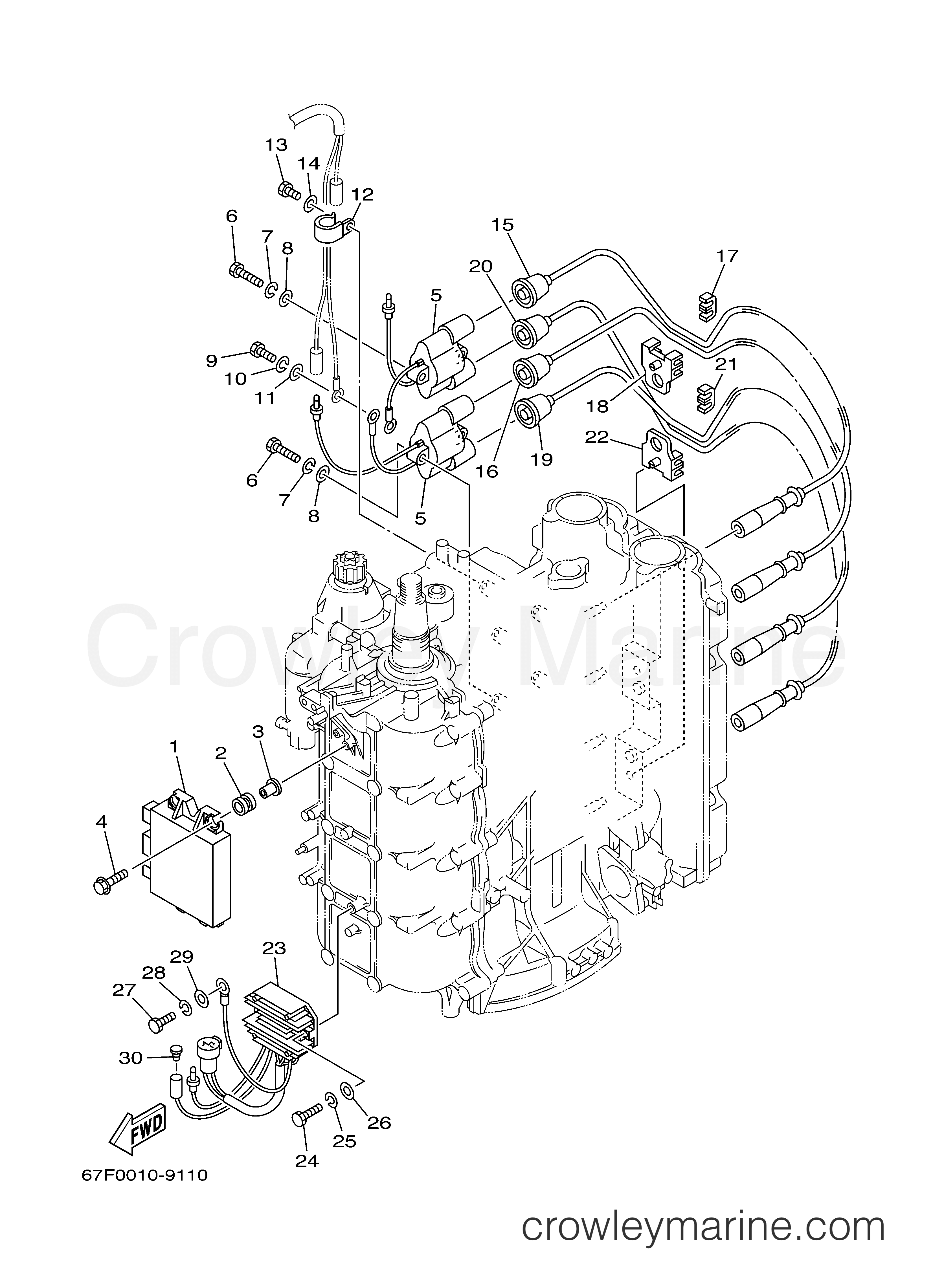

2003 Outboard 75hp - F75TLRB ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F75TLRB - ELECTRICAL 1
Change View:
C.D.I. UNIT Assembly
1
Yamaha Motors
C.D.I. UNIT Assembly62P-85540-00-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$574.90
$488.66
You save $86.24
More details
DAMPER, IGNITION COIL
2
Yamaha Motors
DAMPER, IGNITION COIL68V-82317-01-00
Required: 4
DAMPER, IGNITION COIL
Supersedes: 68V-82317-00-00
Cross Ship
Leaves in 2-5 days
$5.95
$5.06
You save $0.89
More details
Ignition Coil Assembly
5
Yamaha Motors
Ignition Coil Assembly67F-85570-00-00
Required: 2
IGNITION COIL ASSY
Cross Ship
Leaves in 2-5 days
$294.80
$250.58
You save $44.22
More details
Clamp
12
Yamaha Motors
Clamp90465-06M86-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$7.15
$6.08
You save $1.07
More details
BOLT
13
Yamaha Motors
BOLT97095-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
High Tension Cord
15
Yamaha Motors
High Tension Cord67F-82341-00-00
Required: 1
CORD, HIGH TENSION 1
Cross Ship
Leaves in 2-5 days
$44.90
$38.17
You save $6.73
More details
High Tension Cord
16
Yamaha Motors
High Tension Cord67F-82342-00-00
Required: 1
CORD, HIGH TENSION 2
Cross Ship
Leaves in 2-5 days
$43.45
$36.93
You save $6.52
More details
Cord Clamp
18
Yamaha Motors
Cord Clamp67F-82362-00-00
Required: 1
CLAMP, CORD 2
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
High Tension Cord
19
Yamaha Motors
High Tension Cord67F-82343-00-00
Required: 1
CORD, HIGH TENSION 3
Cross Ship
Leaves in 2-5 days
$44.05
$37.44
You save $6.61
More details
High Tension Cord
20
Yamaha Motors
High Tension Cord67F-82344-00-00
Required: 1
CORD, HIGH TENSION 4
Cross Ship
Leaves in 2-5 days
$44.85
$38.12
You save $6.73
More details
Cord Clamp
22
Yamaha Motors
Cord Clamp67F-82362-00-00
Required: 1
CLAMP, CORD 2
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
Rectifier & Regulator Assembly
23
Yamaha Motors
Rectifier & Regulator Assembly67F-81960-11-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$331.00
$281.35
You save $49.65
More details
BOLT
24
Yamaha Motors
BOLT97095-06025-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Lead Wire Cover
30
Yamaha Motors
Lead Wire Cover703-82119-00-00
Required: 1
COVER, LEAD WIRE
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
