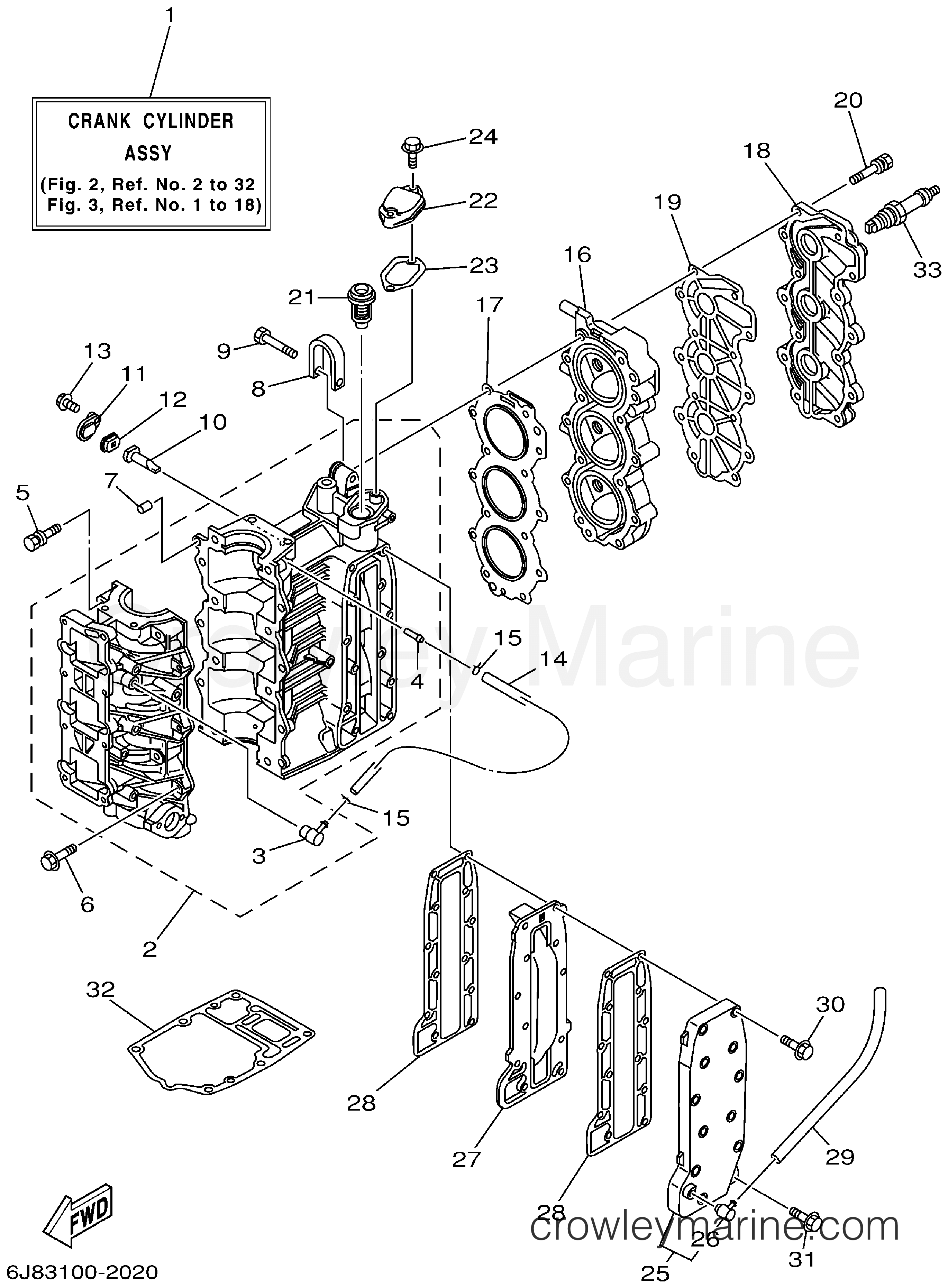

2002 Outboard 25hp - 25MSH3A CYLINDER CRANKCASE diagram
1
Yamaha Motors
Obsolete Yamaha Part6J8-W0090-06-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 6J8-W0090-05-1S
$1748.58
You save $308.57
$730.83
You save $128.97
3
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 1
.CHECK VALVE ASSY
Supersedes: 650-11370-00-00
In stock
Only 4 remaining
$14.24
You save $2.51
$6.88
You save $1.21
5
Yamaha Motors
Bolt with Washer90119-08019-00
Required: 8
BOLT, WITH WASHER
In stock
Only 1 remaining
$4.29
You save $0.76
6
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 6
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.74
You save $0.66
In stock
5+ in stock
$3.91
You save $0.69
8
Yamaha Motors
Engine Hanger6F5-11119-00-00
Required: 1
HANGER, ENGINE
$10.33
You save $1.82
$2.42
You save $0.43
In stock
5+ in stock
$3.78
You save $0.67
11
Yamaha Motors
Anode Cover6H3-11327-00-94
Required: 2
COVER, ANODE
Supersedes: 6H3-11327-00-1S
$27.63
You save $4.88
12
Yamaha Motors
ANODE GROMMET6H3-11328-01-00
Required: 2
GROMMET, ANODE
Supersedes: 6H3-11328-00-00
In stock
5+ in stock
$5.74
You save $1.01
13
Yamaha Motors
Bolt with Washer90119-06023-00
Required: 2
BOLT, WITH WASHER
$2.72
You save $0.48
14
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 1
HOSE (L135)
Supersedes: 90445-07M29-00
In stock
5+ in stock
$6.29
You save $1.11
In stock
Only 3 remaining
$2.72
You save $0.48
16
Yamaha Motors
Cylinder Head6J8-11111-00-1S
Required: 1
HEAD, CYLINDER 1
$148.28
You save $26.17
17
Yamaha Motors
Cylinder Head Gasket6J8-11181-A2-00
Required: 1
.GASKET, CYLINDER HEAD 1
Supersedes: 6J8-11181-A1-00
In stock
Only 3 remaining
$27.63
You save $4.88
18
Yamaha Motors
Cylinder Head Cover6J8-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
$47.52
You save $8.39
19
Yamaha Motors
Head Cover Gasket6J8-11193-A1-00
Required: 1
.GASKET, HEAD COVER 1
In stock
Only 5 remaining
$12.03
You save $2.12
20
Yamaha Motors
Bolt with Washer90119-08MA8-00
Required: 14
BOLT, WITH WASHER
In stock
5+ in stock
$4.17
You save $0.74
21
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 1
THERMOSTAT
Supersedes: 688-12411-10-00
In stock
5+ in stock
$27.50
You save $4.85
22
Yamaha Motors
Thermostat Cover6H4-12413-00-1S
Required: 1
COVER, THERMOSTAT
In stock
5+ in stock
$12.07
You save $2.13
23
Yamaha Motors
Cover Gasket61A-12414-A0-00
Required: 1
GASKET, COVER
Supersedes: 6J8-12414-A0-00
In stock
Only 5 remaining
$5.14
You save $0.91
24
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
25
Yamaha Motors
Exhaust Outer Cover6J8-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
$40.88
You save $7.22
26
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
.NIPPLE, HOSE
In stock
Only 4 remaining
$13.18
You save $2.33
27
Yamaha Motors
Exhaust Inner Cover6J8-41111-00-1S
Required: 1
INNER COVER, EXHAUST
$37.44
You save $6.61
28
Yamaha Motors
Exhaust Outer Cover Gasket6J8-41114-A0-00
Required: 2
.GASKET, EXHAUST OUTER COVER
In stock
5+ in stock
$6.21
You save $1.10
$8.67
You save $1.53
30
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 11
BOLT, WITH WASHER
In stock
5+ in stock
$3.02
You save $0.53
31
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 1
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
32
Yamaha Motors
Upper Casing Gasket6J8-45113-A0-00
Required: 1
.GASKET, UPPER CASING
In stock
Only 3 remaining
$6.33
You save $1.12
33
Yamaha Motors
Spark Plug NGK BR7HS-10BR7-HS100-00-00
Required: 3
PLUG, SPARK (NGK B7HS-10)
Supersedes: NGK-B7HS1-00-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
