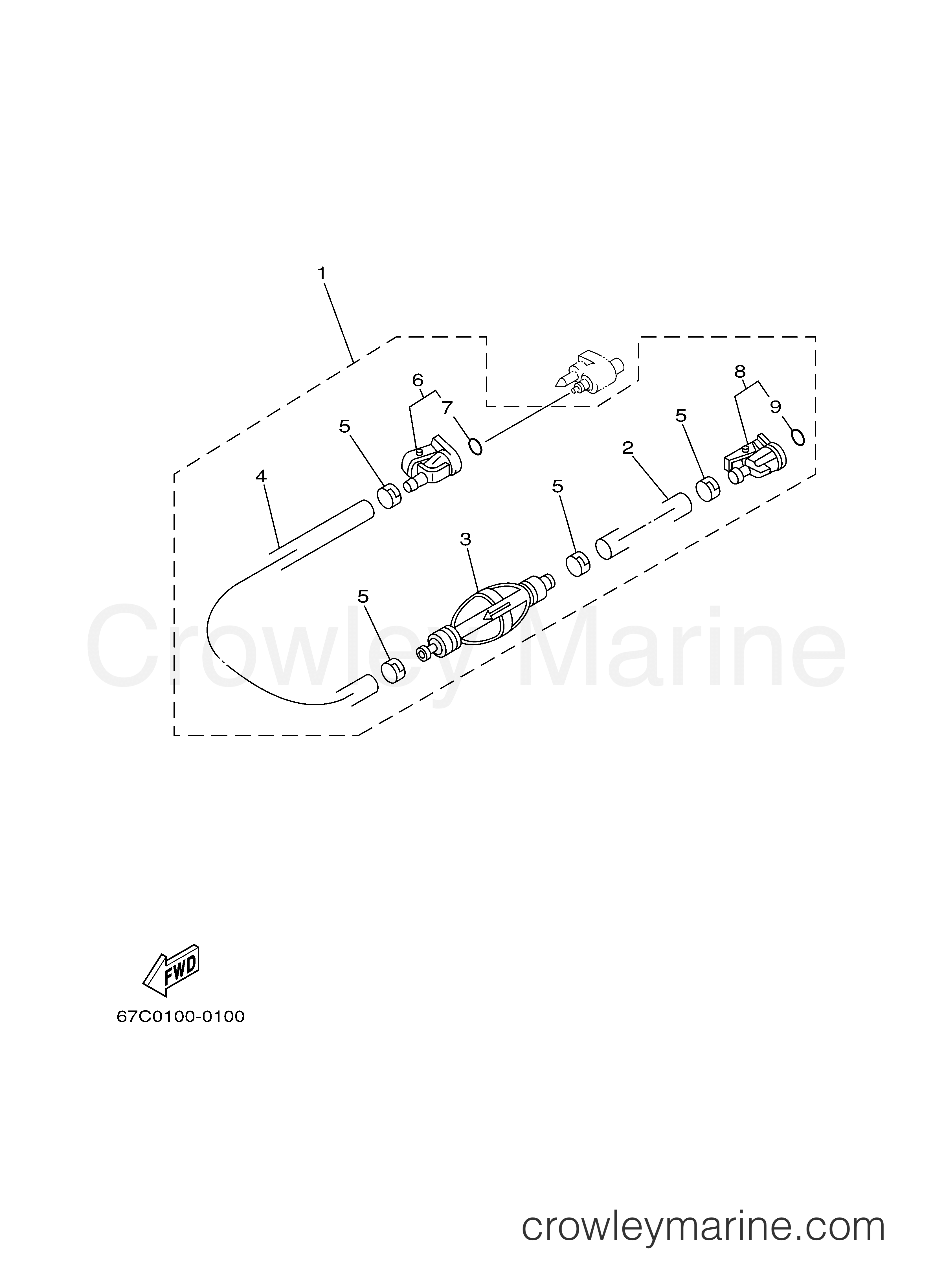

2001 Outboard 90hp - C90TLRZ FUEL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors C90TLRZ - FUEL 2
Change View:
FUEL PIPE COMP. 1
1
Yamaha Motors
FUEL PIPE COMP. 16Y1-24306-53-00
Required: 1
FUEL PIPE COMP. 1
Cross Ship
Leaves in 2-5 days
$100.65
$85.55
You save $15.10
More details
Primer Pump Assembly
3
Yamaha Motors
Primer Pump Assembly6YL-24360-63-00
Required: 1
.PRIMER PUMP ASSY
Supersedes: 6Y1-24360-52-00
Cross Ship
Leaves in 2-5 days
$44.45
$37.78
You save $6.67
More details
Hose (L800)
4
Yamaha Motors
Hose (L800)90445-11M78-00
Required: 1
.HOSE (L850)
Supersedes: 90445-11M05-00
Cross Ship
Leaves in 2-5 days
$8.90
$7.57
You save $1.33
More details
Band
5
Yamaha Motors
Band650-24351-51-00
Required: 4
.BAND 1
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
