All diagrams for this model

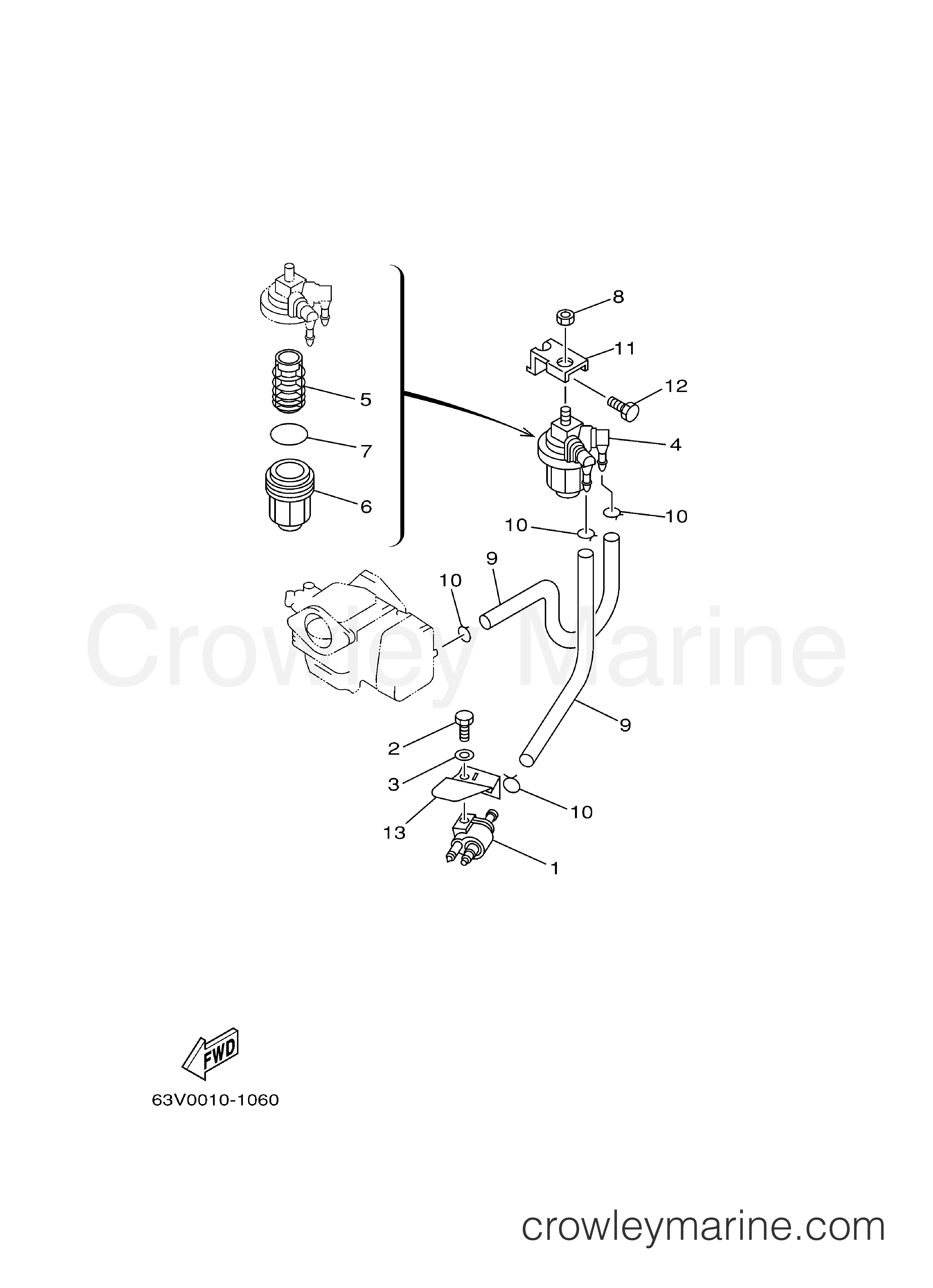

2001 Outboard 9.9hp - 9.9MSHKZ FUEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 9.9MSHKZ - FUEL
Change View:
Hose (L180)
9
Yamaha Motors
Hose (L180)90445-09M00-00
Required: 2
HOSE (L180)
Cross Ship
Leaves in 2-5 days
$6.95
$5.91
You save $1.04
More details
Filter Bracket
11
Yamaha Motors
Filter Bracket682-24566-01-00
Required: 1
BRACKET, FILTER
Cross Ship
Leaves in 2-5 days
$9.95
$8.46
You save $1.49
More details
Bolt
12
Yamaha Motors
Bolt97013-06010-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
Plate
13
Yamaha Motors
Plate63V-24396-01-00
Required: 1
PLATE
Cross Ship
Leaves in 2-5 days
$14.20
$12.07
You save $2.13
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
