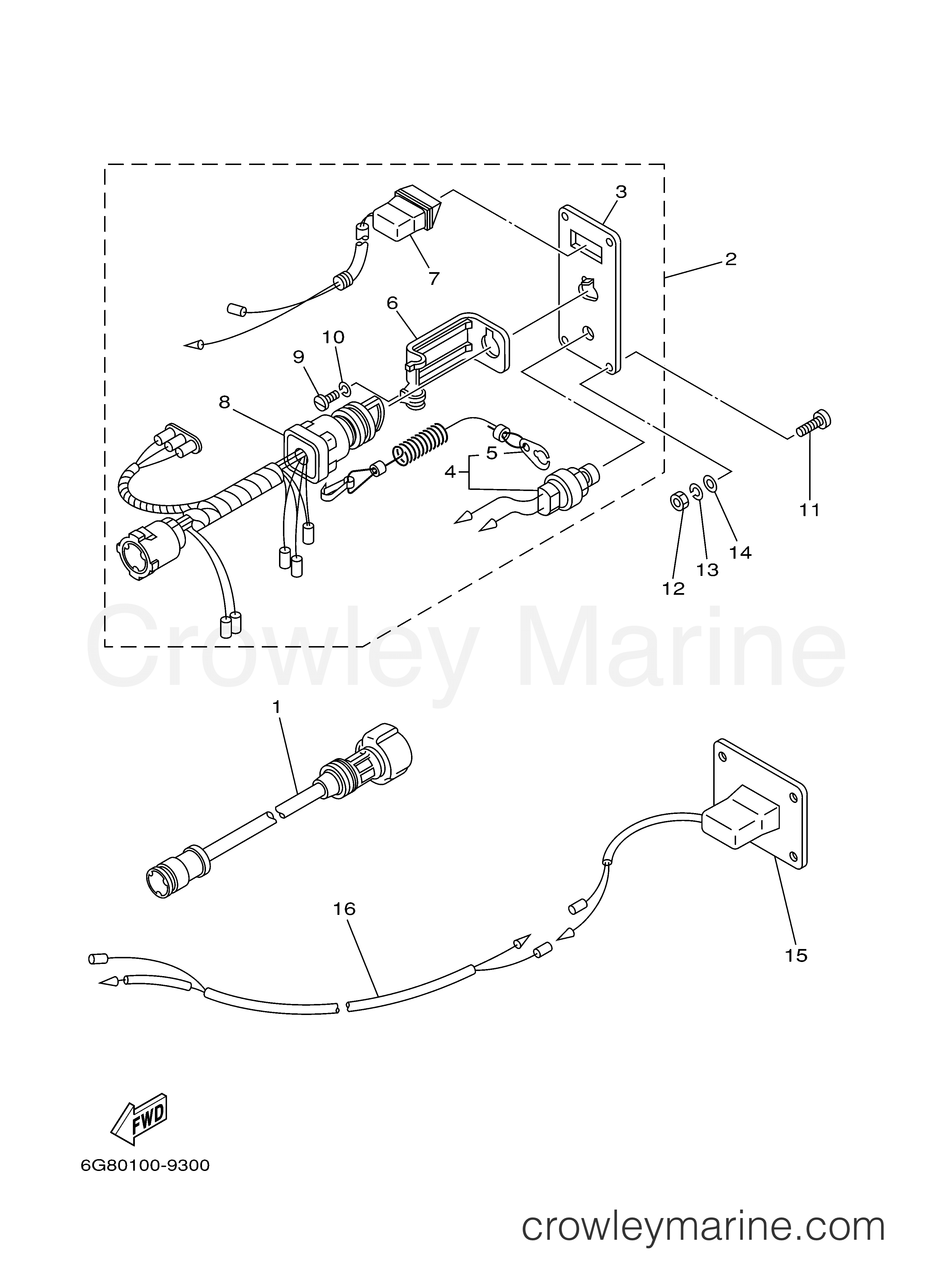

2000 Outboard 9.9hp - T9.9EXRY ELECTRICAL 3 FOR T9.9ER diagram
1
Yamaha Motors
EXTENSION, WIRE HARNESS688-82586-51-00
Required: 1
EXTENSION, WIRE HARNESS (5M)
Supersedes: 688-82586-50-00
$122.87
You save $21.68
2
Yamaha Motors
Panel Switch Assembly6G8-82570-04-00
Required: 1
PANEL SWITCH ASSY
Supersedes: 6G8-82570-02-00
$202.47
You save $35.73
3
Yamaha Motors
Switch Panel6G8-82571-01-00
Required: 1
.PANEL, SWITCH
$9.89
You save $1.75
4
Yamaha Motors
Engine Stop Switch Assembly688-82575-02-00
Required: 1
.ENGINE STOP SWITCH ASSY
Supersedes: 688-82575-01-00
In stock
5+ in stock
$30.04
You save $7.51
5
Yamaha Motors
Stop Switch Lanyard682-82556-00-00
Required: 1
..LANYARD, STOP SWITCH
In stock
5+ in stock
$6.56
You save $1.64
6
Yamaha Motors
Cord Clamp Stay663-82581-01-00
Required: 1
.STAY, CORD CLAMP
$10.12
You save $1.79
7
Yamaha Motors
Pilot Lamp Assembly6G8-83582-01-00
Required: 1
.PILOT LIGHT ASSY
$51.55
You save $9.10
8
Yamaha Motors
Main Switch Assembly TE, TP6G8-82510-02-00
Required: 1
.MAIN SWITCH ASSY
Supersedes: 6G8-82510-00-00
$146.45
You save $25.84
9
Yamaha Motors
Bind Screw98980-04008-00
Required: 1
.SCREW, BIND
Supersedes: 98903-04008-00
$3.02
You save $0.53
$1.43
You save $-0.63
-50%
In stock
Only 1 remaining
$1.60
You save $1.60
In stock
Only 5 remaining
$7.59
You save $1.90
13
Yamaha Motors
Spring Washer92990-05100-00
Required: 4
.WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
14
Yamaha Motors
Plate Washer92990-05600-00
Required: 4
WASHER, PLATE
In stock
Only 3 remaining
$0.64
You save $0.16
15
Yamaha Motors
Pilot Light Assembly6G8-83530-00-00
Required: 1
PILOT LIGHT ASSY
$41.73
You save $7.37
$24.35
You save $4.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
