All diagrams for this model

2000 Outboard 50hp - T50TLRY ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

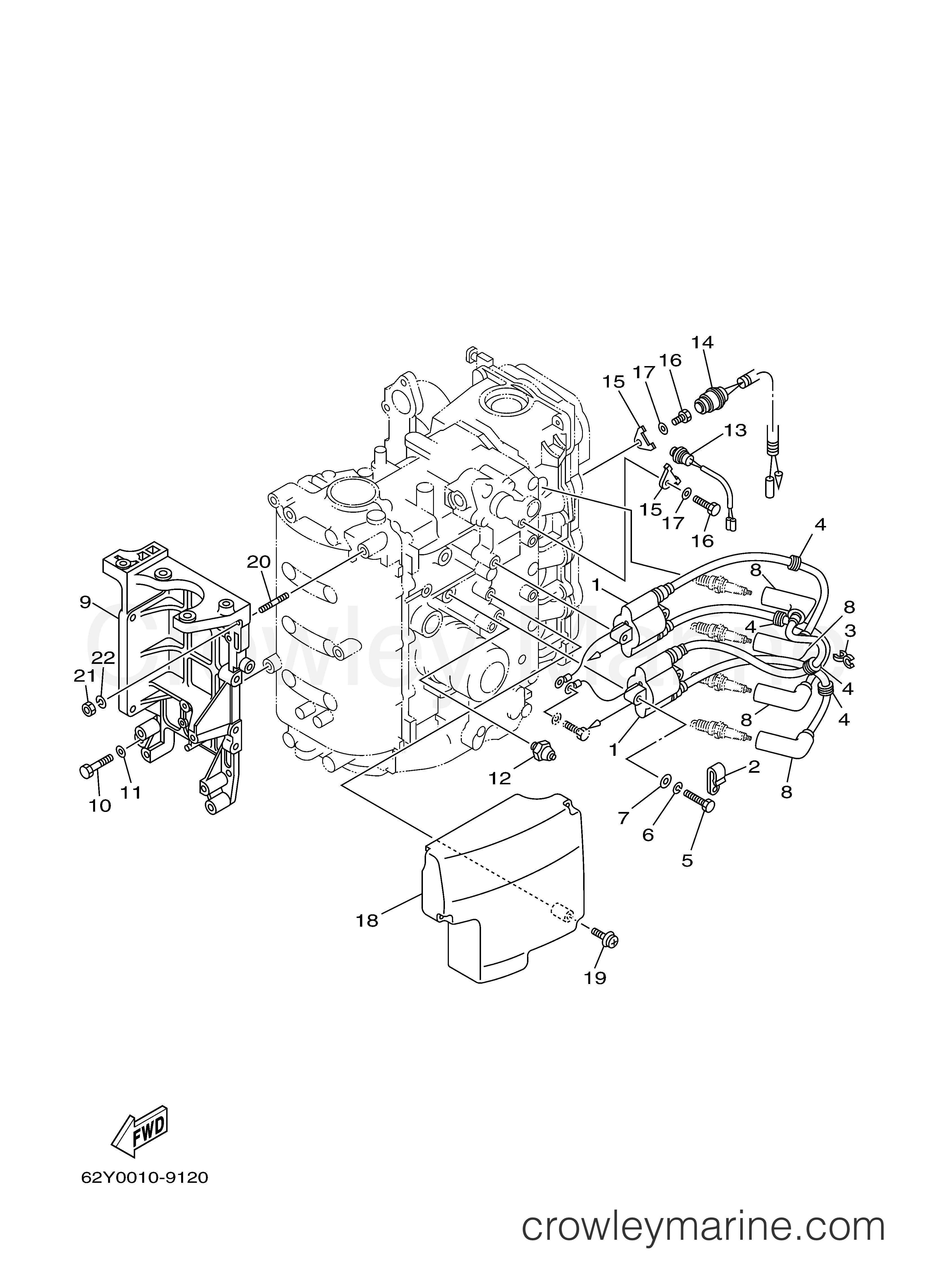

Yamaha Motors T50TLRY - ELECTRICAL 1
Change View:
Clamp
2
Yamaha Motors
Clamp90465-06M90-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Clamp
3
Yamaha Motors
Clamp90464-07M41-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
Starting Motor Bracket
9
Yamaha Motors
Starting Motor Bracket62Y-81822-01-00
Required: 1
BRACKET, STARTING MOTOR
Supersedes: 62Y-81822-01-94
Cross Ship
Leaves in 2-5 days
$186.85
$158.82
You save $28.03
More details
Oil Pressure Switch Assembly
12
Yamaha Motors
Oil Pressure Switch Assembly62Y-82504-10-00
Required: 1
OIL PRESSURE SWITCH ASSY
Supersedes: 62Y-82504-00-00
Cross Ship
Leaves in 2-5 days
$86.75
$73.74
You save $13.01
More details
Thermo Switch Assembly
13
Yamaha Motors
Thermo Switch Assembly62Y-82560-01-00
Required: 1
THERMO SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$71.90
$61.12
You save $10.79
More details
Themo Switch Assembly
14
Yamaha Motors
Themo Switch Assembly62Y-82560-10-00
Required: 1
THERMO SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$100.55
$85.47
You save $15.08
More details
Plate
15
Yamaha Motors
Plate6E9-82588-00-00
Required: 2
PLATE
Cross Ship
Leaves in 2-5 days
$15.80
$13.43
You save $2.37
More details
BOLT
16
Yamaha Motors
BOLT97095-06012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Cover
18
Yamaha Motors
Cover62Y-85599-00-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$15.50
$13.18
You save $2.33
More details
Stud Bolt
20
Yamaha Motors
Stud Bolt90116-08M14-00
Required: 1
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$6.85
$5.82
You save $1.03
More details
Spring Washer
22
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
