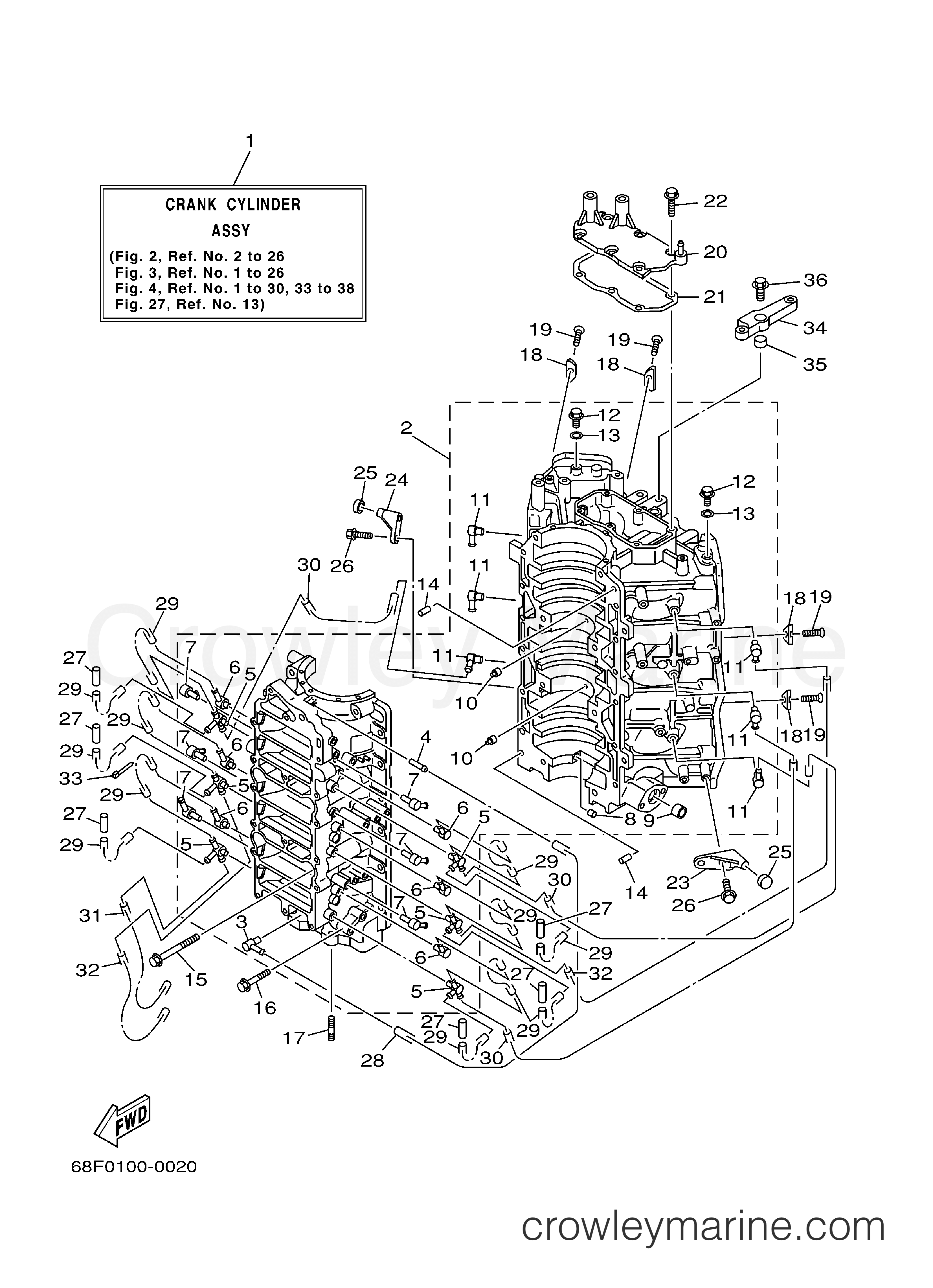

2000 Outboard 150hp - LZ150TXRY CYLINDER CRANKCASE diagram
1
Yamaha Motors
Crank Cylinder Assembly68H-W0090-11-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 68H-W0090-10-1S
$9618.81
You save $1697.44
2
Yamaha Motors
Crankcase Assembly68H-15100-00-00
Required: 1
CRANKCASE ASSY
Supersedes: 68H-15100-00-1S
$4563.27
You save $805.28
3
Yamaha Motors
Hose Nipple6E5-11372-01-00
Required: 1
.NIPPLE, HOSE
Supersedes: 6E5-11372-00-00
$8.67
You save $1.53
$6.88
You save $1.21
5
Yamaha Motors
Hose Nipple68F-11372-01-00
Required: 6
.NIPPLE, HOSE
Supersedes: 68F-11372-00-00
$13.18
You save $2.33
6
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 6
.CHECK VALVE ASSY
Supersedes: 650-11370-00-00
In stock
Only 4 remaining
$13.40
You save $3.35
$13.64
You save $2.41
8
Yamaha Motors
Bimetal Formed Bushing90384-06002-00
Required: 1
.BUSH, BIMETAL FORMED
Supersedes: 90384-06M07-00
$3.10
You save $0.55
9
Yamaha Motors
Bimetal Formed Bushing90384-14011-00
Required: 1
.BUSH, BIMETAL FORMED
Supersedes: 90384-14M09-00
$5.74
You save $1.01
10
Yamaha Motors
Bearing Lock663-11518-01-00
Required: 2
.LOCK, BEARING
$9.27
You save $1.63
11
Yamaha Motors
Check Valve Assembly646-11370-01-00
Required: 6
.CHECK VALVE ASSY
Supersedes: 646-11370-00-00
In stock
5+ in stock
$12.15
You save $2.14
12
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 2
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$11.36
You save $2.84
In stock
Only 2 remaining
$2.40
You save $0.60
-50%
In stock
Only 1 remaining
$3.38
You save $3.38
-50%
In stock
Only 2 remaining
$3.25
You save $3.25
16
Yamaha Motors
Bolt with Washer90119-08M94-00
Required: 12
BOLT, WITH WASHER
$3.95
You save $0.70
17
Yamaha Motors
Stud Bolt90116-08M14-00
Required: 2
BOLT, STUD
Supersedes: 90116-08M45-00
$5.82
You save $1.03
In stock
5+ in stock
$4.40
You save $1.10
19
Yamaha Motors
Flat Head Screw98780-04014-00
Required: 8
SCREW, FLAT HEAD
Supersedes: 98780-04015-00
In stock
Only 4 remaining
$2.84
You save $0.71
$54.32
You save $9.59
$11.81
You save $2.09
22
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 6
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
$14.41
You save $2.54
$9.82
You save $1.73
25
Yamaha Motors
Upper Mount Rubber Damper663-44533-00-00
Required: 2
DAMPER, UPPER MOUNT RUBBER
In stock
Only 2 remaining
$13.56
You save $2.39
26
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 4
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
27
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 6
.HOSE (L34)
Supersedes: 90445-07M03-00
In stock
5+ in stock
$5.92
You save $1.48
28
Yamaha Motors
Hose (L610)90445-07M11-00
Required: 1
HOSE (L510)
Supersedes: 90445-07M10-00
$19.54
You save $3.45
29
Yamaha Motors
Hose (L150)90445-07MA5-00
Required: 12
HOSE (L90)
Supersedes: 90445-07MA6-00
$6.29
You save $1.11
30
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 3
HOSE (L280)
Supersedes: 90445-07MA4-00
In stock
Only 2 remaining
$5.92
You save $1.48
31
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L340)
Supersedes: 90445-07M45-00
In stock
Only 2 remaining
$5.92
You save $1.48
32
Yamaha Motors
Hose90445-07M67-00
Required: 2
HOSE (L310)
Supersedes: 90445-07M27-00
$6.29
You save $1.11
$2.68
You save $0.47
$195.54
You save $34.51
-50%
In stock
Only 1 remaining
$5.55
You save $5.55
36
Yamaha Motors
Hexagon Socket Head Bolt90110-08M04-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$3.95
You save $0.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
