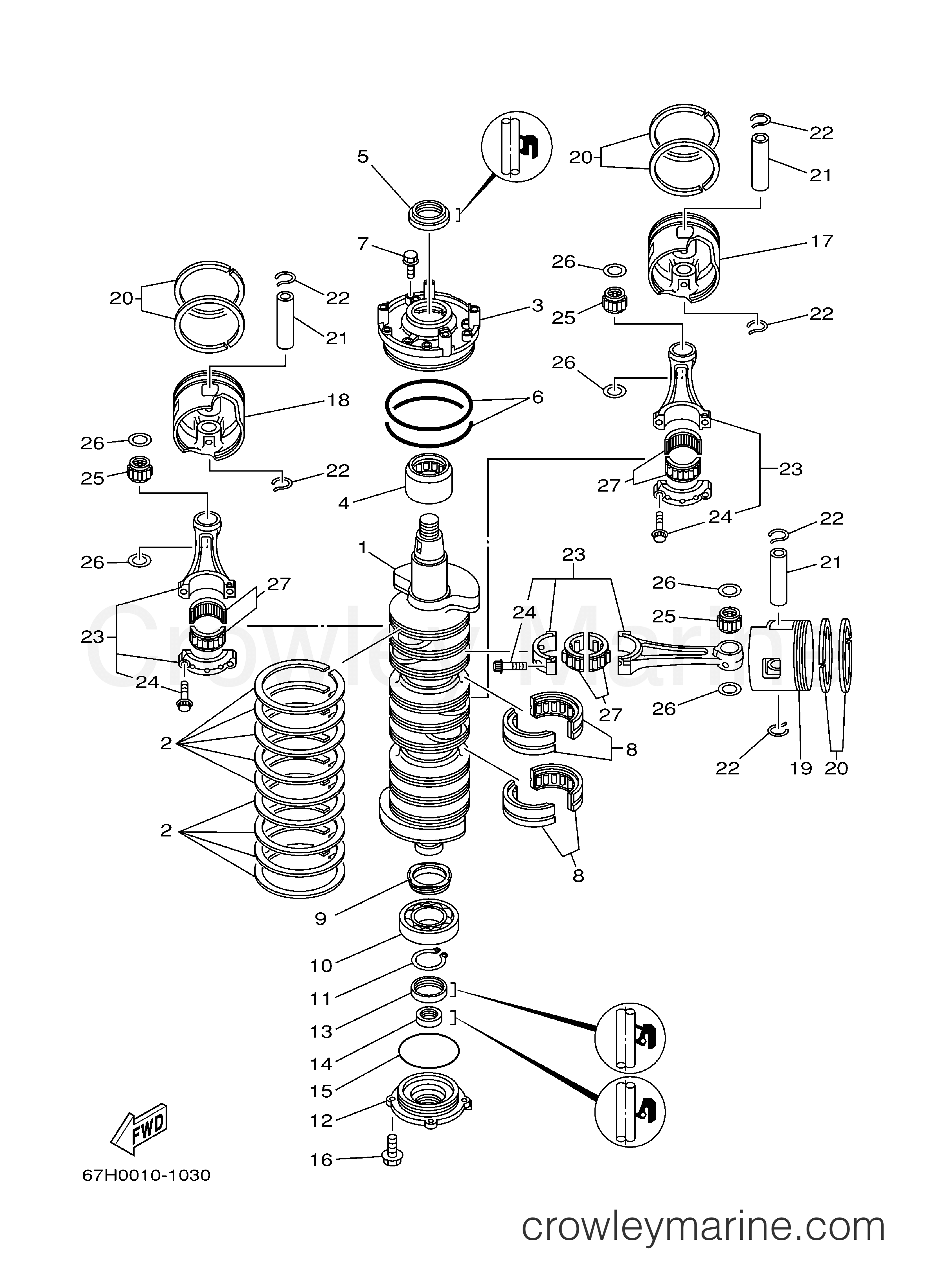

2000 Outboard 150hp - LX150TXRY CRANKSHAFT PISTON diagram
1
Yamaha Motors
Crankshaft67H-11411-01-00
Required: 1
CRANKSHAFT
Supersedes: 67H-11411-00-00
$1660.05
You save $292.95
$16.76
You save $4.19
3
Yamaha Motors
Bearing Housing67H-15163-00-1S
Required: 1
HOUSING, BEARING 1
$254.53
You save $44.92
$151.95
You save $27.04
5
Yamaha Motors
Oil Seal93102-40M38-00
Required: 1
.OIL SEAL
Supersedes: 93102-40M14-00
In stock
Only 1 remaining
$15.44
You save $3.86
6
Yamaha Motors
O-Ring93211-04384-00
Required: 2
.O-RING
Supersedes: 93211-04M36-00
In stock
5+ in stock
$5.40
You save $1.35
7
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 4
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
$197.19
You save $34.80
$132.52
You save $23.38
In stock
Only 1 remaining
$50.14
You save $8.85
11
Yamaha Motors
Circle Clip99009-40400-00
Required: 1
CIRCLIP
Supersedes: 93410-40M03-00
$3.57
You save $0.63
12
Yamaha Motors
Oil Seal Housing6G5-15359-00-94
Required: 1
HOUSING, OIL SEAL
$142.12
You save $25.08
In stock
Only 1 remaining
$10.76
You save $2.69
In stock
Only 1 remaining
$6.48
You save $1.62
In stock
Only 2 remaining
$9.24
You save $2.31
16
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 4
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
17
Yamaha Motors
Piston (0.50MM O/S)64D-11636-02-00
Required: 2
PISTON (0.50MM O/S)
Supersedes: 64D-11636-01-00
$112.24
You save $19.81
17
Yamaha Motors
Piston (Standard)64D-11631-02-90
Required: 2
PISTON (STD)
Supersedes: 64D-11631-01-90
In stock
Only 1 remaining
$105.95
You save $26.10
18
Yamaha Motors
Piston (0.50MM O/S)67H-11636-00-00
Required: 1
PISTON (0.50MM O/S)
$138.38
You save $24.42
$129.67
You save $22.88
19
Yamaha Motors
Piston64D-11646-02-00
Required: 3
PISTON 2 (0.50MM O/S)
Supersedes: 64D-11646-01-00
$112.24
You save $19.81
-50%
19
Yamaha Motors
Piston (Standard)64D-11642-02-90
Required: 3
PISTON 2 (STD)
Supersedes: 64D-11642-01-90
In stock
Only 2 remaining
$66.03
You save $66.03
20
Yamaha Motors
Piston Ring Set (0.50Mm O/S)64D-11605-02-00
Required: 6
PISTON RING SET (0.50MM O/S)
Supersedes: 64D-11605-01-00
In stock
Only 1 remaining
$52.57
You save $9.28
20
Yamaha Motors
Piston Ring Set (Standard)64D-11603-02-00
Required: 6
PISTON RING SET (STD)
Supersedes: 64D-11603-01-00
In stock
Only 1 remaining
$57.92
You save $14.48
In stock
Only 2 remaining
$11.69
You save $2.06
22
Yamaha Motors
Piston Pin Clip6R5-11634-10-00
Required: 12
CLIP, PISTON PIN
In stock
5+ in stock
$4.92
You save $1.23
23
Yamaha Motors
Connecting Rod Assembly6R5-11650-10-00
Required: 6
CONNECTING ROD ASSY
$230.95
You save $40.35
24
Yamaha Motors
Bolt90109-08022-00
Required: 2
.BOLT
Supersedes: 90109-08M71-00
$6.24
You save $1.56
25
Yamaha Motors
Bearing93310-32337-00
Required: 6
BEARING
Supersedes: 93310-323V6-00
$40.79
You save $7.20
In stock
Only 3 remaining
$4.80
You save $0.85
-50%
In stock
Only 2 remaining
$65.50
You save $65.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
