1999 Outboard 200hp - P200TLRX FUEL diagram

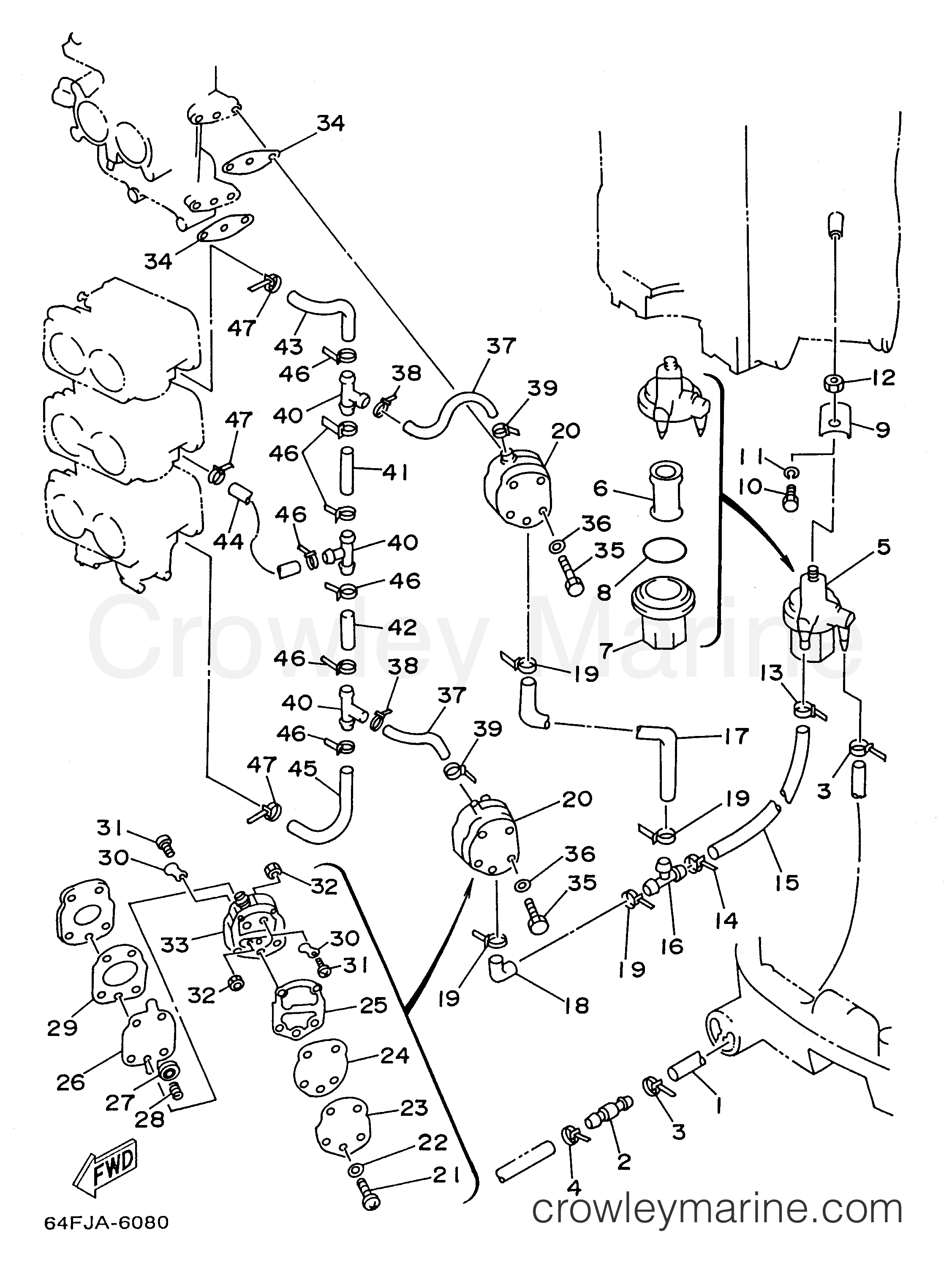

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors P200TLRX - FUEL
Change View:
Filter Bracket
9
Yamaha Motors
Filter Bracket 648-24566-01-00
Required: 1
BRACKET, FILTER
Cross Ship
Leaves in 2-5 days
$16.60
$14.11
You save $2.49
More details
.WASHER, SPRING
11
Yamaha Motors
.WASHER, SPRING92990-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92903-06100-00
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details
Pipe
17
Yamaha Motors
Pipe6K7-24315-00-00
Required: 1
PIPE 5
Cross Ship
Leaves in 2-5 days
$14.30
$12.15
You save $2.14
More details
Pan Head Screw
21
Yamaha Motors
Pan Head Screw98580-05035-00
Required: 3
.SCREW, PAN HEAD
Supersedes: 98503-05035-00
Cross Ship
Leaves in 2-5 days
$8.85
$7.52
You save $1.33
More details
Body
23
Yamaha Motors
Body6E5-24413-00-00
Required: 1
.BODY 2
Cross Ship
Leaves in 2-5 days
$36.95
$31.41
You save $5.54
More details
Diaphragm
24
Yamaha Motors
Diaphragm6E5-24471-00-00
Required: 1
.DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$32.70
$27.80
You save $4.91
More details
Body Gasket
25
Yamaha Motors
Body Gasket6E5-24435-00-00
Required: 1
.GASKET, BODY 2
Cross Ship
Leaves in 2-5 days
$10.85
$9.22
You save $1.63
More details
Diaphragm
26
Yamaha Motors
Diaphragm6E5-24411-00-00
Required: 1
.DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$39.10
$33.23
You save $5.87
More details
Spring Seat
27
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
Diaphragm Spring
28
Yamaha Motors
Diaphragm Spring6E5-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$10.35
$8.80
You save $1.55
More details
Body Gasket
29
Yamaha Motors
Body Gasket6E5-24434-02-00
Required: 1
.GASKET, BODY
Cross Ship
Leaves in 2-5 days
$6.95
$5.91
You save $1.04
More details
Body
33
Yamaha Motors
Body6E5-24412-02-00
Required: 1
.BODY 1
Cross Ship
Leaves in 2-5 days
$98.90
$84.06
You save $14.84
More details
BOLT
35
Yamaha Motors
BOLT97095-06050-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
Pipe
43
Yamaha Motors
Pipe6K7-24317-00-00
Required: 1
PIPE 7
Cross Ship
Leaves in 2-5 days
$11.40
$9.69
You save $1.71
More details
Overflow Pipe
44
Yamaha Motors
Overflow Pipe6K7-24318-00-00
Required: 1
PIPE, OVERFLOW
Cross Ship
Leaves in 2-5 days
$6.15
$5.23
You save $0.92
More details
Oil Pipe
45
Yamaha Motors
Oil Pipe6K7-24319-00-00
Required: 1
PIPE, OIL
Cross Ship
Leaves in 2-5 days
$11.40
$9.69
You save $1.71
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
