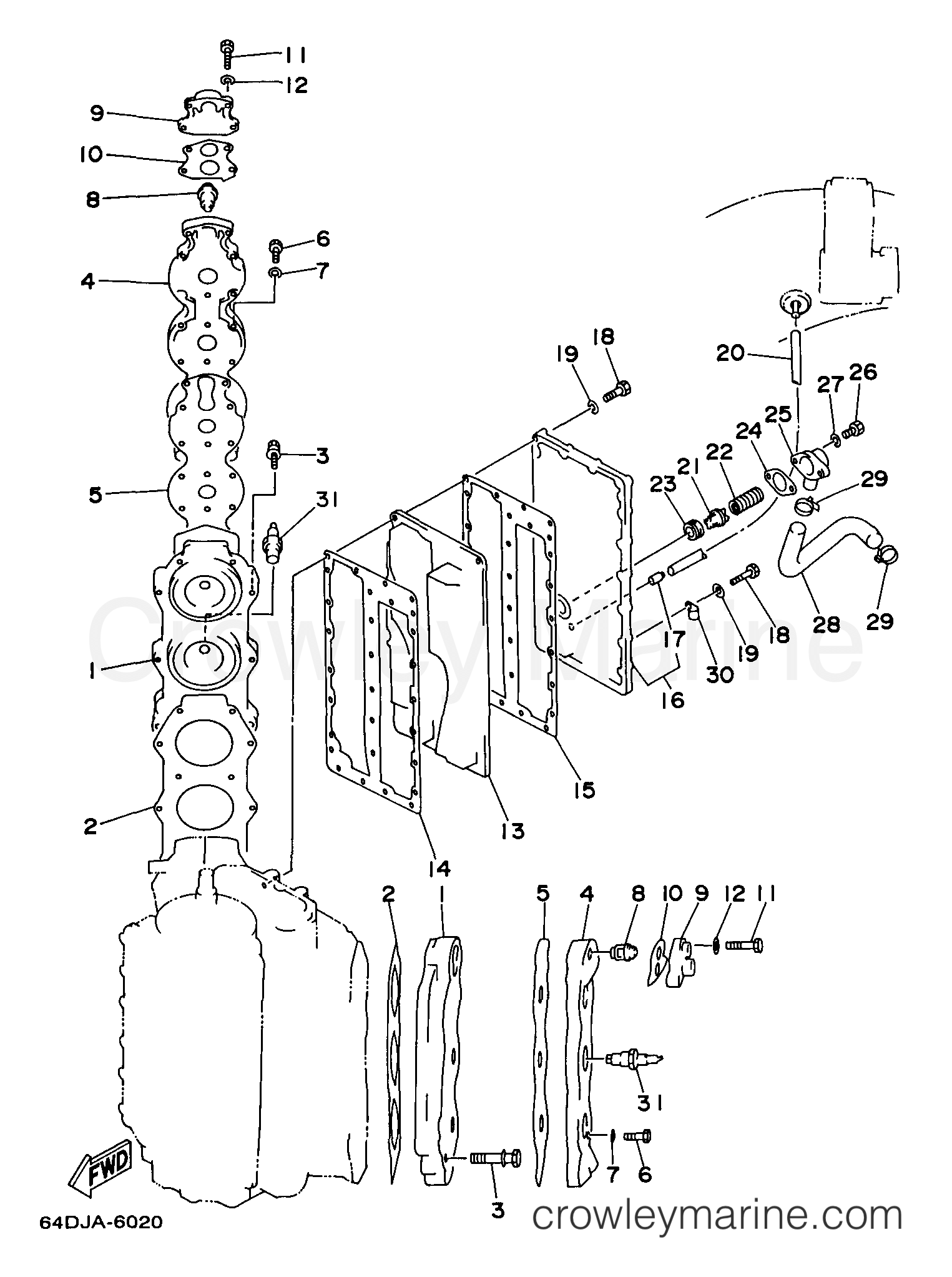

1999 Outboard 150hp - D150TLRX CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head64E-11111-00-1S
Required: 2
HEAD, CYLINDER 1
Supersedes: 64E-11111-00-94
In stock
Only 4 remaining
$277.31
You save $48.94
2
Yamaha Motors
Cylinder Head Gasket6G5-11181-A3-00
Required: 2
GASKET, CYLINDER HEAD 1
Supersedes: 6G5-11181-A1-00
In stock
5+ in stock
$52.45
You save $9.26
3
Yamaha Motors
Bolt with Washer90119-08M07-00
Required: 28
BOLT, WITH WASHER
Supersedes: 90119-08M21-00
In stock
5+ in stock
$4.67
You save $0.82
4
Yamaha Motors
Cylinder Head Cover6G5-11191-00-1S
Required: 2
COVER, CYLINDER HEAD 1
Supersedes: 6G5-11191-00-9M
In stock
Only 2 remaining
$79.01
You save $13.94
5
Yamaha Motors
Head Cover Gasket6G5-11193-A2-00
Required: 2
.GASKET, HEAD COVER 1
Supersedes: 6G5-11193-A0-00
In stock
5+ in stock
$26.27
You save $4.64
6
Yamaha Motors
Bolt97080-06030-00
Required: 36
BOLT
Supersedes: 97013-06030-00
In stock
5+ in stock
$3.49
You save $0.62
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 36
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
8
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 2
THERMOSTAT
Supersedes: 6E5-12411-20-00
In stock
5+ in stock
$27.50
You save $4.85
9
Yamaha Motors
Thermostat Cover688-12413-00-1S
Required: 2
COVER, THERMOSTAT
Supersedes: 688-12413-00-9M
In stock
Only 3 remaining
$12.88
You save $2.27
10
Yamaha Motors
Cover Gasket688-12414-A1-00
Required: 2
.GASKET, COVER
In stock
5+ in stock
$4.97
You save $0.88
In stock
5+ in stock
$1.87
You save $0.33
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 8
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
13
Yamaha Motors
Exhaust Inner Cover64D-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 64D-41111-00-9M
$147.43
You save $26.02
14
Yamaha Motors
Exhaust Inner Cover Gasket6G5-41112-A1-00
Required: 1
GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$24.86
You save $4.39
15
Yamaha Motors
.GASKET, EXHAUST OUTER COVER6G5-41114-A0-00
Required: 1
.GASKET, EXHAUST OUTER COVER
In stock
Only 4 remaining
$24.86
You save $4.39
16
Yamaha Motors
Exhaust Outer Cover6R3-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6R3-41113-00-9M
$146.97
You save $25.94
17
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.93
You save $0.87
In stock
5+ in stock
$2.25
You save $0.40
19
Yamaha Motors
Plate Washer92990-06600-00
Required: 29
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
20
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L250)
Supersedes: 90445-09097-00
In stock
5+ in stock
$10.62
You save $1.87
21
Yamaha Motors
PRESSURE CONTROL VALVE6G5-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
Only 5 remaining
$11.69
You save $2.06
22
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.46
You save $1.14
In stock
5+ in stock
$3.74
You save $0.66
In stock
5+ in stock
$4.80
You save $0.85
25
Yamaha Motors
Bypass Cover6G5-11372-00-1S
Required: 1
NIPPLE, HOSE (6G5-11372-00-9M)
Supersedes: 6G5-11372-00-5B
In stock
5+ in stock
$16.06
You save $2.84
In stock
Only 1 remaining
$1.32
You save $0.23
27
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$15.04
You save $2.66
In stock
Only 5 remaining
$1.57
You save $0.28
30
Yamaha Motors
Clamp90465-08028-00
Required: 2
CLAMP
Supersedes: 90465-08M07-00
$6.37
You save $1.12
31
Yamaha Motors
Spark Plug NGK BR8HS-10BR8-HS100-00-00
Required: 6
PLUG, SPARK (NGK BR8HS-10)
Supersedes: NGK-BR8HS-10-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
