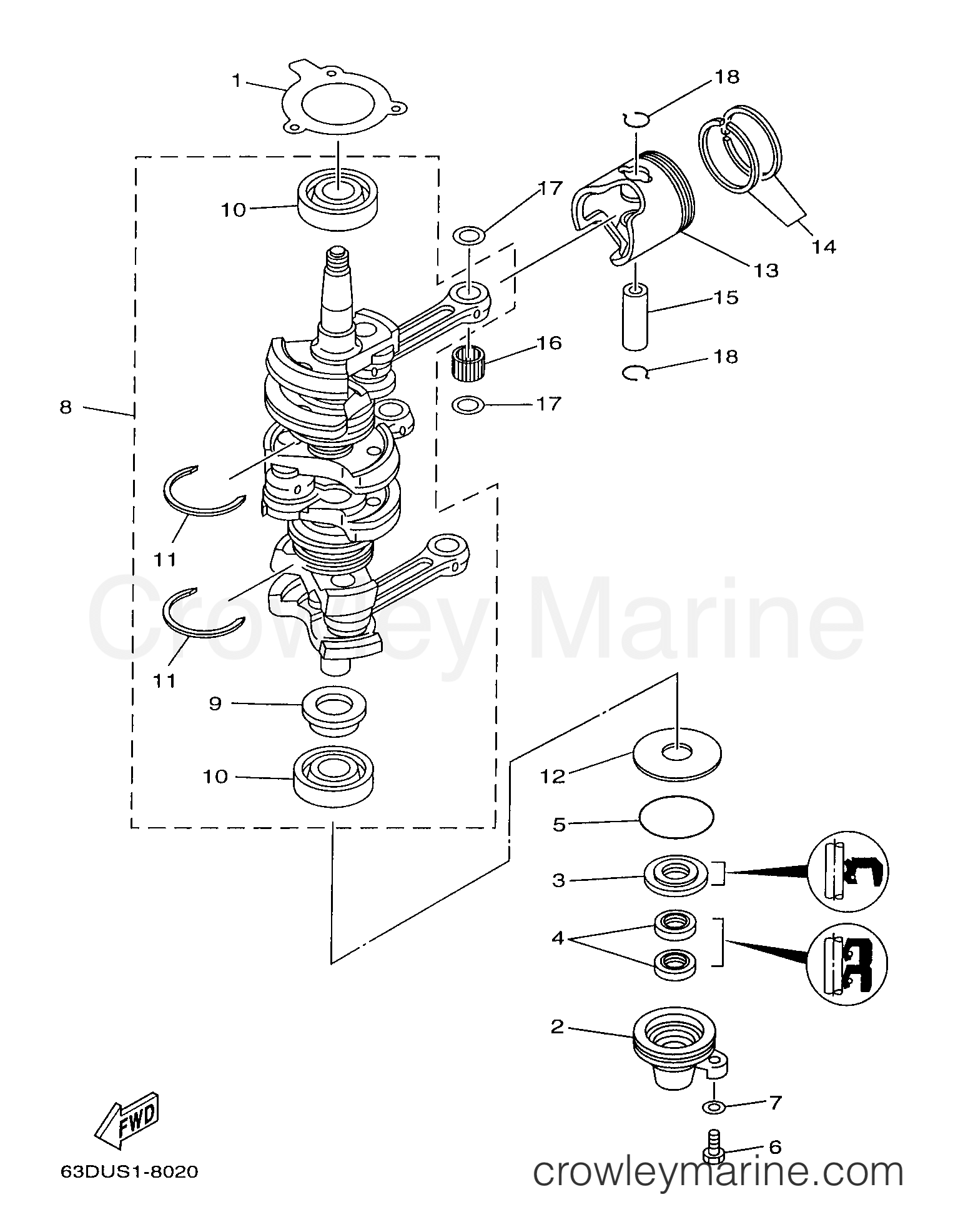

1999 Outboard 40hp - C40TLRX CRANKSHAFT PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors C40TLRX - CRANKSHAFT PISTON
Change View:
Oil Seal Housing
2
Yamaha Motors
Oil Seal Housing6H4-15396-03-CA
Required: 1
HOUSING, OIL SEAL
Supersedes: 6H4-15396-03-5B
Cross Ship
Leaves in 2-5 days
$34.60
$29.41
You save $5.19
More details
Crankshaft Assembly
8
Yamaha Motors
Crankshaft Assembly6H4-11400-04-00
Required: 1
CRANKSHAFT ASSY
Cross Ship
Leaves in 2-5 days
$1416.05
$1203.64
You save $212.41
More details
Spacer
9
Yamaha Motors
Spacer6H4-11445-00-00
Required: 1
.SPACER
Cross Ship
Leaves in 2-5 days
$29.35
$24.95
You save $4.40
More details
Bearing
10
Yamaha Motors
Bearing93306-305U8-00
Required: 2
.BEARING
Cross Ship
Leaves in 2-5 days
$55.99
$44.79
You save $11.20
More details
Plate Washer
12
Yamaha Motors
Plate Washer90201-50306-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.60
$5.61
You save $0.99
More details
Piston (0.25MM O/S)
13
Yamaha Motors
Piston (0.25MM O/S)6H4-11635-01-00
Required: 3
PISTON (0.25MM O/S)
Cross Ship
Leaves in 2-5 days
$122.35
$103.95
You save $18.40
More details
Piston (Standard)
13
Yamaha Motors
Piston (Standard)6H4-11631-01-95
Required: 3
PISTON (STD)
Cross Ship
Leaves in 2-5 days
$122.35
$103.95
You save $18.40
More details
Piston (0.50MM O/S)
13
Yamaha Motors
Piston (0.50MM O/S)6H4-11636-01-00
Required: 3
PISTON (0.50MM O/S)
Cross Ship
Leaves in 2-5 days
$122.35
$104.00
You save $18.35
More details
Piston Ring Set (0.50Mm O/S)
14
Yamaha Motors
Piston Ring Set (0.50Mm O/S)63D-11605-00-00
Required: 3
PISTON RING SET (0.50MM O/S)
Cross Ship
Leaves in 2-5 days
$65.60
$55.76
You save $9.84
More details
Piston Ring Set
14
Yamaha Motors
Piston Ring Set63D-11604-00-00
Required: 3
PISTON RING SET (0.25MM O/S)
Cross Ship
Leaves in 2-5 days
$61.40
$52.19
You save $9.21
More details
Piston Ring Set (Standard)
14
Yamaha Motors
Piston Ring Set (Standard)63D-11603-00-00
Required: 3
PISTON RING SET (STD)
Cross Ship
Leaves in 2-5 days
$61.40
$52.19
You save $9.21
More details
Piston Pin
15
Yamaha Motors
Piston Pin648-11633-00-00
Required: 3
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$13.90
$11.82
You save $2.08
More details
Piston Pin Clip
18
Yamaha Motors
Piston Pin Clip6H4-11634-01-00
Required: 6
CLIP, PISTON PIN
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
