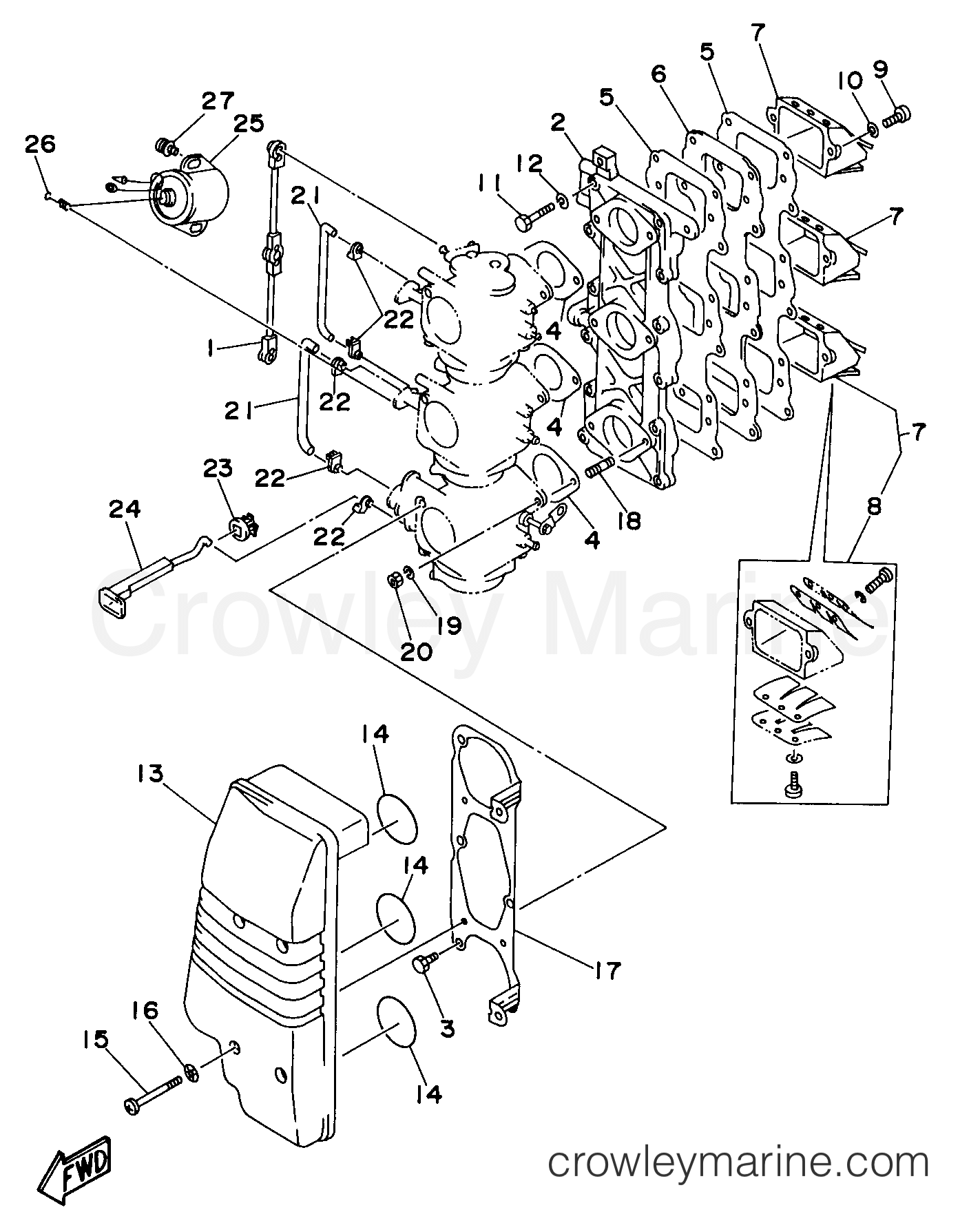

1998 Outboard 75hp - C75TLRW INTAKE diagram
1
Yamaha Motors
Accelerator Lever Rod688-41217-01-00
Required: 1
ROD, ACCEL. LEVER
In stock
5+ in stock
$15.12
You save $3.78
2
Yamaha Motors
Manifold688-13641-01-00
Required: 1
MANIFOLD 1
Supersedes: 688-13641-00-94
$67.32
You save $11.88
$2.54
You save $0.45
4
Yamaha Motors
Gasket688-14198-A2-00
Required: 3
GASKET
Supersedes: 688-14198-A1-00
$5.28
You save $1.32
5
Yamaha Motors
Valve Seat Gasket688-13621-A1-00
Required: 2
.GASKET, VALVE SEAT
In stock
5+ in stock
$5.28
You save $1.32
6
Yamaha Motors
Reed Valve Plate688-13624-00-00
Required: 1
PLATE,REED VALVE
$14.16
You save $3.54
7
Yamaha Motors
Reed Valve Assembly688-13610-00-00
Required: 3
REED VALVE ASSY
$83.55
You save $14.75
In stock
Only 4 remaining
$50.52
You save $12.63
9
Yamaha Motors
Pan Head Screw97885-05020-00
Required: 6
.SCREW, PAN HEAD
Supersedes: 97880-05020-00
$3.32
You save $0.83
10
Yamaha Motors
Spring Washer92990-05100-00
Required: 6
.WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
11
Yamaha Motors
Bolt97080-06030-00
Required: 12
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.28
You save $0.82
12
Yamaha Motors
Spring Washer92995-06100-00
Required: 12
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
13
Yamaha Motors
Intake Silencer Assembly6H1-14440-02-00
Required: 1
SILENCER ASSY, INTAKE
In stock
Only 1 remaining
$57.50
You save $10.15
In stock
5+ in stock
$6.79
You save $1.70
15
Yamaha Motors
Pan Head Screw97885-06050-00
Required: 4
SCREW, PAN HEAD
In stock
Only 4 remaining
$4.04
You save $0.71
In stock
Only 4 remaining
$3.16
You save $0.79
$57.46
You save $10.14
In stock
Only 1 remaining
$4.76
You save $1.19
19
Yamaha Motors
Spring Washer92995-06100-00
Required: 6
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
In stock
5+ in stock
$3.84
You save $0.96
$5.74
You save $1.01
22
Yamaha Motors
Choke Lever Joint661-41262-02-00
Required: 5
JOINT, CHOKE LEVER
In stock
5+ in stock
$10.68
You save $2.67
In stock
Only 4 remaining
$8.72
You save $2.18
24
Yamaha Motors
Choke Rod 1692-41256-01-00
Required: 1
ROD, CHOKE 1
Supersedes: 692-41256-00-00
$20.52
You save $5.13
25
Yamaha Motors
Solenoid Coil Assembly688-86110-01-00
Required: 1
SOLENOID COIL ASSEMBLY
$98.26
You save $17.34
In stock
5+ in stock
$5.48
You save $1.37
27
Yamaha Motors
Screw With Washer90159-06M19-00
Required: 2
SCREW, WITH WASHER
$2.55
You save $0.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
