All diagrams for this model

1998 Outboard 50hp - C50TLRW ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

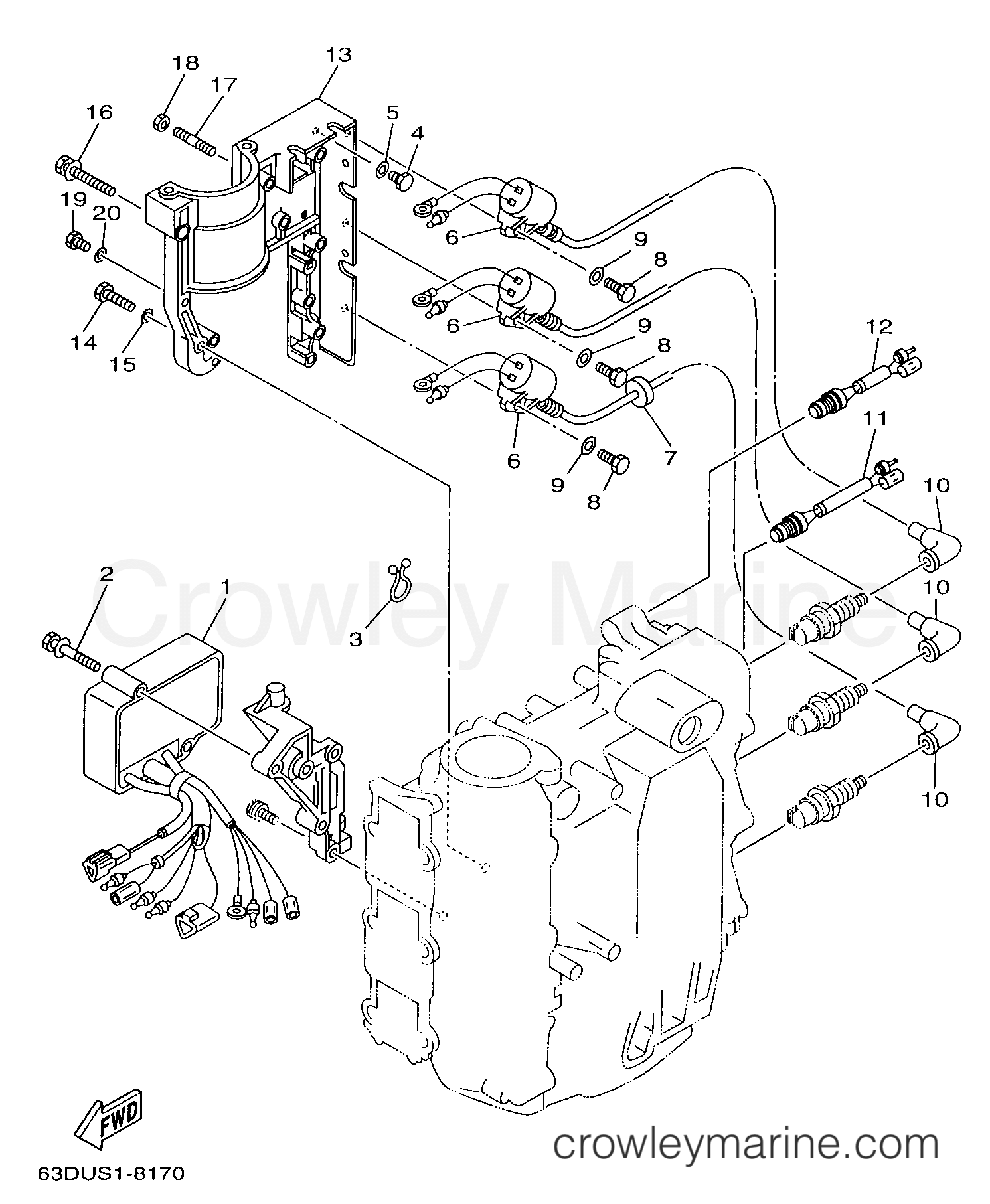

Yamaha Motors C50TLRW - ELECTRICAL 1
Change View:
C.D.I. UNIT ASSY
1
Yamaha Motors
C.D.I. UNIT ASSY63D-85540-02-00
Required: 1
C.D.I. UNIT ASSEMBLY
Supersedes: 63D-85540-00-00
Cross Ship
Leaves in 2-5 days
$690.85
$587.22
You save $103.63
More details
Bolt with Washer
2
Yamaha Motors
Bolt with Washer90119-06M51-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Thermo Switch Assembly
11
Yamaha Motors
Thermo Switch Assembly689-82560-00-00
Required: 1
THERMO SWITCH ASSEMBLY
Cross Ship
Leaves in 2-5 days
$100.50
$79.95
You save $20.55
More details
Thermo Switch Assembly
12
Yamaha Motors
Thermo Switch Assembly6H4-82560-00-00
Required: 1
THERMO SWITCH ASSY
Cross Ship
Leaves in 2-5 days
$115.60
$91.95
You save $23.65
More details
Starting Motor Bracket
13
Yamaha Motors
Starting Motor Bracket6H4-81822-02-98
Required: 1
BRACKET, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$137.35
$116.95
You save $20.40
More details
Bolt with Washer
16
Yamaha Motors
Bolt with Washer97513-08250-00
Required: 1
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$6.65
$5.65
You save $1.00
More details
Stud Bolt
17
Yamaha Motors
Stud Bolt95670-06640-00
Required: 1
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
