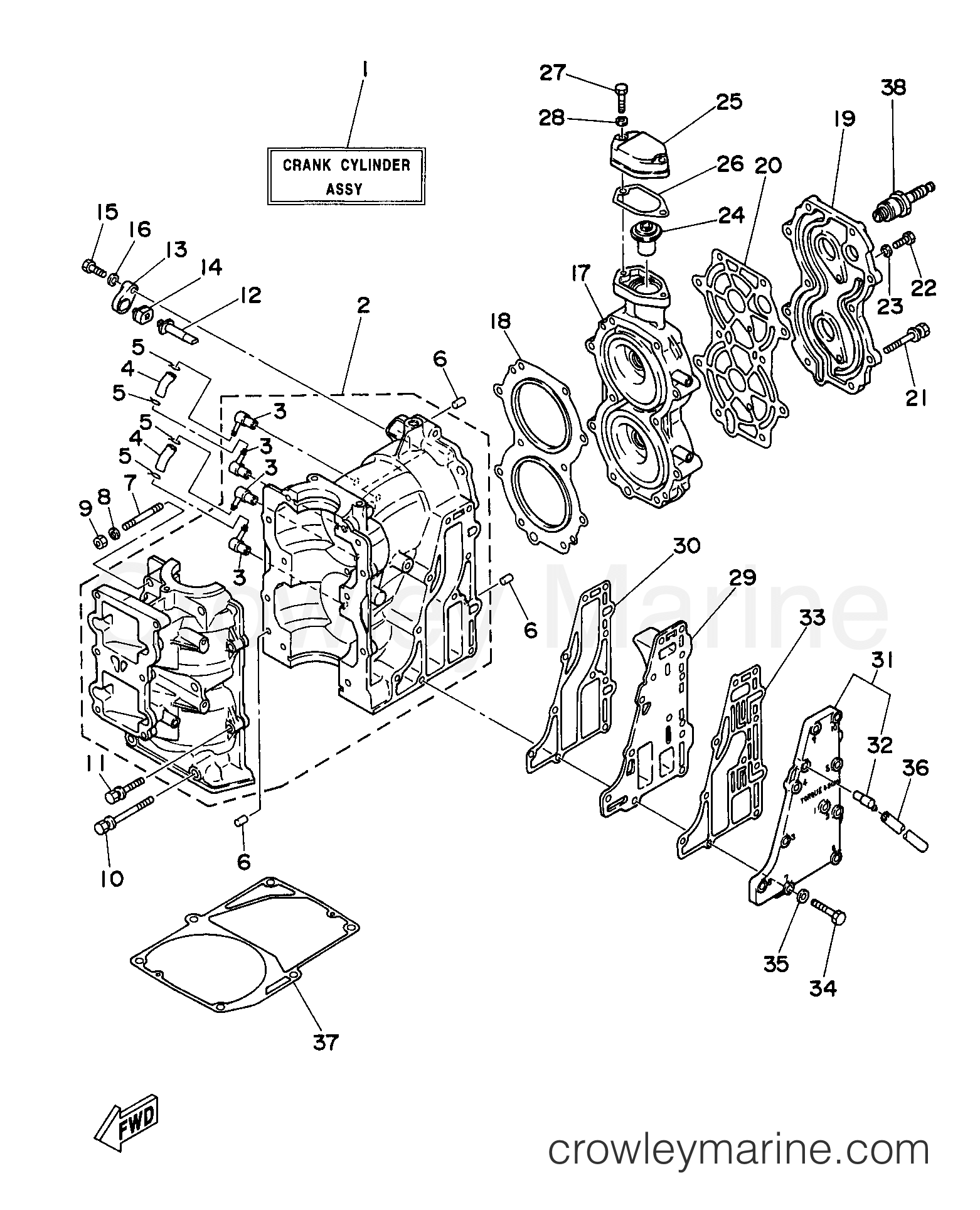

1998 Outboard 25hp - 25ELRW CYLINDER CRANKCASE diagram
1
Yamaha Motors
6L2-W0090-12-1S6L2-W0090-11-1S
Required: 1
CRANK CYLINDER ASSEMBLY
Supersedes: 6L2-W0090-11-4D
$1575.65
You save $278.06
2
Yamaha Motors
Crankcase Assembly6L2-15100-00-00
Required: 1
CRANKCASE ASSY
Supersedes: 6L2-15100-00-94
$575.07
You save $101.48
3
Yamaha Motors
Hose Nipple6E5-11372-01-00
Required: 4
.NIPPLE, HOSE
Supersedes: 6E5-11372-00-00
$8.67
You save $1.53
4
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 2
HOSE (L40)
Supersedes: 90445-07M15-00
In stock
Only 2 remaining
$5.92
You save $1.48
In stock
Only 3 remaining
$2.56
You save $0.64
In stock
Only 1 remaining
$4.16
You save $1.04
$4.17
You save $0.74
8
Yamaha Motors
Plain Washer 90201-08086-00
Required: 2
WASHER, PLATE
$2.21
You save $0.39
In stock
Only 1 remaining
$3.04
You save $0.76
10
Yamaha Motors
Bolt with Washer90119-08M07-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-08M21-00
In stock
5+ in stock
$4.39
You save $1.10
11
Yamaha Motors
Bolt w/ Washer90119-06M14-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
In stock
5+ in stock
$3.56
You save $0.89
$26.00
You save $6.50
14
Yamaha Motors
ANODE GROMMET6H3-11328-01-00
Required: 1
GROMMET, ANODE
Supersedes: 6H3-11328-00-00
In stock
5+ in stock
$5.40
You save $1.35
$2.21
You save $0.55
16
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
17
Yamaha Motors
Cylinder Head6L2-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 6L2-11111-01-94
$136.04
You save $24.01
18
Yamaha Motors
Cylinder Head Gasket6L2-11181-A3-00
Required: 1
.GASKET, CYLINDER HEAD 1
Supersedes: 6L2-11181-A2-00
In stock
5+ in stock
$31.08
You save $7.77
19
Yamaha Motors
Cylinder Head Cover6L2-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 6L2-11191-00-9M
$29.84
You save $5.27
20
Yamaha Motors
Head Cover Gasket6L2-11193-A1-00
Required: 1
.GASKET, HEAD COVER 1
In stock
5+ in stock
$10.16
You save $2.54
21
Yamaha Motors
Bolt w/ Washer90119-08M66-00
Required: 10
BOLT, WITH WASHER
Supersedes: 90119-08M20-00
In stock
Only 3 remaining
$2.92
You save $0.73
$2.21
You save $0.55
23
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
24
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 1
THERMOSTAT
Supersedes: 6E5-12411-20-00
In stock
5+ in stock
$25.88
You save $6.47
25
Yamaha Motors
Thermostat Cover6H4-12413-00-1S
Required: 1
COVER, THERMOSTAT
Supersedes: 6H4-12413-00-9M
In stock
5+ in stock
$11.36
You save $2.84
26
Yamaha Motors
Cover Gasket61A-12414-A0-00
Required: 1
.GASKET, COVER
In stock
Only 4 remaining
$4.84
You save $1.21
$2.85
You save $0.50
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
29
Yamaha Motors
Exhaust Inner Cover6L2-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 6L2-41111-00-9M
$30.48
You save $7.62
30
Yamaha Motors
Exhaust Inner Cover Gasket6L2-41112-A3-00
Required: 1
.GASKET, EXHAUST INNER COVER
Supersedes: 6L2-41112-A1-00
$15.44
You save $3.86
31
Yamaha Motors
Exhaust Outer Cover6L2-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6L2-41113-00-9M
$36.76
You save $9.19
32
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
.NIPPLE, HOSE
In stock
Only 4 remaining
$12.40
You save $3.10
33
Yamaha Motors
Exhaust Outer Cover Gasket6L2-41114-A1-00
Required: 1
.GASKET, EXHAUST OUTER COVER
In stock
Only 1 remaining
$5.56
You save $1.39
34
Yamaha Motors
Bolt97080-06030-00
Required: 10
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.28
You save $0.82
In stock
5+ in stock
$2.28
You save $0.57
36
Yamaha Motors
Hose (L400)90445-10M43-00
Required: 1
HOSE (L330)
Supersedes: 90445-10M40-00
In stock
5+ in stock
$5.36
You save $1.34
37
Yamaha Motors
Upper Casing Gasket6L2-45113-A2-00
Required: 1
.GASKET, UPPER CASING
Supersedes: 6L2-45113-A1-00
$15.80
You save $3.95
38
Yamaha Motors
Spark Plug NGK BR7HS-10BR7-HS100-00-00
Required: 2
PLUG, SPARK (NGK B7HS-10)
Supersedes: NGK-B7HS1-00-00
In stock
5+ in stock
$3.76
You save $0.94
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
