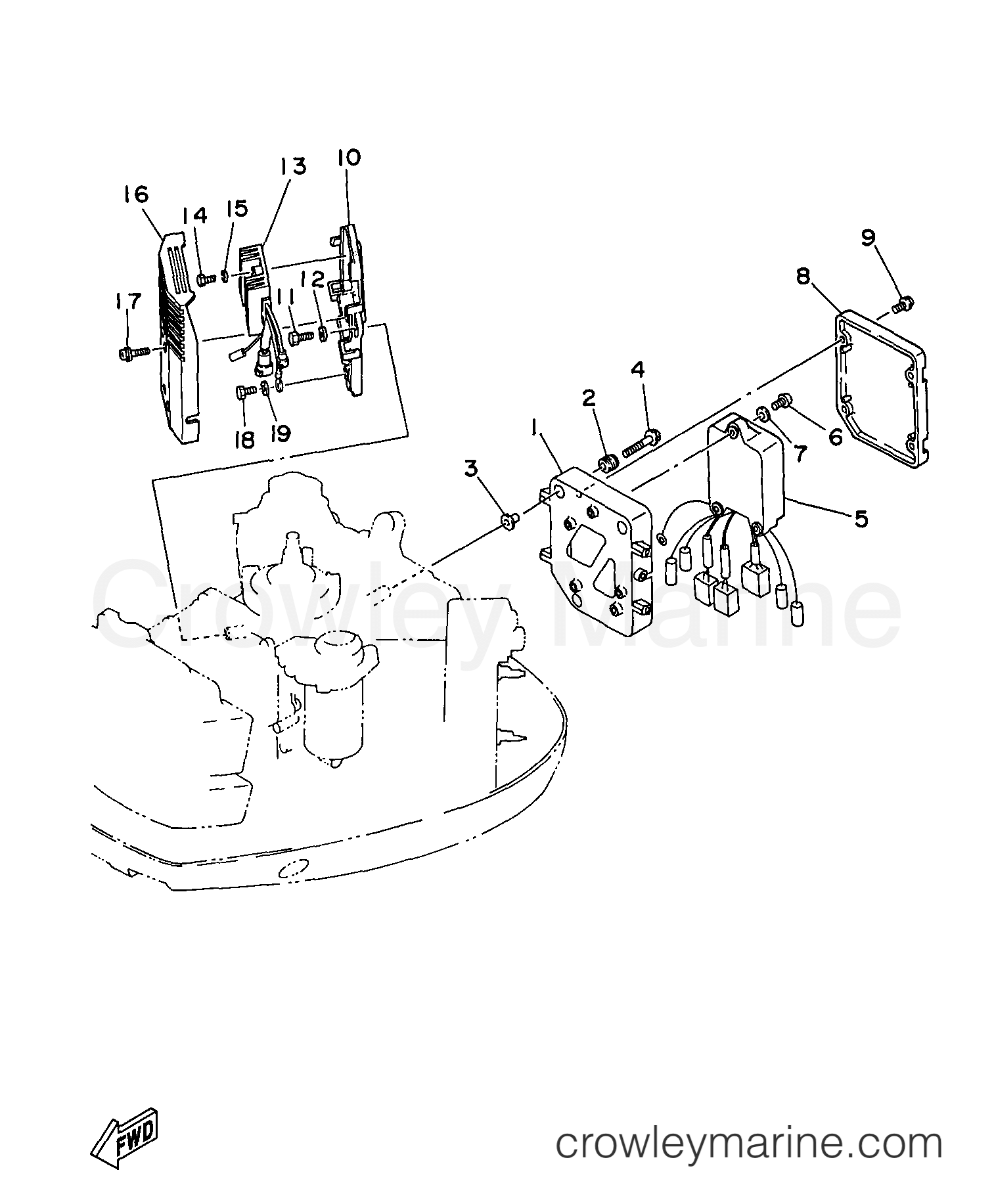

1997 Outboard 130hp - L130TXRV ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors L130TXRV - ELECTRICAL 1
Change View:
Bracket
1
Yamaha Motors
Bracket6N7-85542-01-1S
Required: 1
BRACKET
Supersedes: 6N7-85542-01-00
Cross Ship
Leaves in 2-5 days
$69.15
$58.78
You save $10.37
More details
C.D.I. UNIT Assembly
5
Yamaha Motors
C.D.I. UNIT Assembly6N7-85540-01-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$738.80
$627.98
You save $110.82
More details
Cover
8
Yamaha Motors
Cover6N7-85537-00-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$31.65
$26.90
You save $4.75
More details
Bracket
10
Yamaha Motors
Bracket6N7-81948-00-94
Required: 1
BRACKET
Cross Ship
Leaves in 2-5 days
$49.20
$41.82
You save $7.38
More details
BOLT, HEXAGON DEEP RECESS
11
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 3
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
BOLT
14
Yamaha Motors
BOLT97095-06025-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Cover
16
Yamaha Motors
Cover6R3-81942-00-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$42.75
$36.34
You save $6.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
