All diagrams for this model

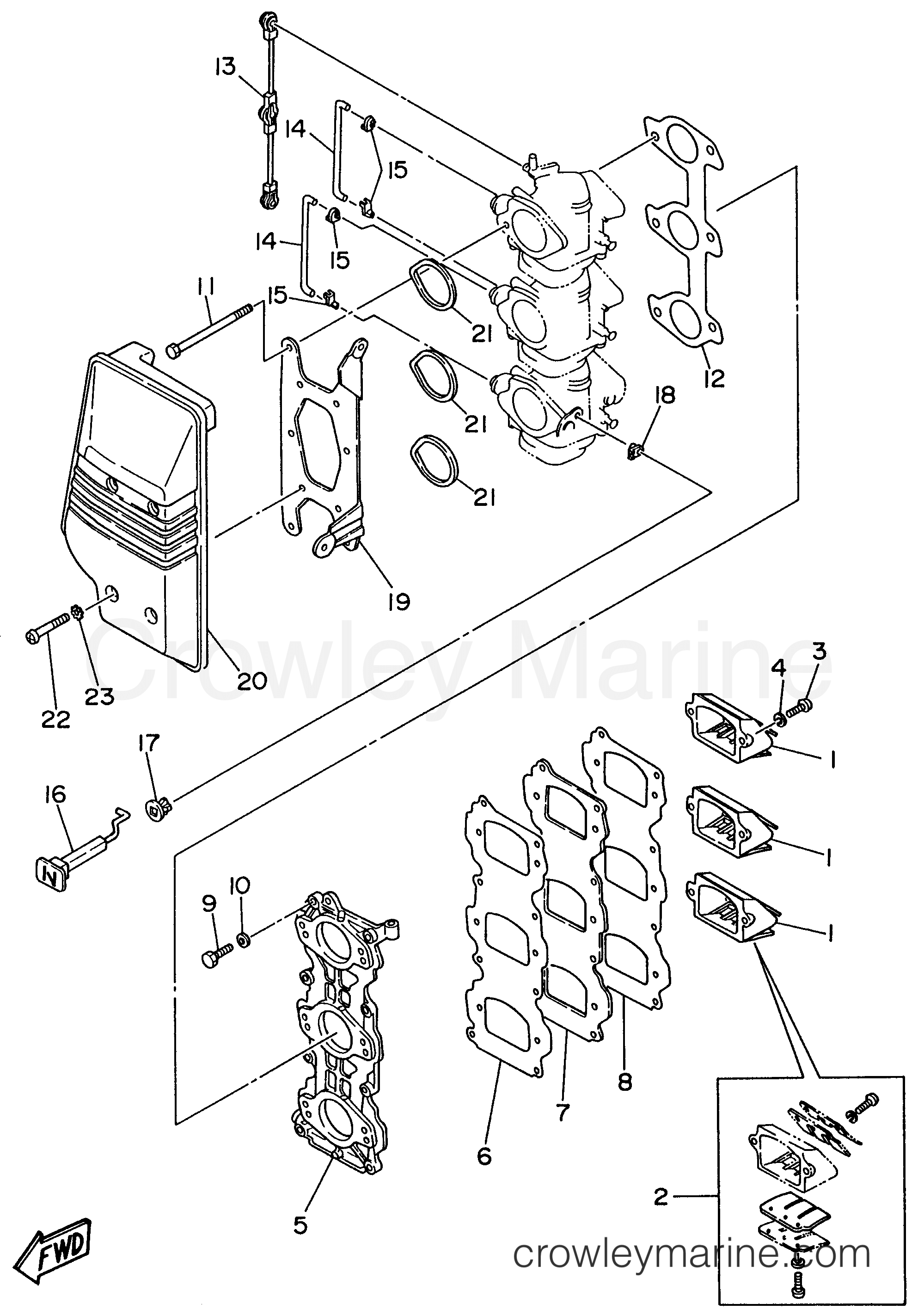

1997 Outboard 60hp - C60TLRV INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors C60TLRV - INTAKE
Change View:
MANIFOLD, INTAKE 1
5
Yamaha Motors
MANIFOLD, INTAKE 16H3-13641-04-00
Required: 1
MANIFOLD 1
Supersedes: 6H3-13641-03-94
Cross Ship
Leaves in 2-5 days
$150.15
$127.63
You save $22.52
More details
BOLT
9
Yamaha Motors
BOLT97095-06025-00
Required: 8
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
BOLT, HEXAGON DEEP RECESS
11
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06095-00
Required: 6
BOLT
Supersedes: 97095-06095-00
Cross Ship
Leaves in 2-5 days
$3.25
$2.60
You save $0.65
More details
Choke Rod 2
14
Yamaha Motors
Choke Rod 26H2-41257-00-00
Required: 2
ROD, CHOKE 2
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Stay
19
Yamaha Motors
Stay6B0-14413-01-00
Required: 1
STAY
Supersedes: 6B0-14413-00-00
Cross Ship
Leaves in 2-5 days
$32.10
$27.29
You save $4.82
More details
Pan Head Screw
22
Yamaha Motors
Pan Head Screw97885-06045-00
Required: 4
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$6.30
$5.04
You save $1.26
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
