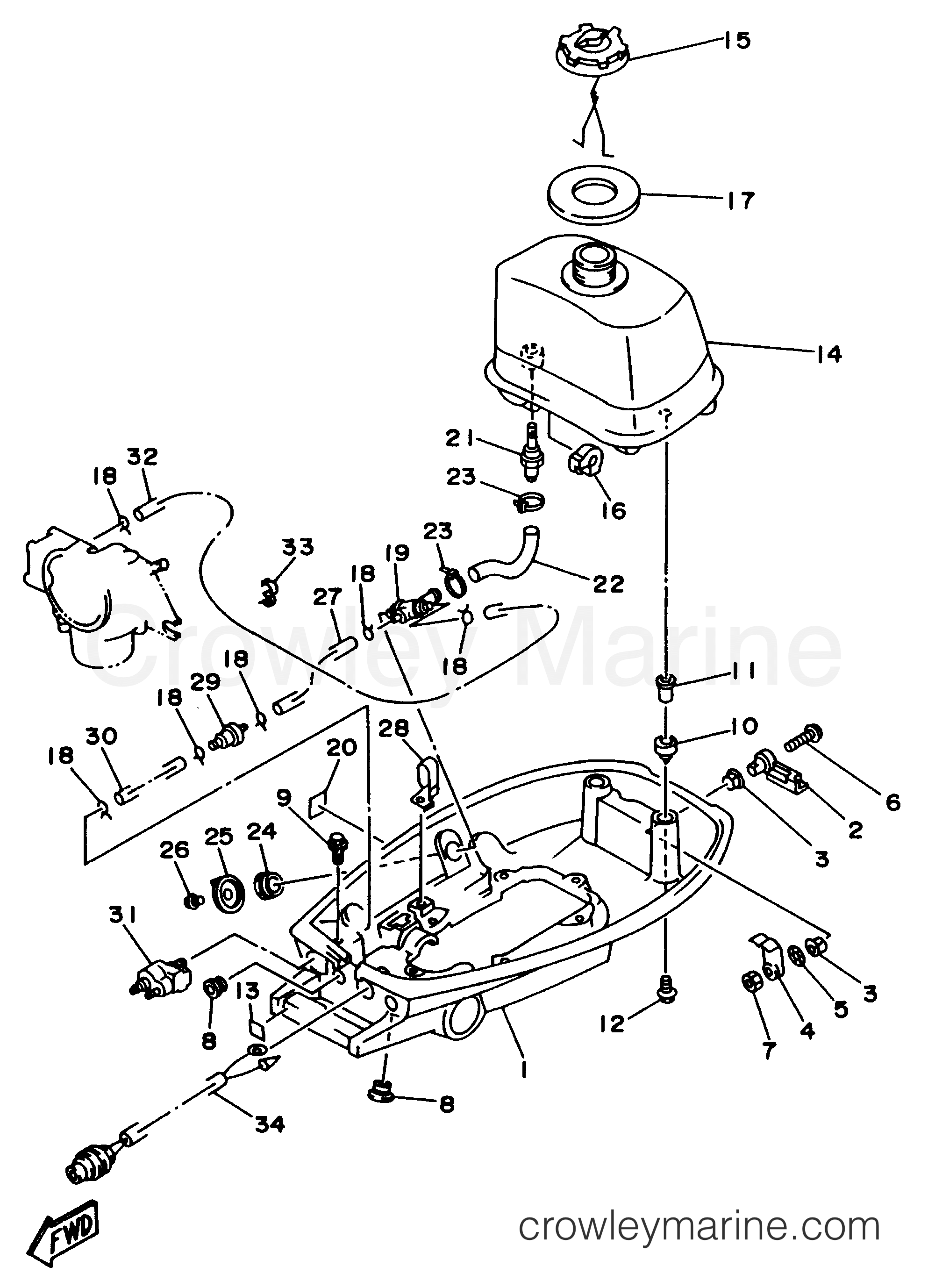

1997 Outboard 5hp - 5MSHV BOTTOM COWLING diagram
1
Yamaha Motors
COWLING, BOTTOM 16E0-42711-10-8D
Required: 1
COWLING, BOTTOM
Supersedes: 6E0-42711-10-4D
$177.69
You save $31.36
2
Yamaha Motors
Clamp Lever6E0-42815-00-8D
Required: 1
LEVER, CLAMP
Supersedes: 6E0-42815-00-4D
$11.13
You save $1.96
In stock
Only 3 remaining
$8.84
You save $1.56
4
Yamaha Motors
Clamp Lever6L2-42816-00-00
Required: 1
LEVER, CLAMP
Supersedes: 6E0-42816-00-00
In stock
Only 1 remaining
$7.69
You save $1.36
In stock
Only 4 remaining
$4.67
You save $0.82
6
Yamaha Motors
Pan Head Screw97885-06030-00
Required: 1
SCREW, PAN HEAD
In stock
Only 3 remaining
$4.29
You save $0.76
In stock
Only 4 remaining
$8.07
You save $1.42
In stock
5+ in stock
$5.44
You save $0.96
9
Yamaha Motors
DEEP FLANGE BOLT95D95-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06020-00
In stock
5+ in stock
$4.55
You save $0.80
10
Yamaha Motors
Locating Damper6E3-24182-00-00
Required: 2
DAMPER, LOCATING 2
$3.82
You save $0.68
10
Yamaha Motors
DAMPER, LOCATING 26E0-24182-01-00
Required: 2
DAMPER, LOCATING 2
Supersedes: 6E0-24182-00-00
In stock
Only 2 remaining
$4.55
You save $0.80
In stock
Only 2 remaining
$7.73
You save $1.37
12
Yamaha Motors
DEEP FLANGE BOLT95D95-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 95895-06025-00
$0.81
You save $0.14
$2.38
You save $0.42
14
Yamaha Motors
Fuel Tank Complete6E0-24110-01-4D
Required: 1
FUEL TANK COMP.
$225.50
You save $39.80
In stock
Only 3 remaining
$46.37
You save $8.18
16
Yamaha Motors
Locating Damper 16E0-24181-01-00
Required: 2
DAMPER, LOCATING 1
Supersedes: 6E0-24181-00-00
In stock
5+ in stock
$3.57
You save $0.63
17
Yamaha Motors
Cap Gasket6E0-24641-00-00
Required: 1
GASKET, CAP 1
$11.05
You save $1.95
17
Yamaha Motors
Cap Gasket6E3-24641-00-00
Required: 1
GASKET, CAP 1
$12.28
You save $2.17
In stock
5+ in stock
$8.07
You save $1.42
19
Yamaha Motors
FUEL COCK ASSY 16E0-24500-11-00
Required: 1
FUEL COCK ASSY 1
Supersedes: 6E0-24500-10-00
$49.60
You save $8.75
20
Yamaha Motors
Fuel Cock Emblem6E0-24591-10-00
Required: 1
EMBLEM, FUEL COCK
$3.74
You save $0.66
21
Yamaha Motors
Suction Pipe6E0-24335-00-00
Required: 1
PIPE, SUCTION 1
$27.24
You save $4.81
In stock
Only 1 remaining
$13.43
You save $2.37
In stock
Only 2 remaining
$7.22
You save $1.27
$27.16
You save $4.79
$9.27
You save $1.63
26
Yamaha Motors
Screw With Washer97980-04210-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-04M24-00
$5.18
You save $0.92
27
Yamaha Motors
Hose90445-094K7-00
Required: 1
HOSE (L125)
Supersedes: 90445-09M27-00
In stock
5+ in stock
$3.49
You save $0.62
$10.84
You save $1.91
In stock
5+ in stock
$16.23
You save $2.86
30
Yamaha Motors
Hose (L180)90445-09M00-00
Required: 1
HOSE (L43)
Supersedes: 90445-09057-00
$5.91
You save $1.04
31
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
Only 5 remaining
$29.92
You save $5.28
$5.61
You save $0.99
$3.44
You save $0.61
34
Yamaha Motors
Engine Stop Switch Assembly6A0-82550-01-00
Required: 1
ENGINE STOP SWITCH ASSY
Supersedes: 6E0-82550-01-00
In stock
Only 2 remaining
$26.65
You save $4.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
