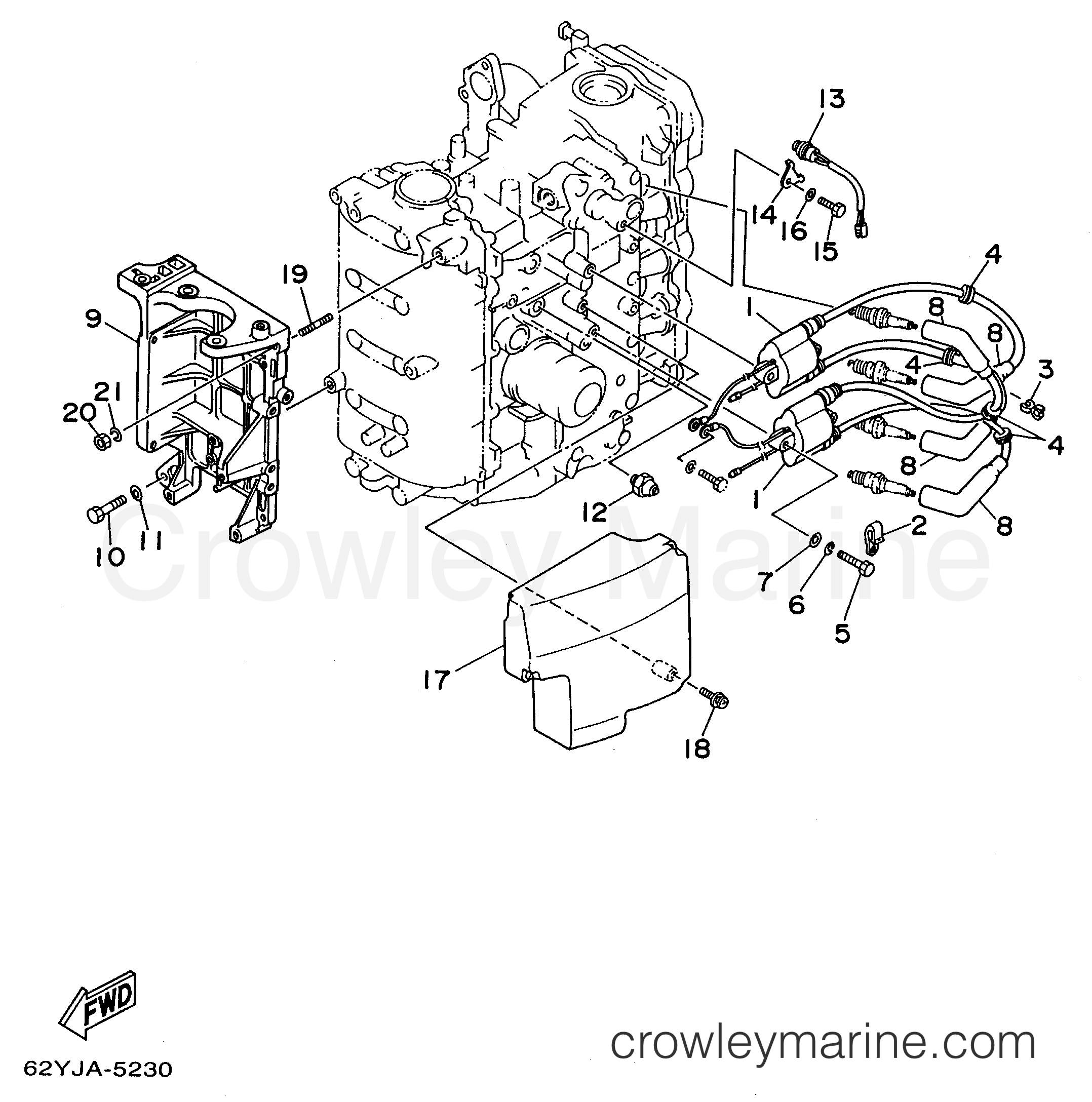

1996 Outboard 50hp - T50TLRU ELECTRICAL 1 diagram
1
Yamaha Motors
Ignition Coil Assembly62Y-85570-00-00
Required: 2
IGNITION COIL ASSY
In stock
Only 3 remaining
$97.92
You save $17.28
$4.08
You save $0.72
$4.68
You save $0.83
In stock
Only 2 remaining
$4.55
You save $0.80
5
Yamaha Motors
Bolt97080-06030-00
Required: 4
BOLT
Supersedes: 97095-06030-00
In stock
5+ in stock
$3.49
You save $0.62
6
Yamaha Motors
Spring Washer92995-06100-00
Required: 4
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
8
Yamaha Motors
Plug Cap Assembly6G8-82370-20-00
Required: 4
PLUG CAP ASSEMBLY
$67.15
You save $11.85
9
Yamaha Motors
Starting Motor Bracket62Y-81822-01-00
Required: 1
BRACKET, STARTING MOTOR
Supersedes: 62Y-81822-00-94
$158.82
You save $28.03
In stock
5+ in stock
$4.67
You save $0.82
11
Yamaha Motors
Plate Washer92990-08600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
12
Yamaha Motors
Oil Pressure Switch Assembly62Y-82504-10-00
Required: 1
OIL PRESSURE SWITCH ASSY
Supersedes: 62Y-82504-00-00
$73.74
You save $13.01
13
Yamaha Motors
Thermo Switch Assembly62Y-82560-01-00
Required: 1
THERMO SWITCH ASSEMBLY
Supersedes: 62Y-82560-00-00
$61.12
You save $10.79
$13.43
You save $2.37
$2.54
You save $0.45
16
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
$13.18
You save $2.33
18
Yamaha Motors
Screw With Washer90159-06M08-00
Required: 3
SCREW, WITH WASHER
In stock
5+ in stock
$6.71
You save $1.19
$5.82
You save $1.03
In stock
Only 1 remaining
$7.22
You save $1.27
21
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
$4.76
You save $0.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
