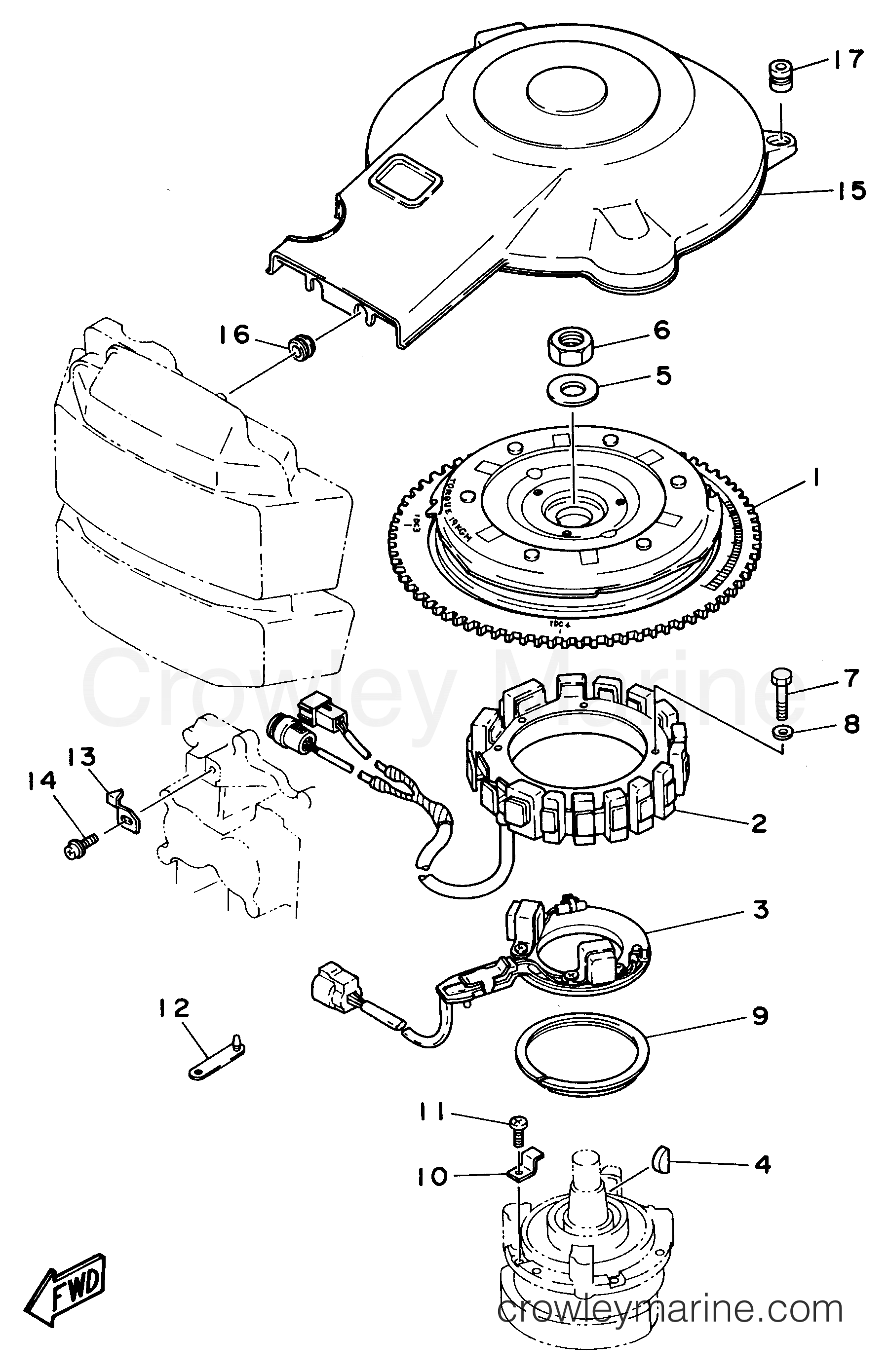

1996 Outboard 130hp - S130TXRU MAGNETO diagram
1
Yamaha Motors
Rotor Assembly6N7-85550-01-00
Required: 1
ROTOR ASSY
Supersedes: 6N7-85550-00-00
$1056.72
You save $186.48
$497.80
You save $87.85
3
Yamaha Motors
Pulser Coil6E5-85580-00-00
Required: 1
COIL, PULSER
Supersedes: 6N7-85580-00-00
In stock
Only 1 remaining
$363.59
You save $64.16
4
Yamaha Motors
Woodruff Key90280-05049-00
Required: 1
KEY, WOODRUFF
In stock
Only 2 remaining
$7.61
You save $1.34
5
Yamaha Motors
Plate Washer90201-21M18-00
Required: 1
WASHER, PLATE
$6.21
You save $1.10
$9.77
You save $1.72
7
Yamaha Motors
Bolt97013-06065-00
Required: 4
BOLT, HEXAGON
Supersedes: 97313-06065-00
$3.61
You save $0.64
8
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
9
Yamaha Motors
Magneto Base Retainer688-41611-00-00
Required: 1
RETAINER, MAGNETO BASE
$19.38
You save $3.42
10
Yamaha Motors
Magneto Base Retainer688-41612-00-00
Required: 4
RETAINER, MAGNETO BASE
$7.95
You save $1.40
11
Yamaha Motors
Pan Head Screw97880-06018-00
Required: 4
SCREW, PAN HEAD
$3.91
You save $0.69
12
Yamaha Motors
Clamp90464-12158-00
Required: 1
CLAMP
Supersedes: 90464-12M00-00
$2.72
You save $0.48
$20.02
You save $3.53
14
Yamaha Motors
Screw With Washer97985-06210-00
Required: 1
SCREW, WITH WASHER
In stock
Only 2 remaining
$2.72
You save $0.48
15
Yamaha Motors
Flywheel Cover6N7-81337-00-00
Required: 1
COVER, FLYWHEEL
In stock
Only 1 remaining
$48.45
You save $8.55
In stock
Only 2 remaining
$2.72
You save $0.48
17
Yamaha Motors
DAMPER, IGNITION COIL663-82317-02-00
Required: 2
DAMPER, IGNITION COIL
Supersedes: 663-82317-01-00
In stock
5+ in stock
$6.08
You save $1.07
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
