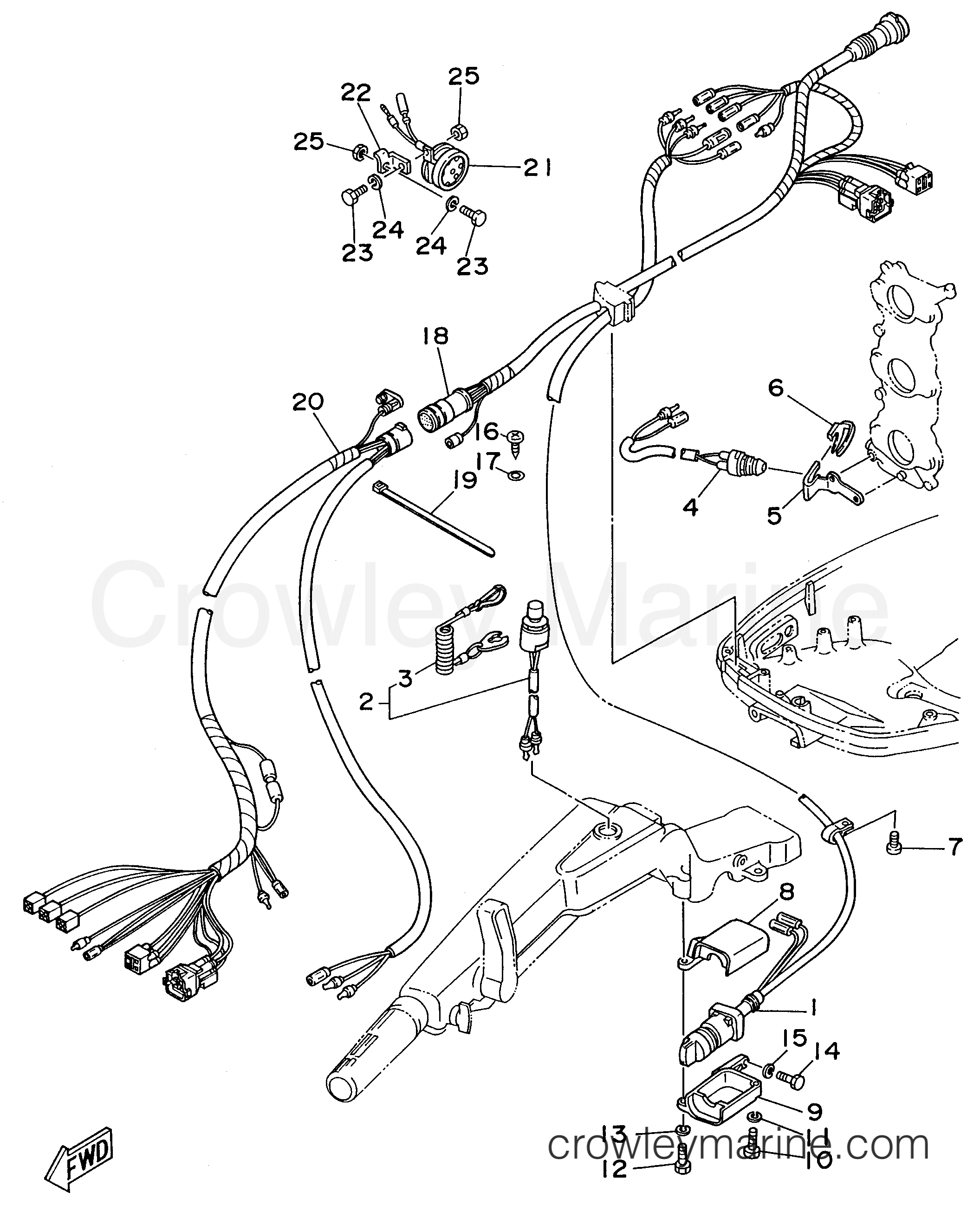

1996 Outboard 60hp - P60TLHU ELECTRICAL 2 diagram
1
Yamaha Motors
Main Switch Assembly TE, TP67G-82510-31-00
Required: 1
MAIN SWITCH ASSY
Supersedes: 6H5-82510-00-00
$164.13
You save $28.97
2
Yamaha Motors
Obsolete Yamaha Part699-82575-09-00
Required: 1
ENGINE STOP SWITCH ASSY
Supersedes: 63D-82575-00-00
$77.95
You save $13.75
3
Yamaha Motors
Stop Switch Lanyard682-82556-00-00
Required: 1
.LANYARD, STOP SWITCH
In stock
5+ in stock
$6.56
You save $1.64
4
Yamaha Motors
Obsolete Yamaha Part688-82540-12-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 6H3-82540-00-00
In stock
Only 5 remaining
$38.36
You save $9.59
5
Yamaha Motors
Neutral Switch Stay6H3-82554-00-00
Required: 1
STAY, NEUTRAL SWITCH
$10.67
You save $1.88
6
Yamaha Motors
Main Switch Damper663-82555-01-00
Required: 1
DAMPER, MAIN SWITCH 1
$10.76
You save $2.69
7
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
$2.85
You save $0.50
8
Yamaha Motors
COVER,MAIN SWITCH63D-8252E-01-8D
Required: 1
COVER, MAIN SWITCH
Supersedes: 63D-8252E-01-4D
$18.53
You save $3.27
9
Yamaha Motors
Main Switch Cover63D-8252F-01-8D
Required: 1
COVER, MAIN SWITCH 2
Supersedes: 63D-8252F-01-4D
$18.53
You save $3.27
10
Yamaha Motors
Pan Head Screw97885-06025-00
Required: 1
SCREW, PAN HEAD
In stock
Only 3 remaining
$4.29
You save $0.76
11
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
$2.85
You save $0.50
13
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
14
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.60
You save $0.90
15
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
16
Yamaha Motors
Tapping Screw90167-06M00-00
Required: 2
SCREW, TAPPING
$4.04
You save $0.71
17
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
.WASHER, PLAIN
$3.60
You save $-2.60
18
Yamaha Motors
Wire Harness Extension6H2-82586-01-00
Required: 1
EXTENSION, WIRE HARNESS
$398.78
You save $70.37
19
Yamaha Motors
Clamp90465-13M39-00
Required: 1
CLAMP
Supersedes: 90465-13M36-00
In stock
Only 3 remaining
$4.40
You save $1.10
$169.11
You save $29.84
-50%
21
Yamaha Motors
Buzzer688-83383-12-00
Required: 1
.BUZZER
Supersedes: 688-83383-11-00
In stock
Only 1 remaining
$31.43
You save $31.43
$10.33
You save $1.82
-50%
In stock
Only 1 remaining
$0.85
You save $0.85
24
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
.WASHER, SPRING
In stock
Only 5 remaining
$0.28
You save $0.07
In stock
Only 5 remaining
$7.59
You save $1.90
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
