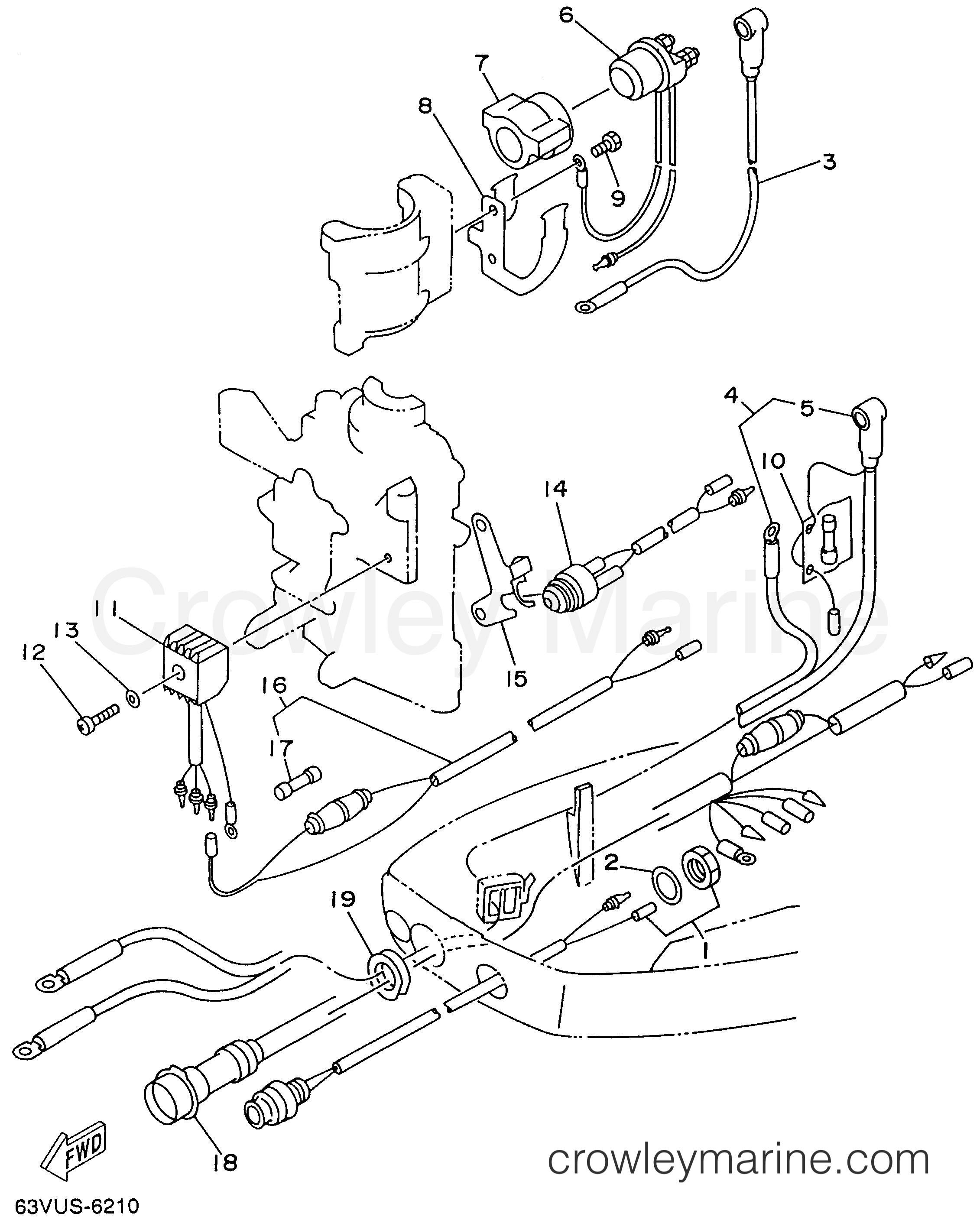

1996 Outboard 9.9hp - 9.9ELRU ELECTRICAL 2 (EH ER) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 9.9ELRU - ELECTRICAL 2 (EH ER)
Change View:
Plate Washer
2
Yamaha Motors
Plate Washer90201-16M36-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$7.20
$6.12
You save $1.08
More details
WIRE, LEAD
3
Yamaha Motors
WIRE, LEAD689-82531-03-00
Required: 1
WIRE, LEAD
Supersedes: 6E7-82117-00-00
Cross Ship
Leaves in 2-5 days
$40.05
$34.04
You save $6.01
More details
BATTERY CABLE (RL45)
4
Yamaha Motors
BATTERY CABLE (RL45)6E7-82105-12-00
Required: 1
BATTERY CABLE
Supersedes: 6E7-82105-11-00
Cross Ship
Leaves in 2-5 days
$124.65
$105.95
You save $18.70
More details
HOLDER, RELAY
7
Yamaha Motors
HOLDER, RELAY6G1-81952-01-00
Required: 1
HOLDER, RELAY
Supersedes: 6G1-81952-00-00
Cross Ship
Leaves in 2-5 days
$14.20
$12.07
You save $2.13
More details
Fuse (12V/10A)
10
Yamaha Motors
Fuse (12V/10A)682-82151-01-00
Required: 1
FUSE (12V-20A)
Supersedes: 682-82151-00-00
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
Obsolete Yamaha Part
11
Yamaha Motors
Obsolete Yamaha Part664-81970-62-00
Required: 1
RECTIFIER ASSEMBLY
Supersedes: 664-81970-61-00
Cross Ship
Leaves in 2-5 days
$91.50
$77.77
You save $13.73
More details
Neutral Switch Stay
15
Yamaha Motors
Neutral Switch Stay63V-82554-00-00
Required: 1
STAY, NEUTRAL SWITCH
Cross Ship
Leaves in 2-5 days
$14.35
$12.20
You save $2.15
More details
Lead Wire
16
Yamaha Motors
Lead Wire63V-82541-00-00
Required: 1
WIRE, LEAD
Cross Ship
Leaves in 2-5 days
$41.10
$34.94
You save $6.16
More details
Fuse (12V/10A)
17
Yamaha Motors
Fuse (12V/10A)682-82151-01-00
Required: 1
.FUSE (12V-20A)
Supersedes: 682-82151-00-00
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
Wire Harness Assembly
18
Yamaha Motors
Wire Harness Assembly63V-82590-A0-00
Required: 1
WIRE HARNESS ASSEMBLY
Cross Ship
Leaves in 2-5 days
$81.85
$69.57
You save $12.28
More details
Grommet
19
Yamaha Motors
Grommet682-42724-50-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$13.00
$11.05
You save $1.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
