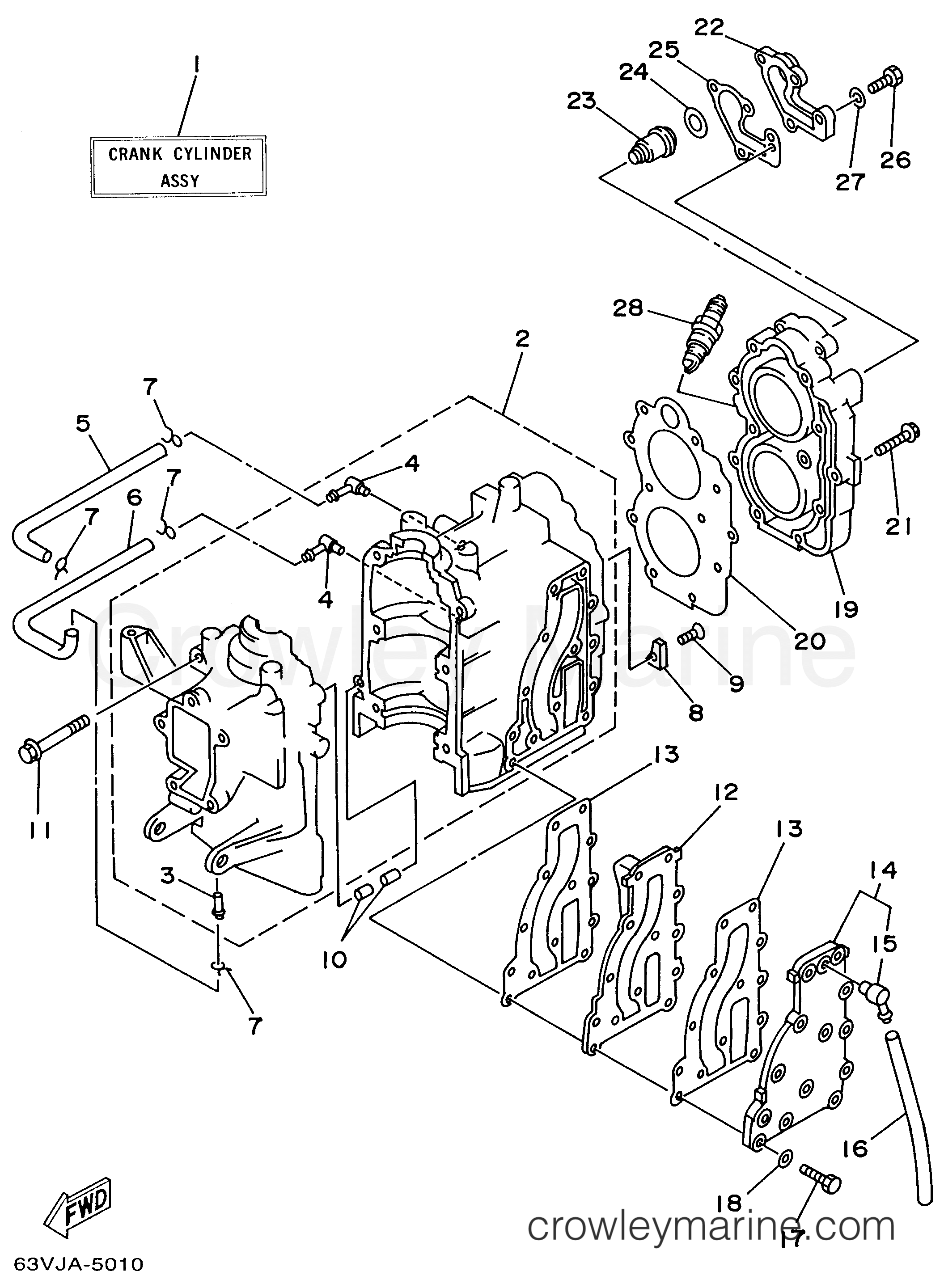

1996 Outboard 9.9hp - 9.9ELRU CYLINDER CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 9.9ELRU - CYLINDER CRANKCASE
Change View:
Obsolete Yamaha Part
1
Yamaha Motors
Obsolete Yamaha Part63V-W0090-01-4D
Required: 1
CRANK CYLINDER ASSEMBLY (REF. # 2~27 & CRANKSHAFT-PIST)
Supersedes: 63V-W0090-00-4D
Cross Ship
Leaves in 2-5 days
$1506.65
$1280.65
You save $226.00
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly63V-15100-09-00
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 63V-15100-00-94
Cross Ship
Leaves in 2-5 days
$681.35
$579.15
You save $102.20
More details
Joint Pipe
3
Yamaha Motors
Joint Pipe624-14485-00-00
Required: 1
.PIPE, JOINT
Cross Ship
Leaves in 2-5 days
$8.10
$6.88
You save $1.21
More details
Exhaust Inner Cover
12
Yamaha Motors
Exhaust Inner Cover63V-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 63V-41111-00-9M
Cross Ship
Leaves in 2-5 days
$24.75
$21.04
You save $3.71
More details
Cylinder Head
19
Yamaha Motors
Cylinder Head6E7-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 6E7-11111-01-94
Cross Ship
Leaves in 2-5 days
$126.40
$107.44
You save $18.96
More details
Flange Bolt
21
Yamaha Motors
Flange Bolt90105-07M05-00
Required: 11
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
Thermostat Cover
22
Yamaha Motors
Thermostat Cover682-12413-00-1S
Required: 1
COVER, THERMOSTAT
Supersedes: 682-12413-00-9M
Cross Ship
Leaves in 2-5 days
$13.60
$11.56
You save $2.04
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
