1995 Outboard 50hp - F50TLHT CYLINDER CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

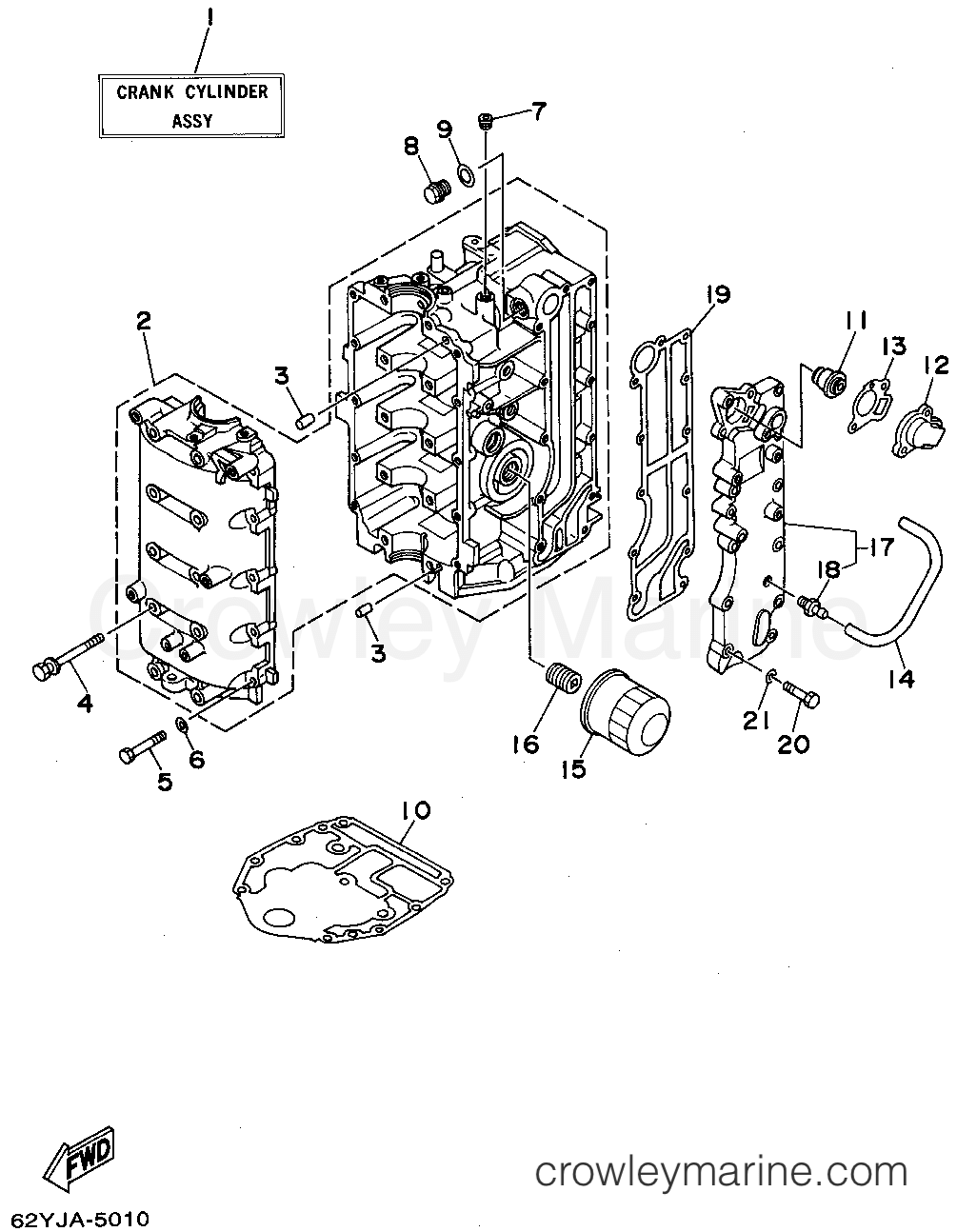

Yamaha Motors F50TLHT - CYLINDER CRANKCASE
Change View:
CRANK CYLINDER ASSEMBLY (REF. #1~9, 11~21, CYLINDER - C)
1
Yamaha Motors
CRANK CYLINDER ASSEMBLY (REF. #1~9, 11~21, CYLINDER - C)62Y-W0090-00-4D
Required: 1
CRANK CYLINDER ASSEMBLY (REF. #1~9, 11~21, CYLINDER - C)
Cross Ship
Leaves in 2-5 days
$3191.99
$2713.19
You save $478.80
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly62Y-15100-03-00
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 62Y-15100-00-94
Cross Ship
Leaves in 2-5 days
$2231.90
$1897.12
You save $334.79
More details
Dowel Pin
3
Yamaha Motors
Dowel Pin91808-12024-00
Required: 2
PIN, DOWEL
Supersedes: 99510-08012-00
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
Taper Screw Plug
7
Yamaha Motors
Taper Screw Plug90344-51M01-00
Required: 1
PLUG, TAPER SCREW
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Thermostat
11
Yamaha Motors
Thermostat6G8-12411-03-00
Required: 1
THERMOSTAT
Supersedes: 6G8-12411-02-00
Cross Ship
Leaves in 2-5 days
$45.60
$38.76
You save $6.84
More details
Thermostat Cover
12
Yamaha Motors
Thermostat Cover6H3-12413-00-9M
Required: 1
COVER, THERMOSTAT
Cross Ship
Leaves in 2-5 days
$23.95
$20.36
You save $3.59
More details
ELEMENT ASSY, OIL CLEANER
15
Yamaha Motors
ELEMENT ASSY, OIL CLEANER3FV-13440-31-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Supersedes: 3FV-13440-00-00
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
Union Bolt
16
Yamaha Motors
Union Bolt90401-20M00-00
Required: 1
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$15.80
$13.43
You save $2.37
More details
Exhaust Outer Cover
17
Yamaha Motors
Exhaust Outer Cover62Y-41113-00-9M
Required: 1
OUTER COVER, EXHAUST
Cross Ship
Leaves in 2-5 days
$109.85
$93.37
You save $16.48
More details
Exhaust Outer Cover Gasket
19
Yamaha Motors
Exhaust Outer Cover Gasket6C5-41114-00-00
Required: 1
GASKET, EXHAUST OUTER COVER
Supersedes: 62Y-41114-00-00
Cross Ship
Leaves in 2-5 days
$34.95
$29.71
You save $5.24
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
